Front Blower Motor Speed Control Module C271

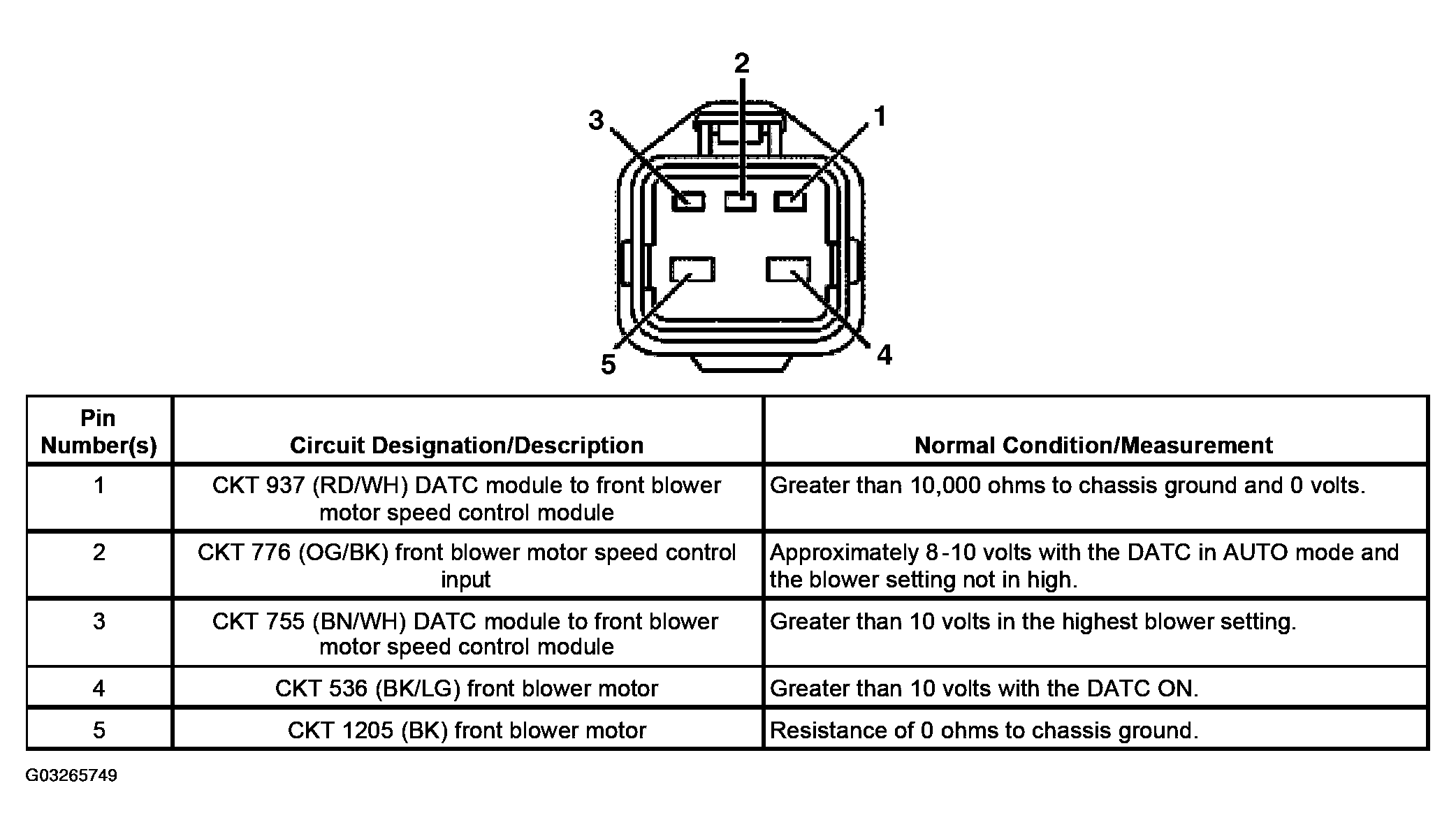

Fig 1: Identifying Front Blower Motor Speed Control Module C271 Connector Pins
G03265749Courtesy of FORD MOTOR CO.
