Climate Control Assembly: Notes
- Remove the instrument panel center cover. For additional information, refer to BODY SYSTEM - INTERIOR .

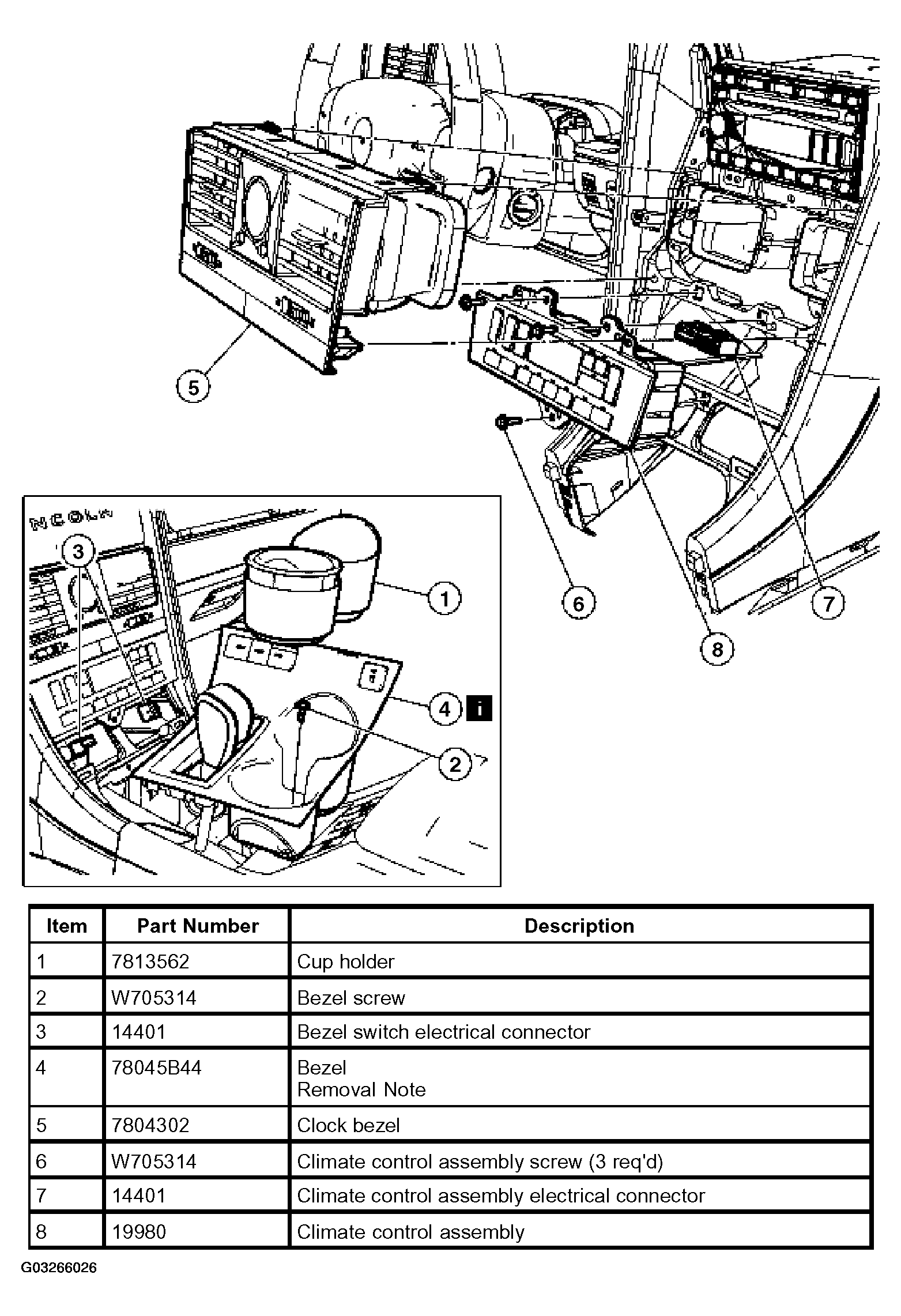

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
