In-Vehicle Temperature Sensor

  1. Remove the parts in the order indicated in the following illustration and table.

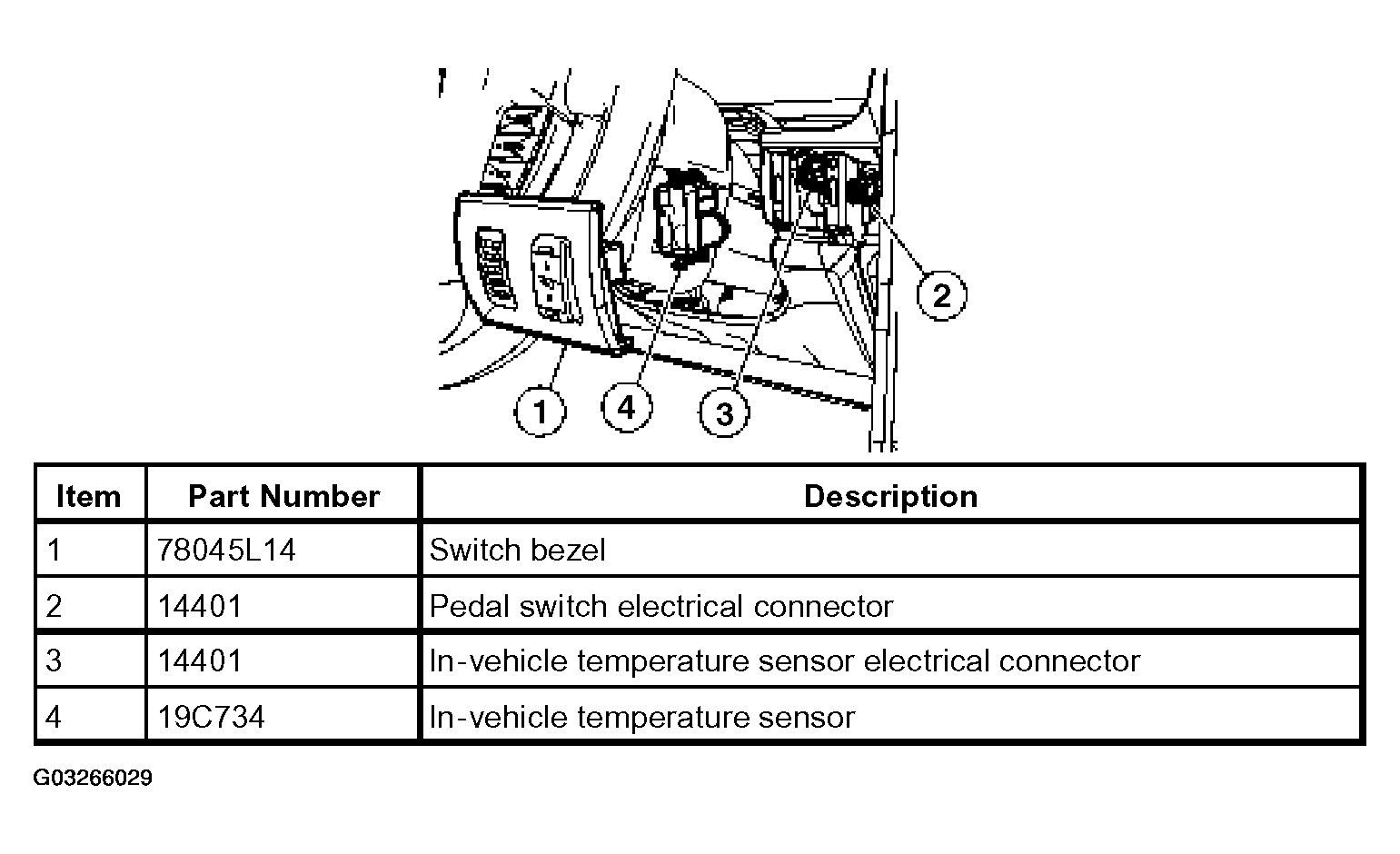

    Fig 1: Removal Sequence Of In-Vehicle Temperature Sensor
    G03266029Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
