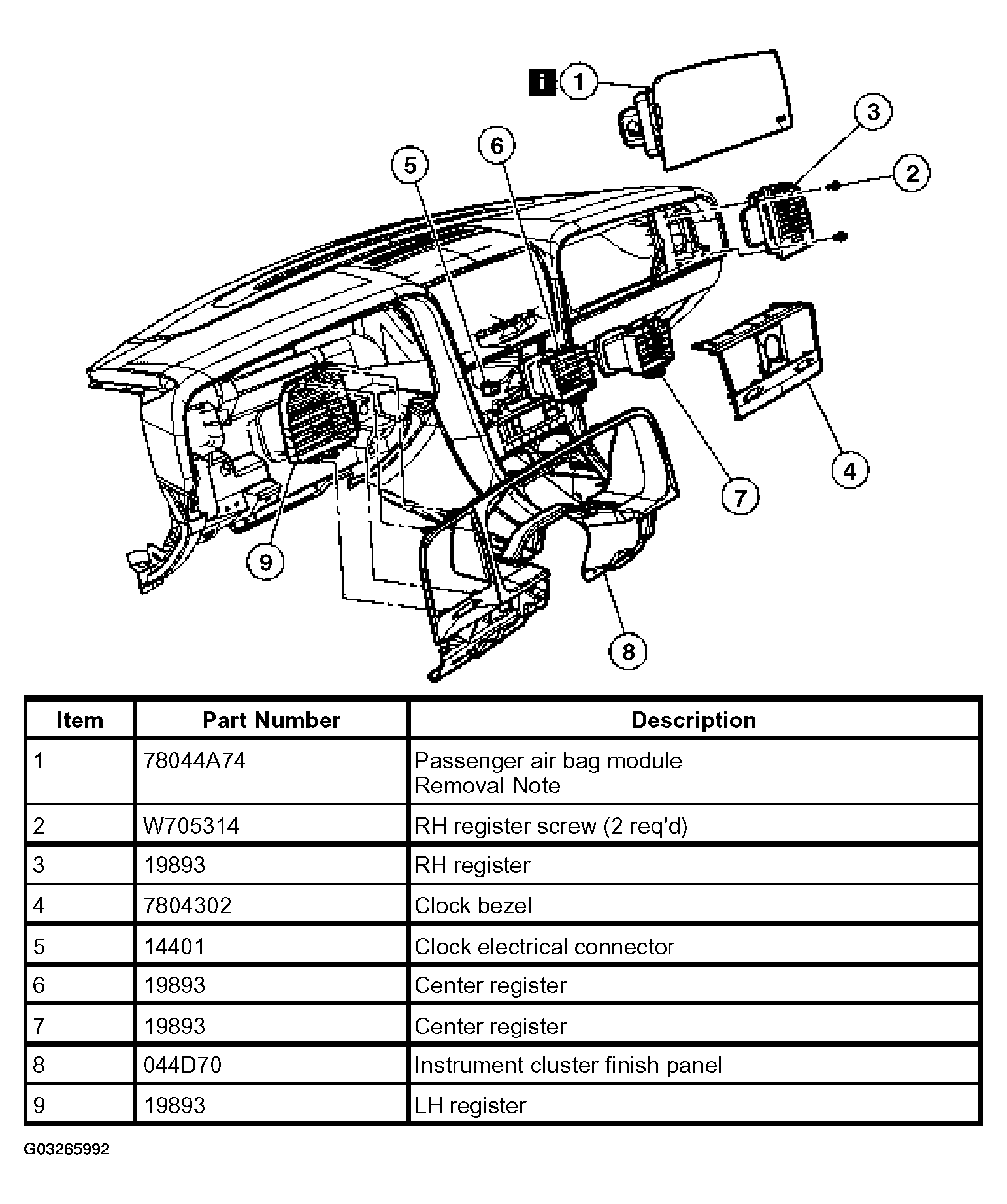

Remove the parts in the order indicated in the following illustration and table.To remove individual parts, only carry out the listed steps:
INSTRUMENT PANEL REGISTERS REMOVAL STEPS
| Part |
Steps |
| RH Register |
1-3 |
| Center Registers |
4-7 |
| LH Register |
8-9 |
Courtesy of FORD MOTOR CO.
