Ignition Switch C250
Ignition Switch C250

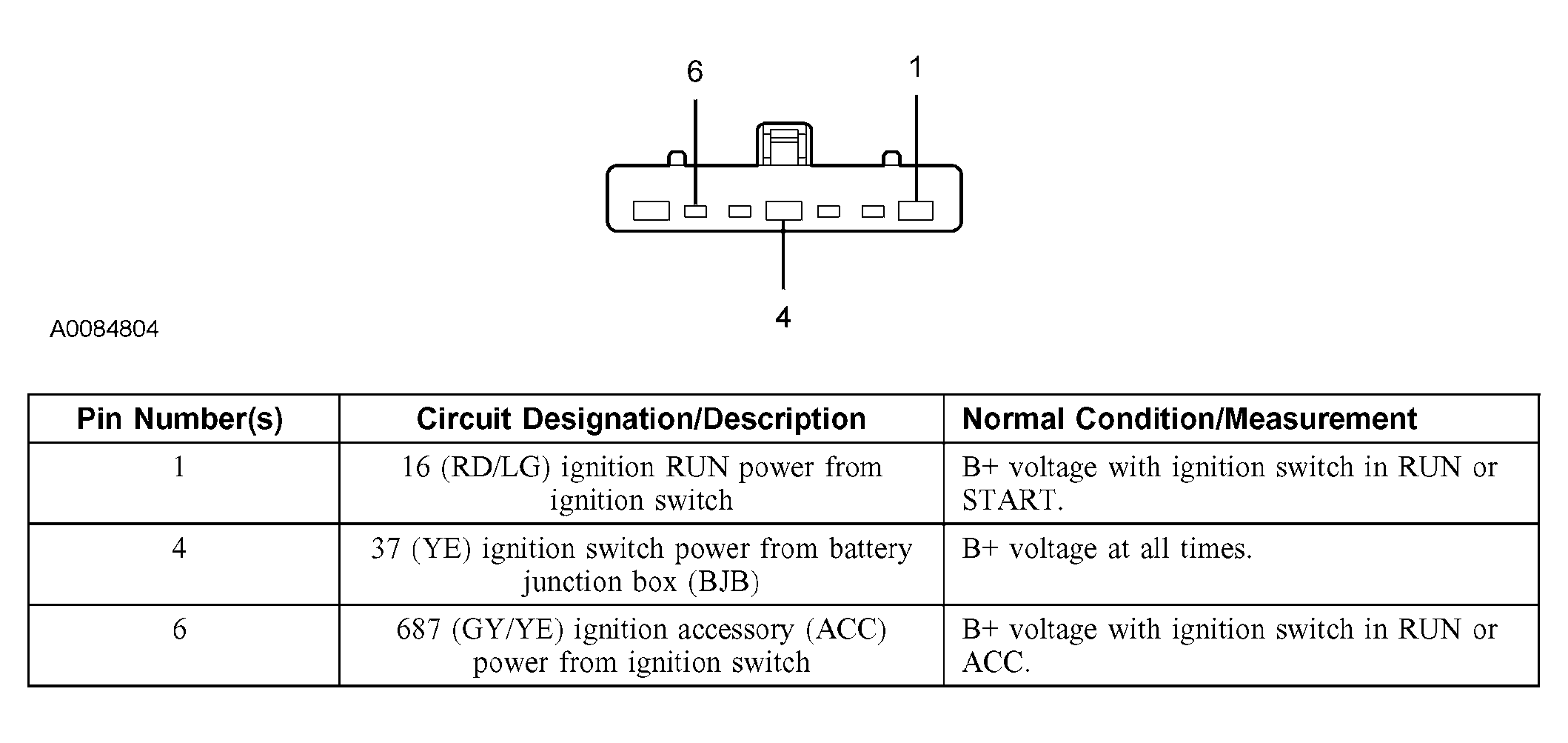

Fig 1: Identifying Ignition Switch C250 Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
