Variable Assist Power Steering (VAPS) Module C2231b
Variable Assist Power Steering (VAPS) Module C2231b

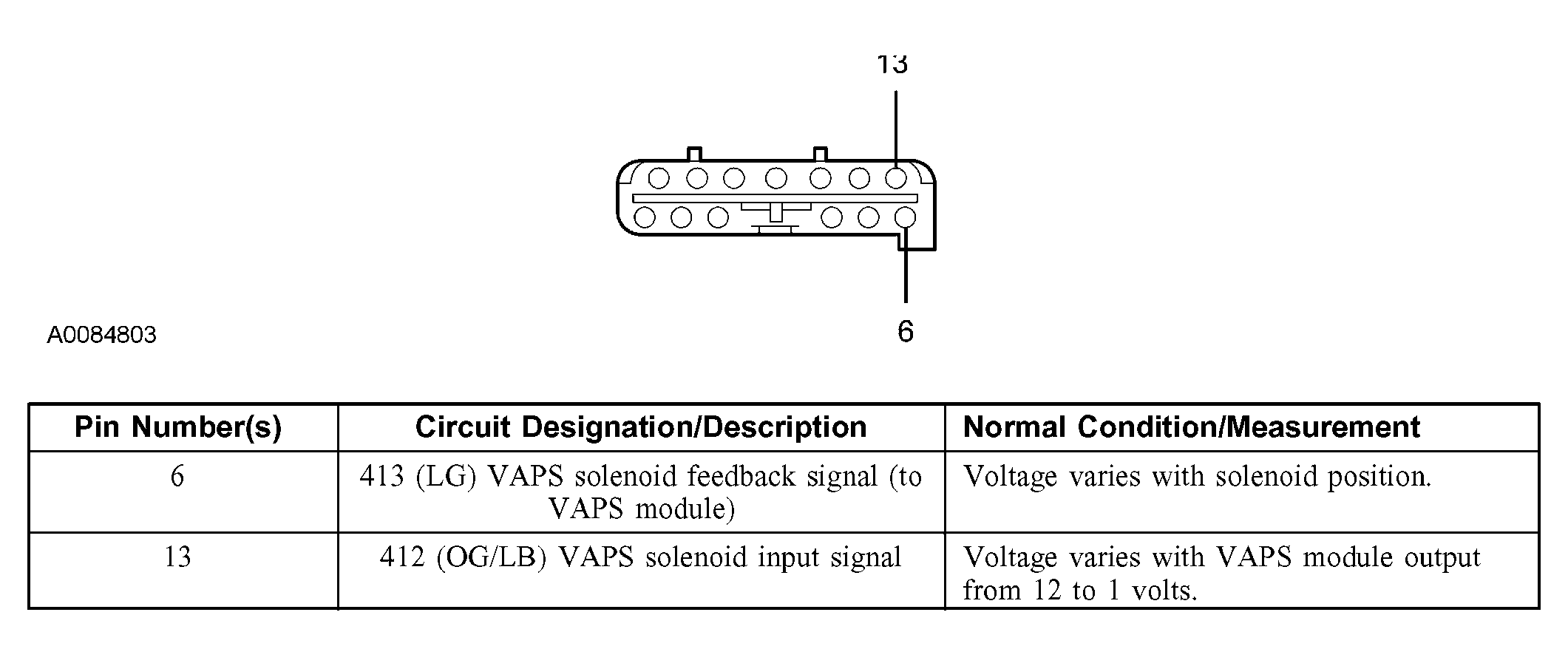

Fig 1: Identifying Variable Assist Power Steering Module C2231b Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
