Shock Absorber And Spring Assembly - Rear: Notes
- Remove the wheel and tire assembly. For additional information, refer to WHEEL AND TIRE - REAR .

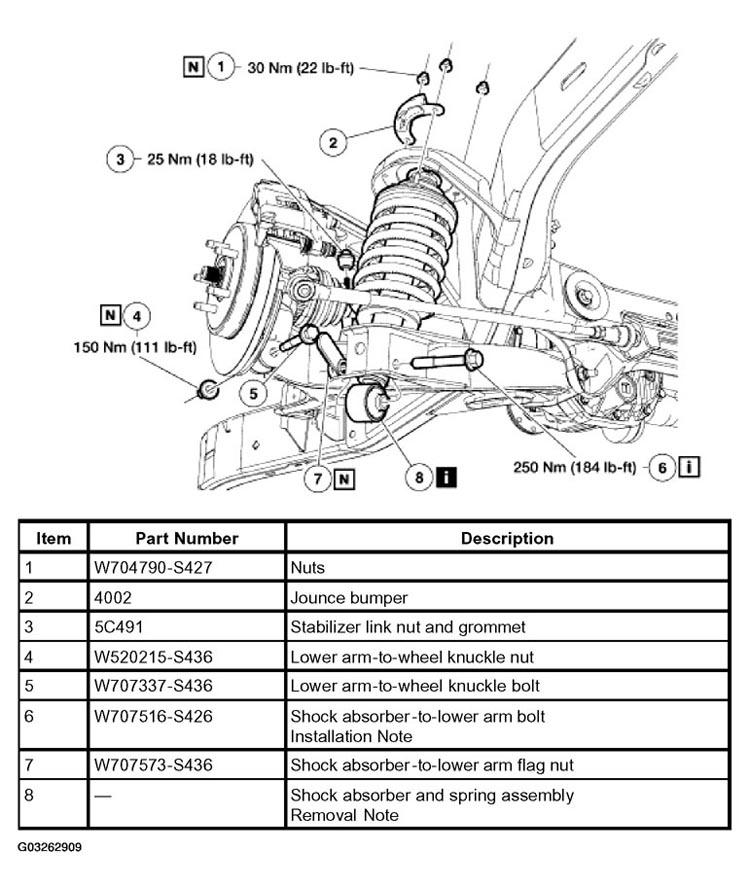

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
