Powertrain Control Module (PCM)

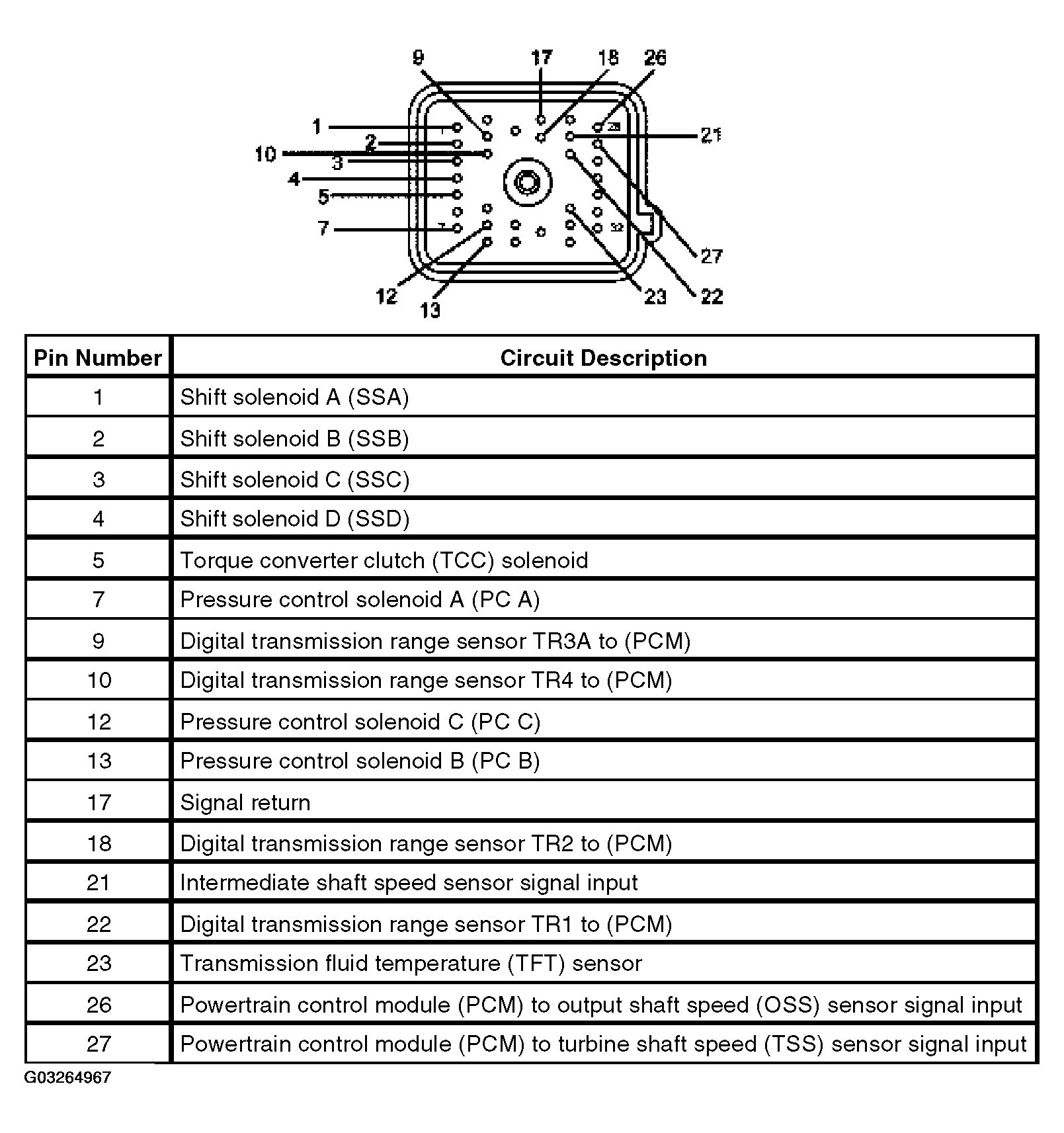

Fig 1: Identifying Powertrain Control Module (PCM)
G03264967Courtesy of FORD MOTOR CO.
