Fluid Pump: Assembly

  1. Assemble the parts in the order indicated in the following illustration and table.

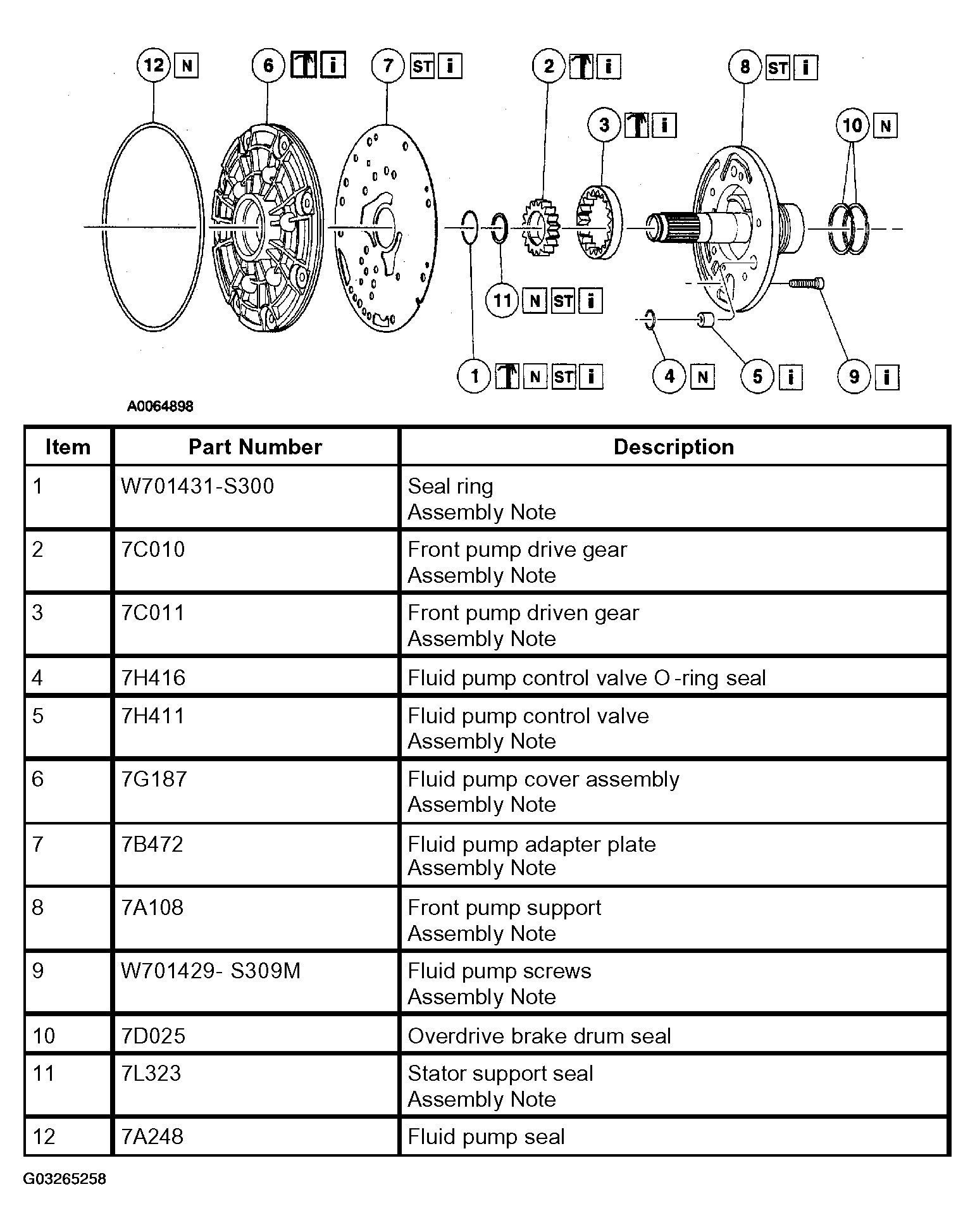

    Fig 1: Installing Fluid Pump Components
    G03265258Courtesy of FORD MOTOR CO.
