Item 9: Fluid Pump Screws Assembly Note

Loosely install the fluid pump housing screws in their correct locations and remove the special tools. Install the two remaining screws.

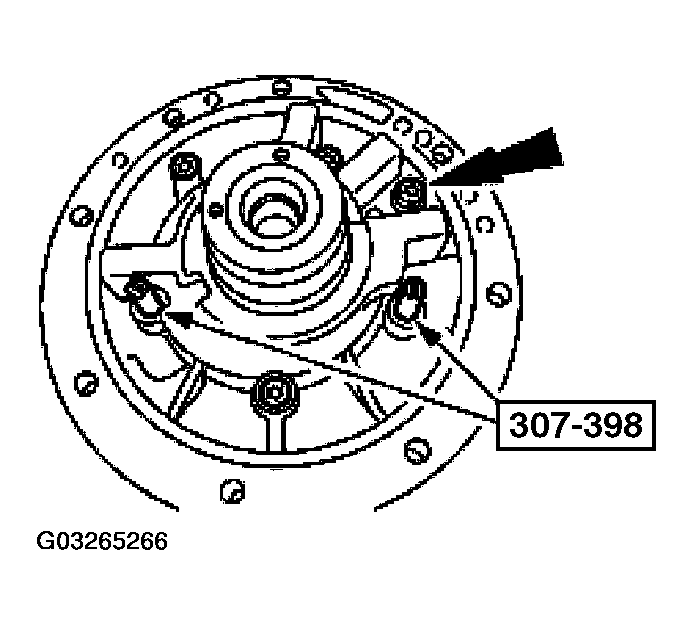

Fig 1: Installing Two Remaining Screws
Courtesy of FORD MOTOR CO.
Tighten all the fluid pump screws in a star pattern.

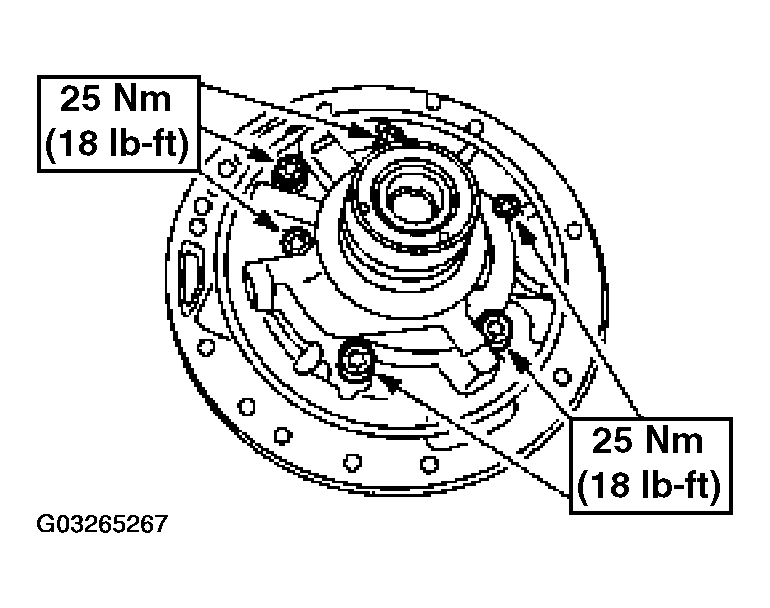

Fig 2: Tightening All Fluid Pump Screws In Star Pattern
Courtesy of FORD MOTOR CO.
