Item 1: Retaining Ring Disassembly Note

    NOTE: The overdrive one-way clutch is serviced with the center shaft assembly.

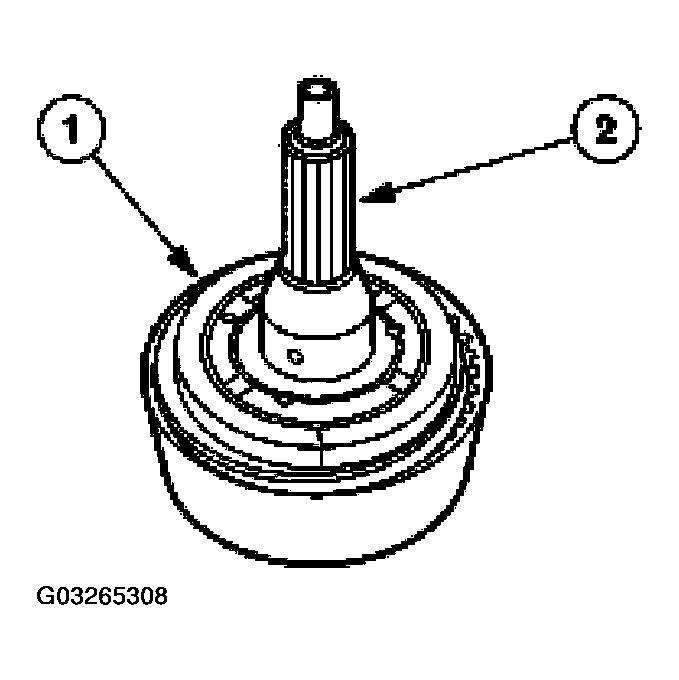

    Fig 1: Removing Overdrive Center Shaft Retaining Ring
    G03265308Courtesy of FORD MOTOR CO.
  1. Remove the center shaft from the overdrive ring gear.
    1. Remove the overdrive center shaft retaining ring.
    2. While rotating counterclockwise remove the center shaft from the ring gear.
