Item 12: Reverse Servo Screws Installation Note

  1. Install the reverse servo. Tighten the screws in the sequence shown.

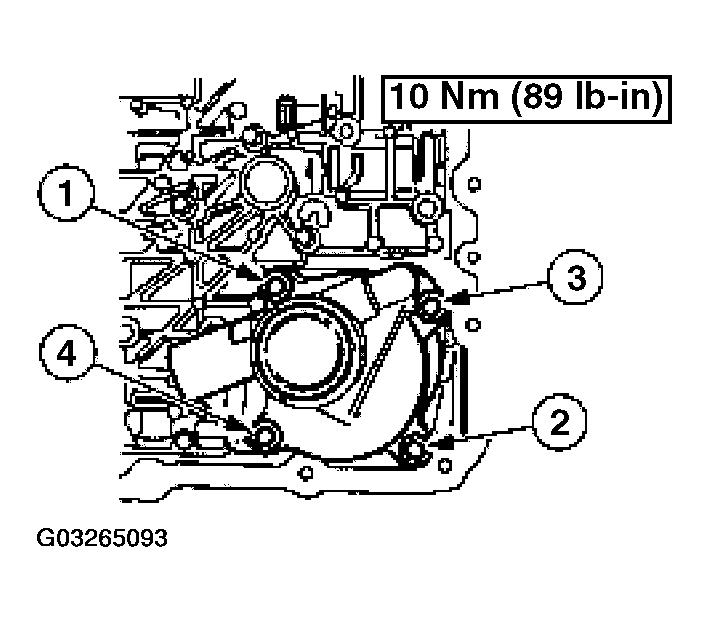

    Fig 1: Installing Reverse Servo
    G03265093Courtesy of FORD MOTOR CO.
