Item 4: Panel Assembly Removal Note
Item 4: Panel Assembly Removal Note

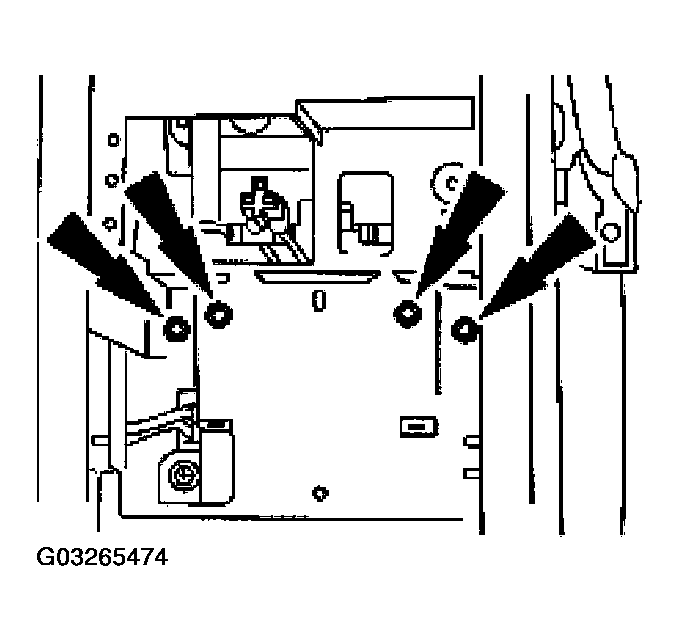

Remove the push pins.
Fig 1: Removing Push Pins
Courtesy of FORD MOTOR CO.
Remove the panel by prying rearward at the top of the panel.
Fig 2: Removing Panel By Prying Rearward At Top Of Panel
Courtesy of FORD MOTOR CO.
