Removal And Installation: Liftgate: Notes

  1. Remove the upper headliner trim panel.
    Fig 1: Removing Upper Headliner Trim Panel
    G03263862Courtesy of FORD MOTOR CO.
  2. Remove the parts in the order indicated in the following illustration and table.

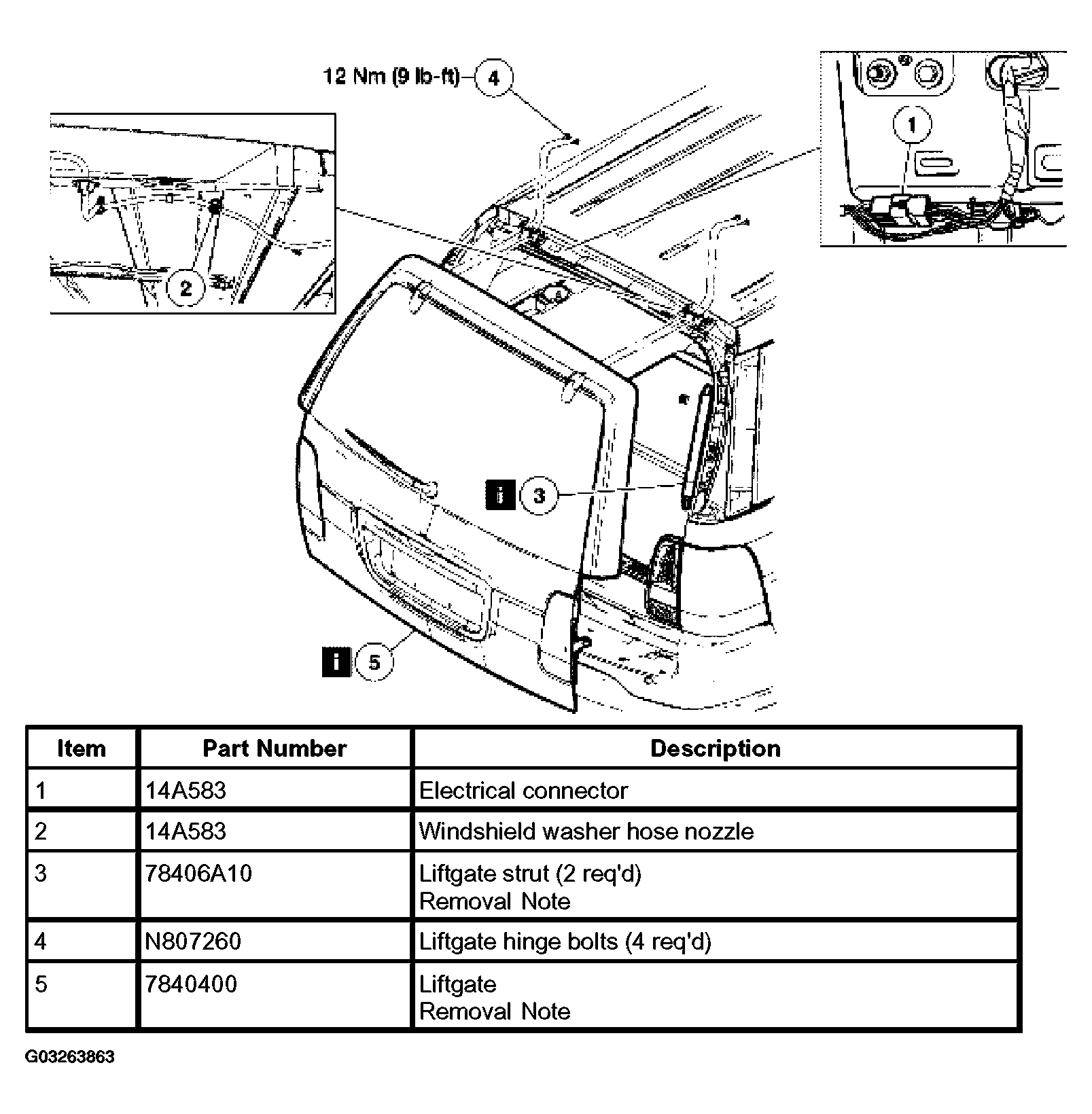

    Fig 2: Removing Liftgate
    G03263863Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
