Windshield Wiper: Notes

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

WINDSHIELD WIPER COMPONENT REMOVAL STEPS

Part	Steps
Windshield Wiper Arm	1
Cowl Panel Grille	1-2
Windshield Wiper Motor and Transmission Assembly	1-6
Windshield Wiper Motor	1-9

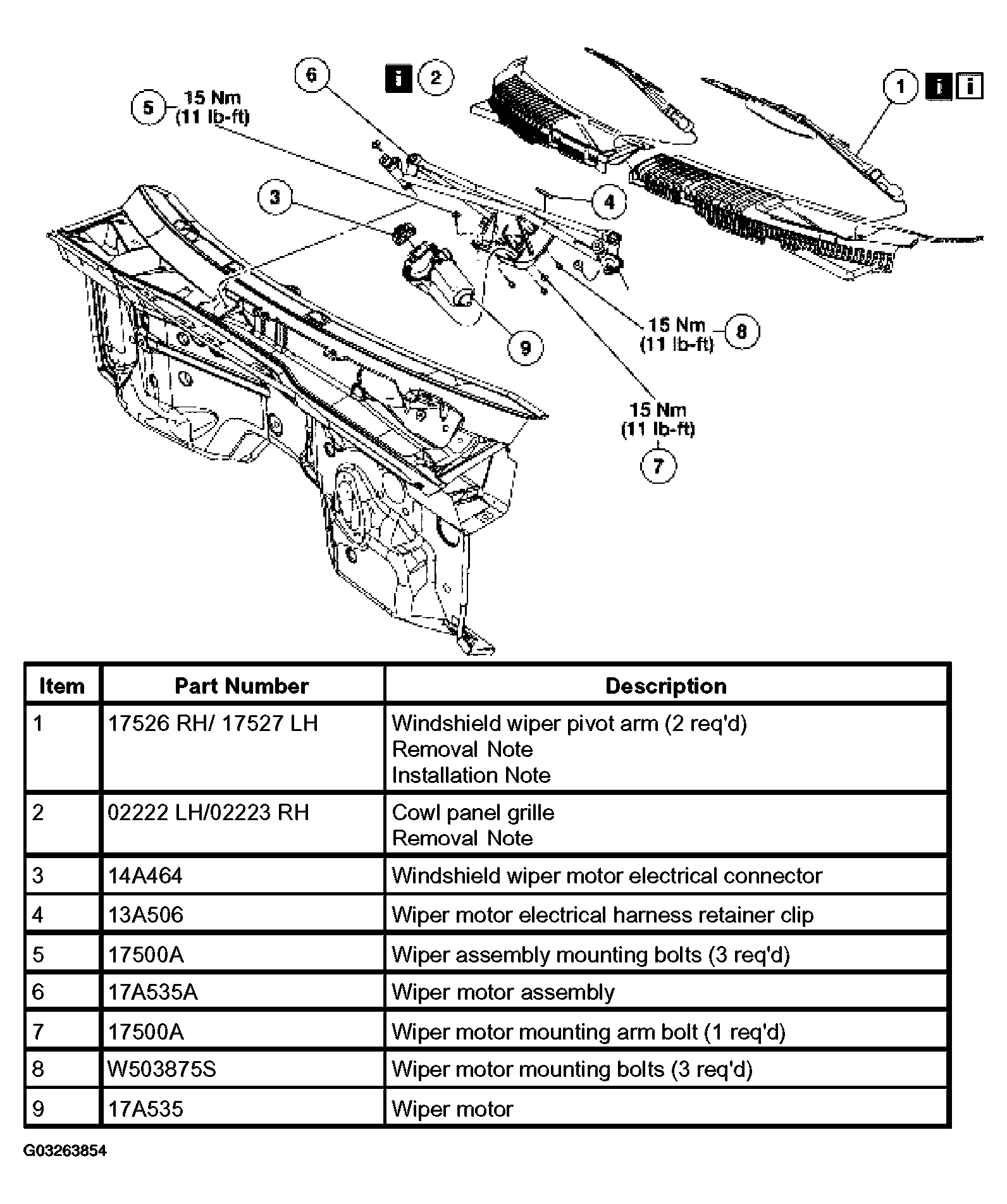

Fig 1: Removing Windshield Wiper

Courtesy of FORD MOTOR CO.
