Connecting Rod Bushing Diameter

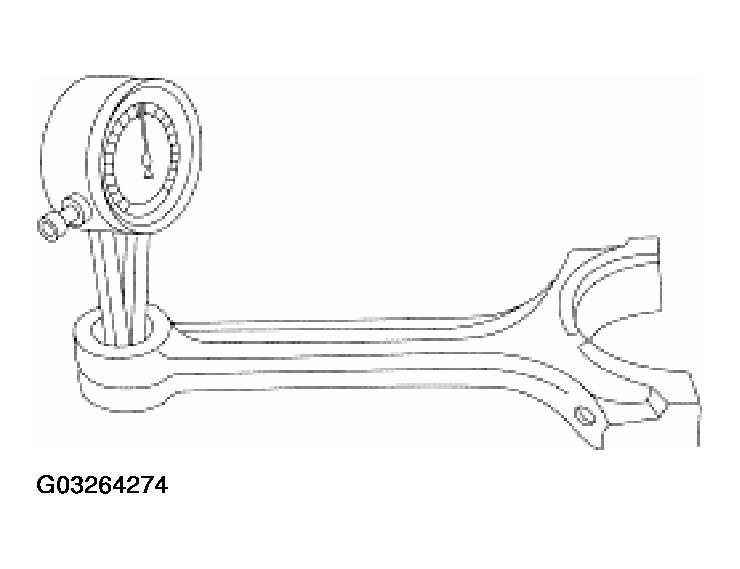

- Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
- Refer to ENGINE
for the procedure.
- If out of specification, install new components as necessary. Refer to ENGINE
for the procedure.
Courtesy of FORD MOTOR CO.
