Fuel Pulse Damper: Notes
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions can result in personal injury.
WARNING:
Fuel in the system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components, the fuel system must be relieved. Failure to follow these instructions can result in personal injury.
NOTE:
During the repair or replacement of fuel-related components, all liquid and vapor fuel openings shall be capped, taped or otherwise appropriately protected to prevent the ingress of dirt or other contamination. All caps, tape and other protective materials shall be removed prior to installation.
- Remove the air cleaner outlet tube assembly. For additional information, refer to AIR CLEANER ASSEMBLY .
- Release the fuel pressure. For additional information, refer to FUEL SYSTEM .

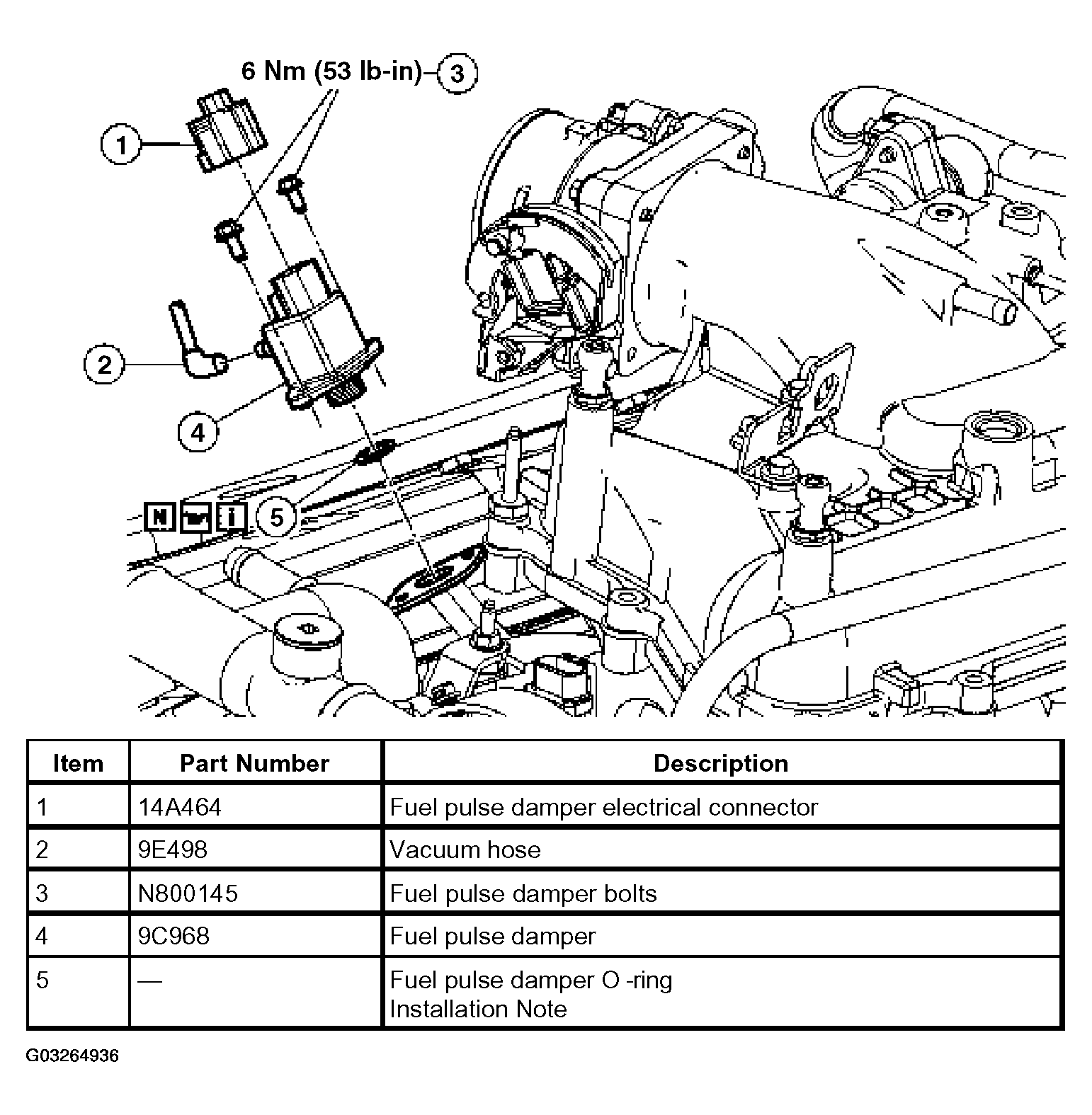

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
