Driver Seat Module-C341d

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Driver Seat Module-C341d Connector Terminal
G01634074Courtesy of FORD MOTOR CO.

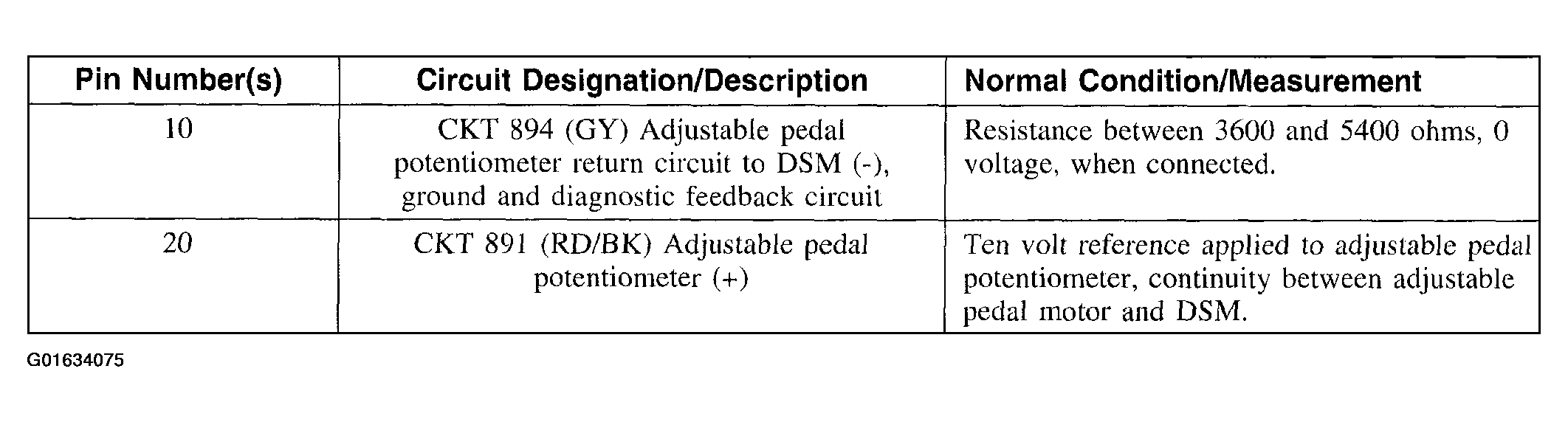

Fig 2: Driver Seat Module-C341d Reference And Terminal Readings
G01634075Courtesy of FORD MOTOR CO.
