Section 346 (Engine): Removal: Engine: Removal

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the transmission. For additional information, refer to REMOVAL .
  3. Remove the hood. For additional information, refer to BODY SYSTEM - EXTERIOR .
  4. Remove the engine appearance cover.
  5. Remove the air cleaner assembly.
  6. Remove the evaporative emissions canister purge valve. For additional information, refer to FUEL SYSTEM .
  7. Remove the cooling module. For additional information, refer to ENGINE COOLING .
  8. Discharge and recover the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM .
  9. Release the fuel pressure. For additional information, refer to FUEL SYSTEM .
  10. Remove the starter motor. For additional information, refer to STARTERS .

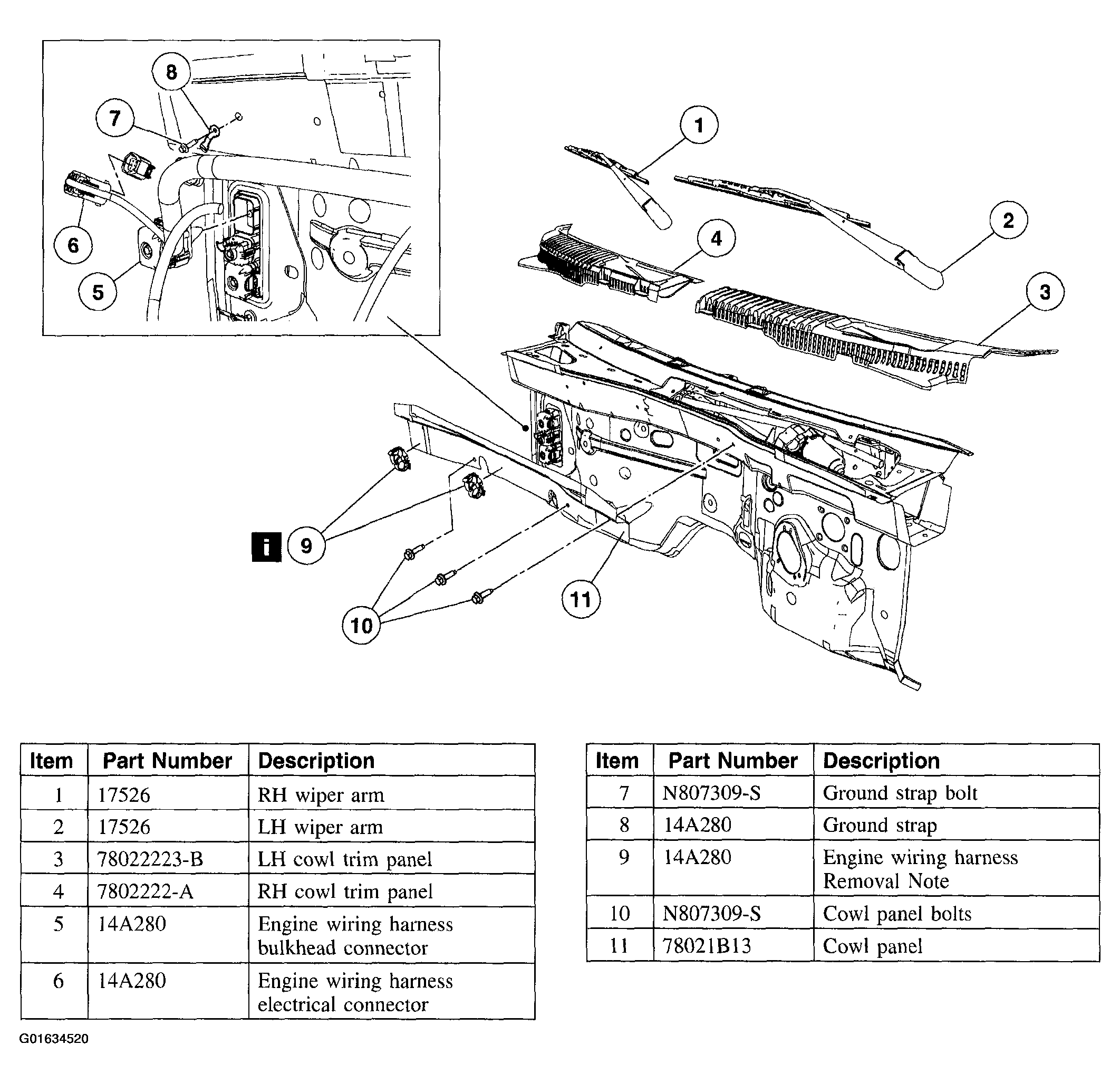

  11. Remove the components in the order indicated in the following illustration.
    Fig 1: Engine Removal Procedure (Steps 1-11)
    G01634520Courtesy of FORD MOTOR CO.

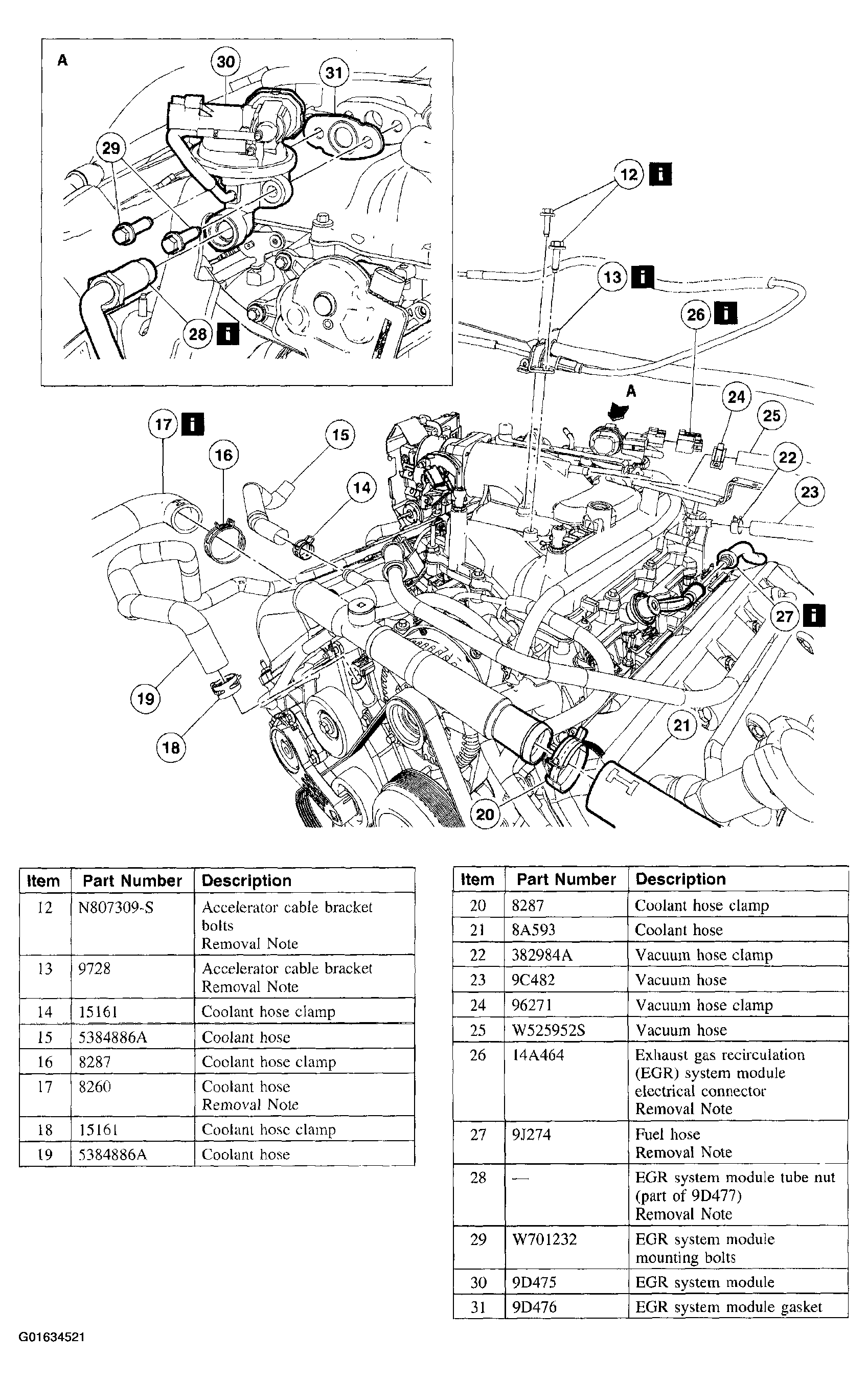

  12. Remove the components in the order indicated in the following illustration.
    Fig 2: Engine Removal Procedure (Steps 12-31)
    G01634521Courtesy of FORD MOTOR CO.

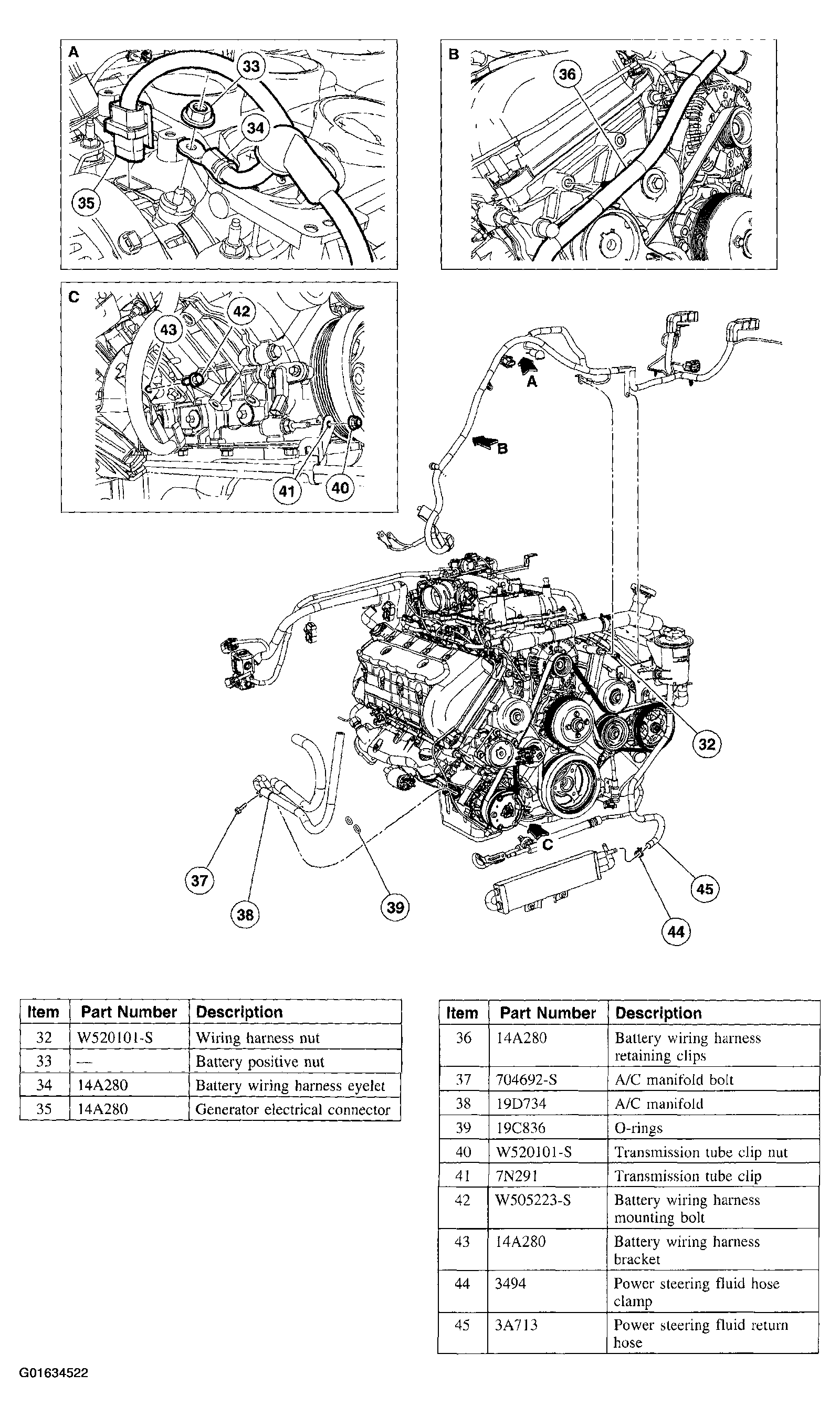

  13. Remove the components in the order indicated in the following illustration.
    Fig 3: Engine Removal Procedure (Steps 32-45)
    G01634522Courtesy of FORD MOTOR CO.

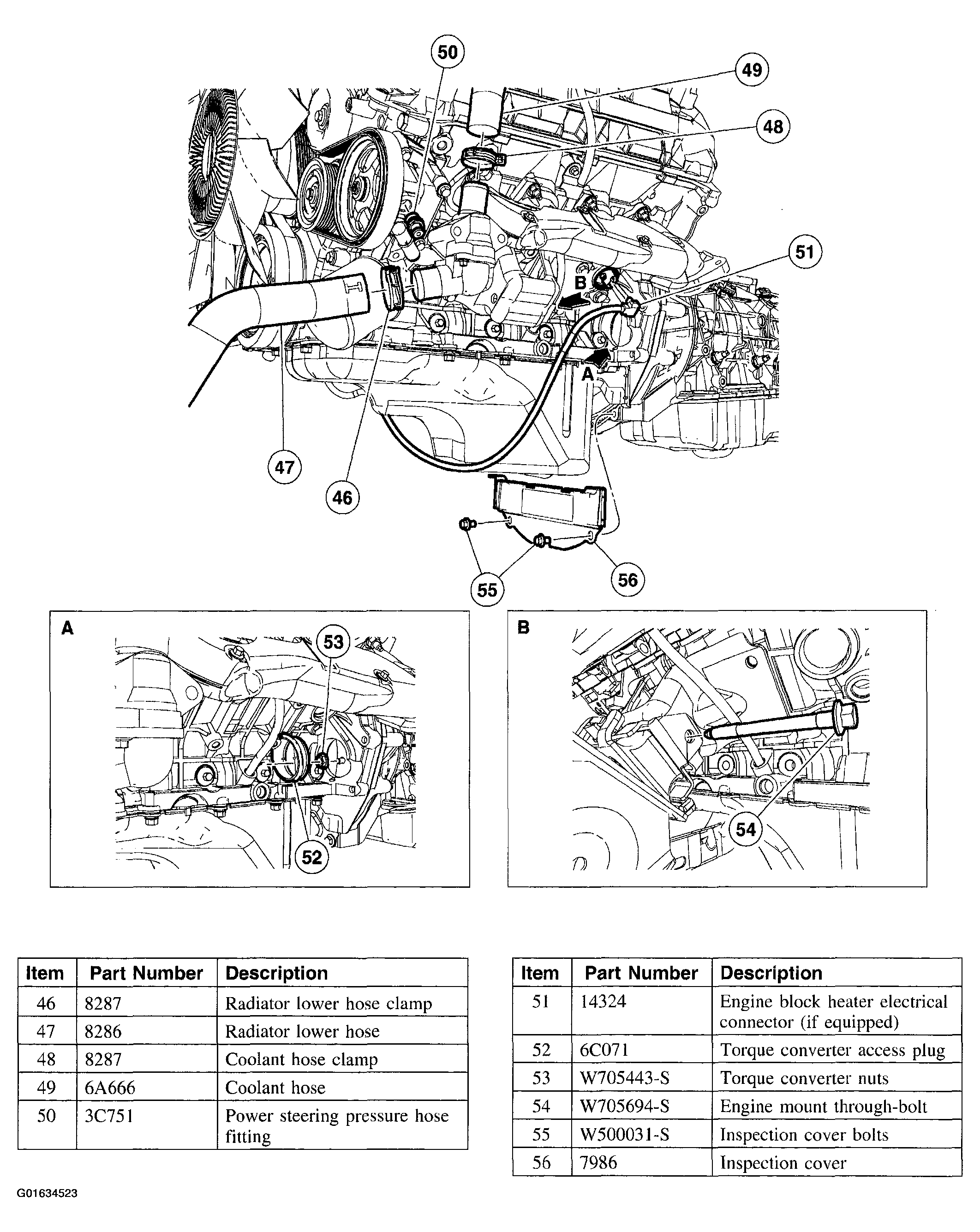

  14. Remove the components in the order indicated in the following illustration.
    Fig 4: Engine Removal Procedure (Steps 46-56)
    G01634523Courtesy of FORD MOTOR CO.

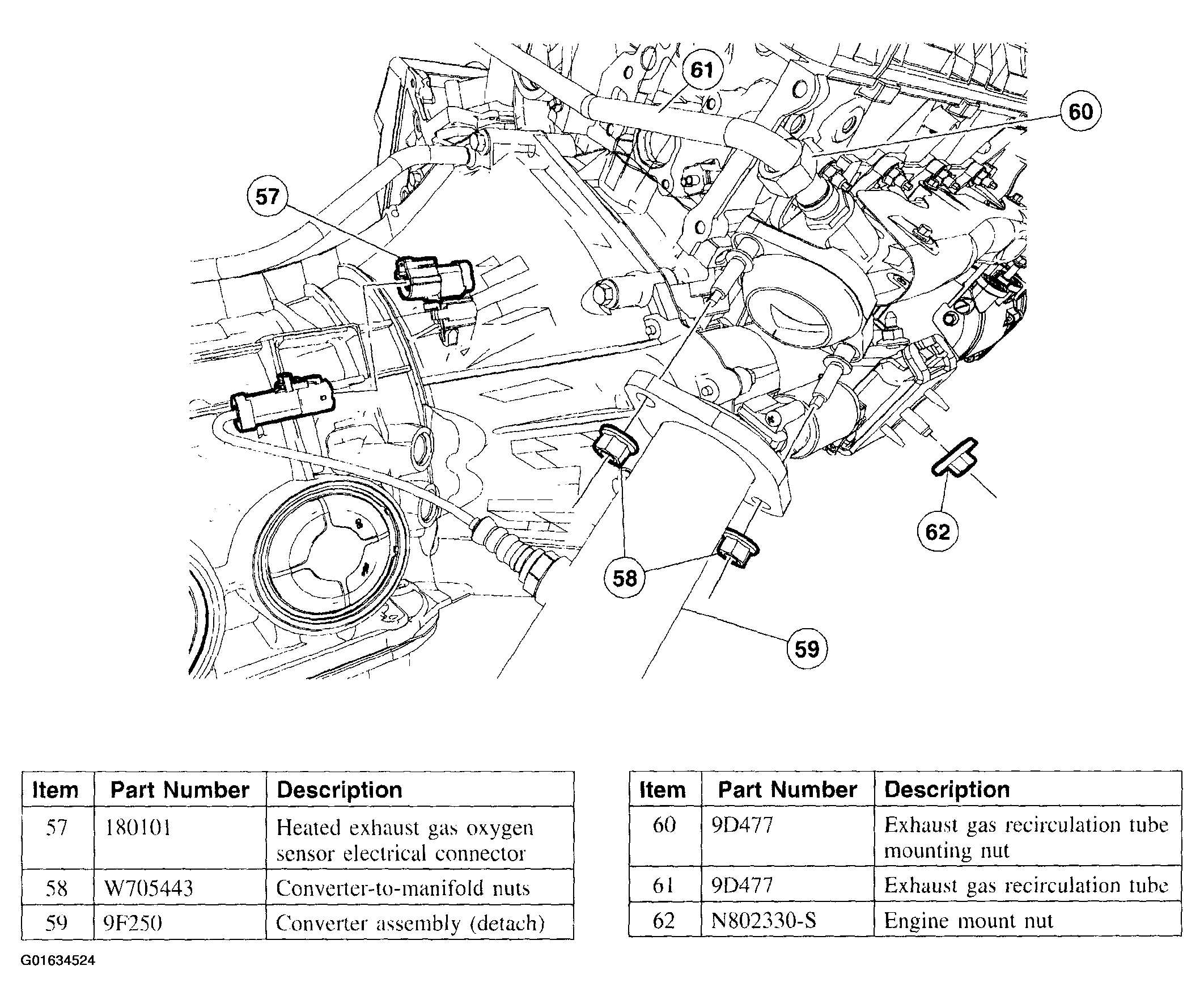

  15. Remove the components in the order indicated in the following illustration.
    Fig 5: Engine Removal Procedure (Steps 57-62)
    G01634524Courtesy of FORD MOTOR CO.

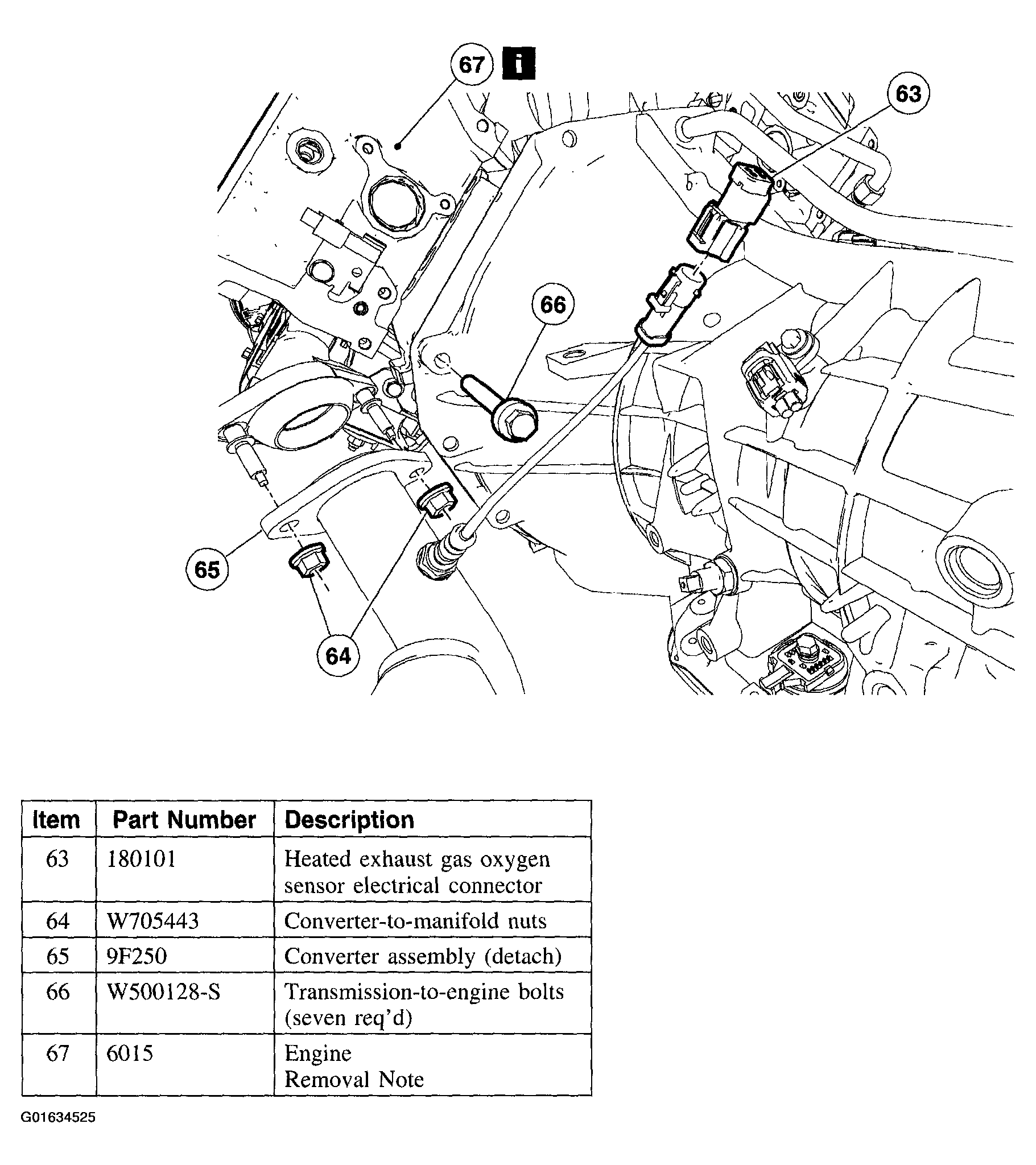

  16. Remove the components in the order indicated in the following illustration.
    Fig 6: Engine Removal Procedure (Steps 63-67)
    G01634525Courtesy of FORD MOTOR CO.

Item 9: Engine Wiring Harness Removal Note

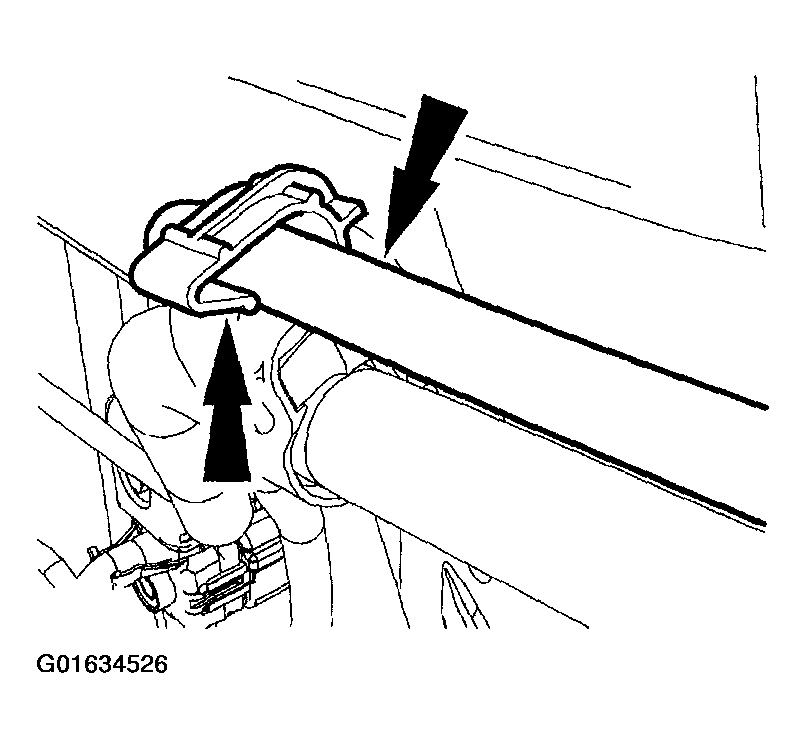

  1. Unclip the engine wiring harness retainers, remove the transmission wiring harness from the clips and position the engine wiring harness onto the engine.
    Fig 7: Uncliping Engine Wiring Harness Retainers
    G01634526Courtesy of FORD MOTOR CO.

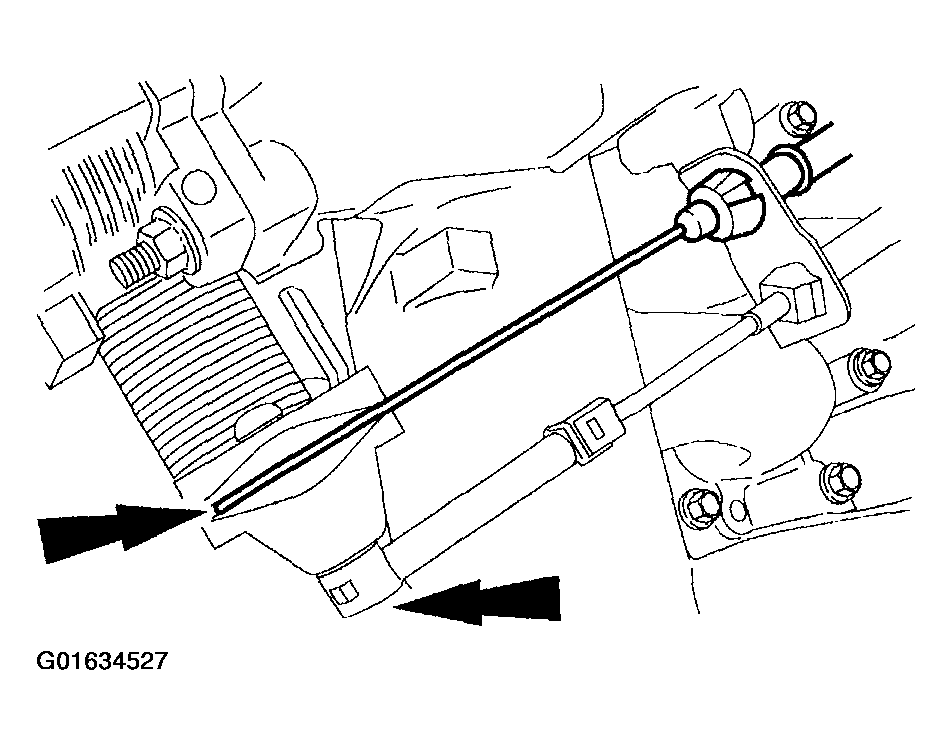

Item 12: Accelerator Cable Bracket Bolts Removal Note

  1. Disconnect the accelerator cable and the speed control cable from the throttle cam.
    Fig 8: Disconnecting Accelerator Cable And Speed Control Cable From Throttle Cam
    G01634527Courtesy of FORD MOTOR CO.

Item 13: Accelerator Cable Bracket Removal Note

  1. Disconnect the speed control cable and the accelerator cable to the throttle cam.
    Fig 9: Disconnecting Speed Control Cable And Accelerator Cable To Throttle Cam
    G01634528Courtesy of FORD MOTOR CO.

Item 17: Coolant Hose Removal Note

  1. Unclip the hose retainers and position the coolant hoses aside.
    Fig 10: Uncliping Hose Retainers And Positioning Coolant Hoses Aside
    G01634529Courtesy of FORD MOTOR CO.

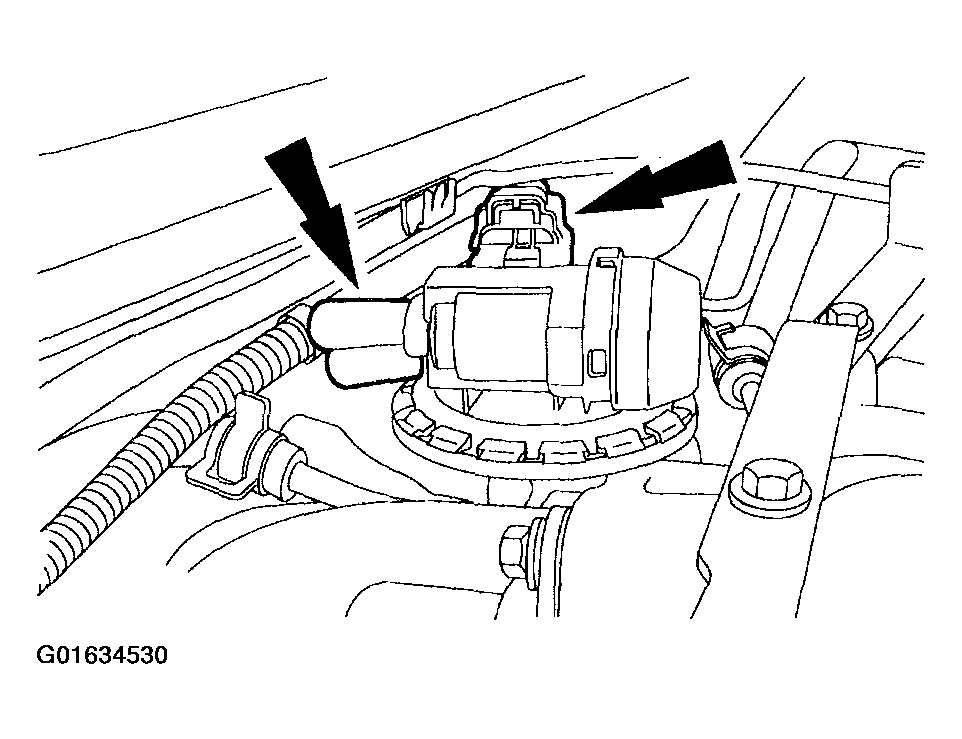

Item 26: EGR System Module Vacuum Hoses and Electrical Connector Removal Note

  1. Disconnect the vacuum hoses and the electrical connector from the EGR system module.
    Fig 11: Disconnecting Vacuum Hoses And Electrical Connector From EGR System Module
    G01634530Courtesy of FORD MOTOR CO.

Item 27: Fuel Hose Removal Note

  1. Install the special tool.
    Fig 12: Installing Special Tool (310-D005)
    G01634531Courtesy of FORD MOTOR CO.
  2. Press the special tool into the open end of the spring lock coupling cage.
    Fig 13: Pressing Special Tool Into Open End Of Spring Lock Coupling Cage
    G01634532Courtesy of FORD MOTOR CO.
  3. Separate the fuel hose spring lock couplings.
    Fig 14: Separating Fuel Hose Spring Lock Coupling
    G01634533Courtesy of FORD MOTOR CO.

Item 28: EGR System Module Tube Nut Removal Note

  1. Loosen the nut connecting the tube to the exhaust manifold.

Item 67: Engine Removal Note

  1. Support the transmission with a suitable floor jack.
    2. NOTE: This engine removal procedure requires the use of two 303-D087 engine lifting eyes.

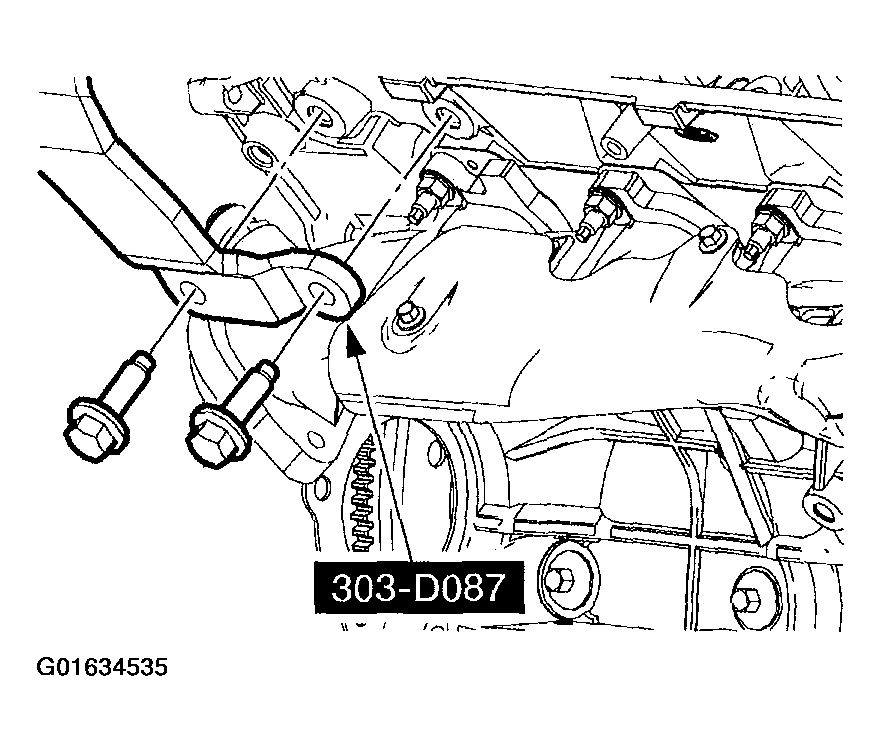

    Fig 15: Installing Lifting Eye
    G01634535Courtesy of FORD MOTOR CO.
  2. Install the right and left engine lifting eyes.
  3. Install the special tool to a suitable engine lifting crane and remove the engine from the vehicle.

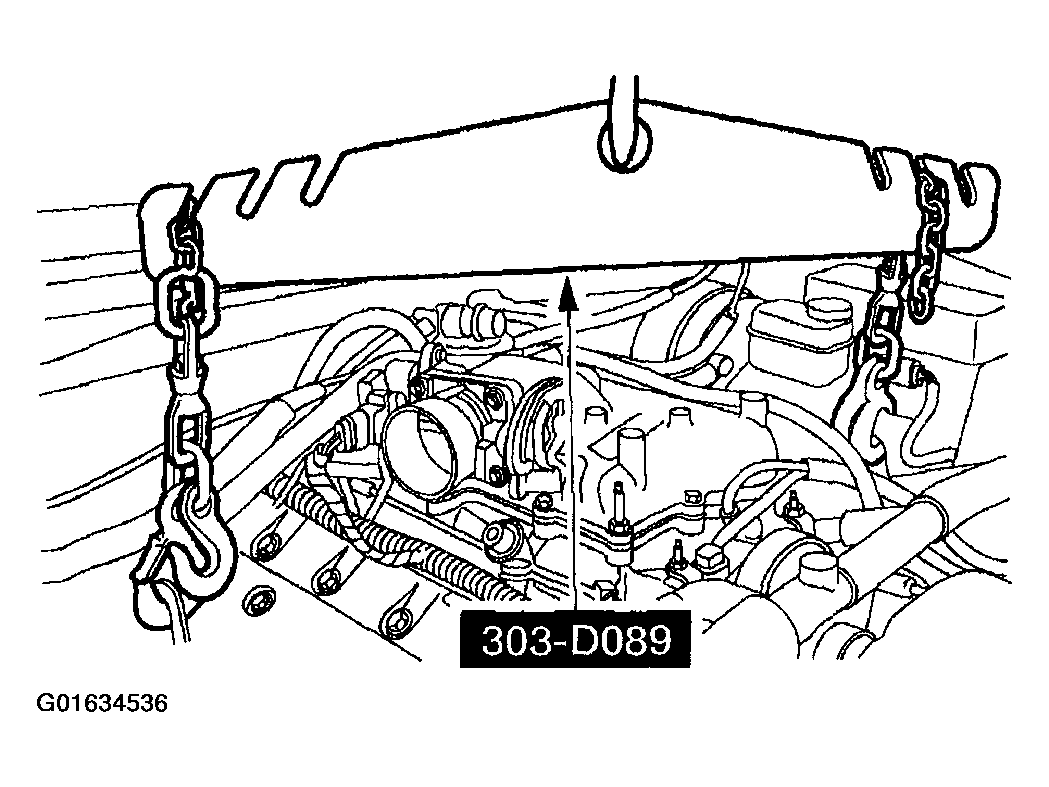

    Fig 16: Removing Engine From Vehicle
    G01634536Courtesy of FORD MOTOR CO.
