Audio Unit

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the components in the order indicated in the following illustration.

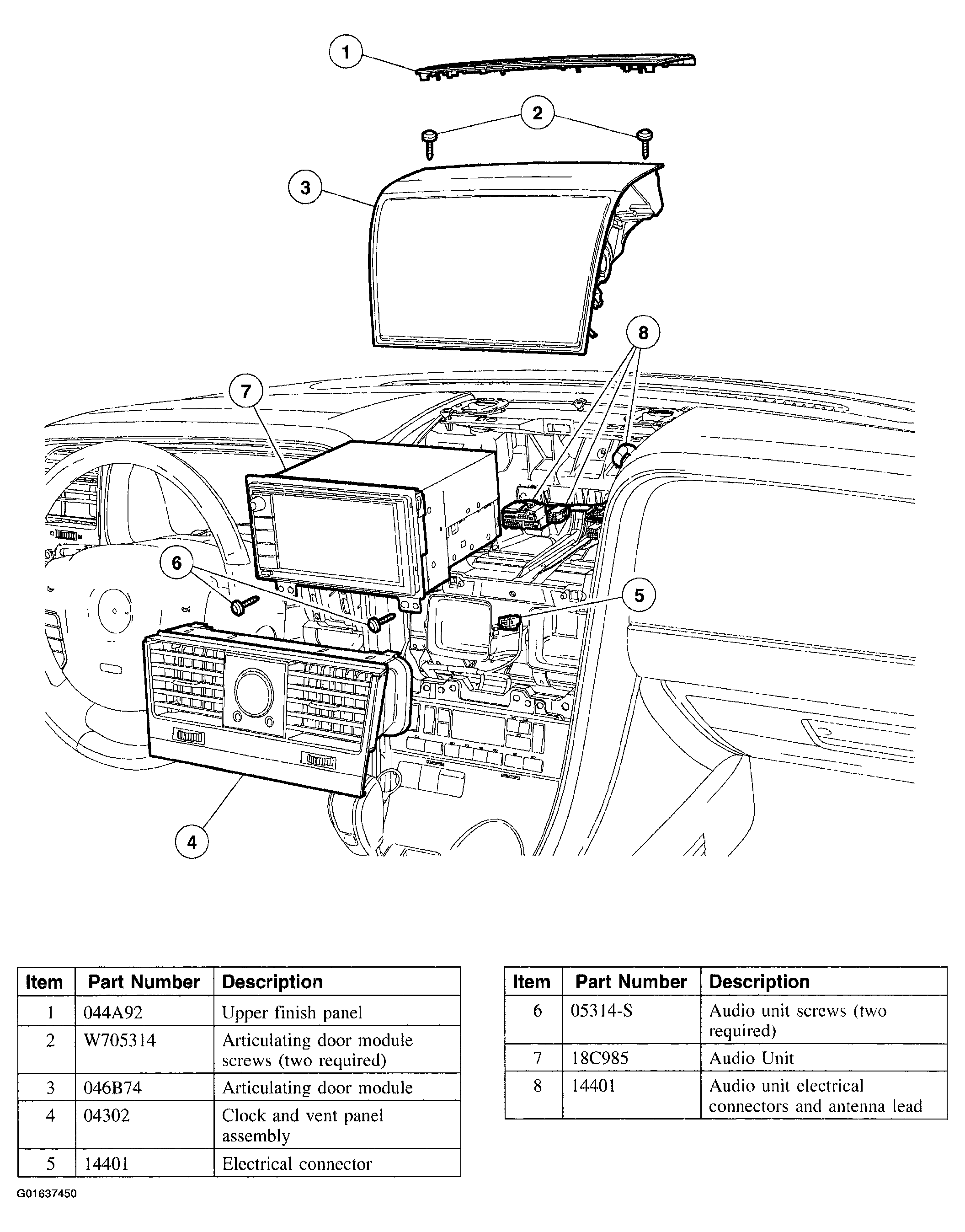

    Fig 1: Audio Unit Removal Procedure
    G01637450Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
