Steering Wheel Audio Controls

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver airbag assembly. Refer to AIR BAG RESTRAINT SYSTEMS .
Remove the components in the order indicated in the following illustration.

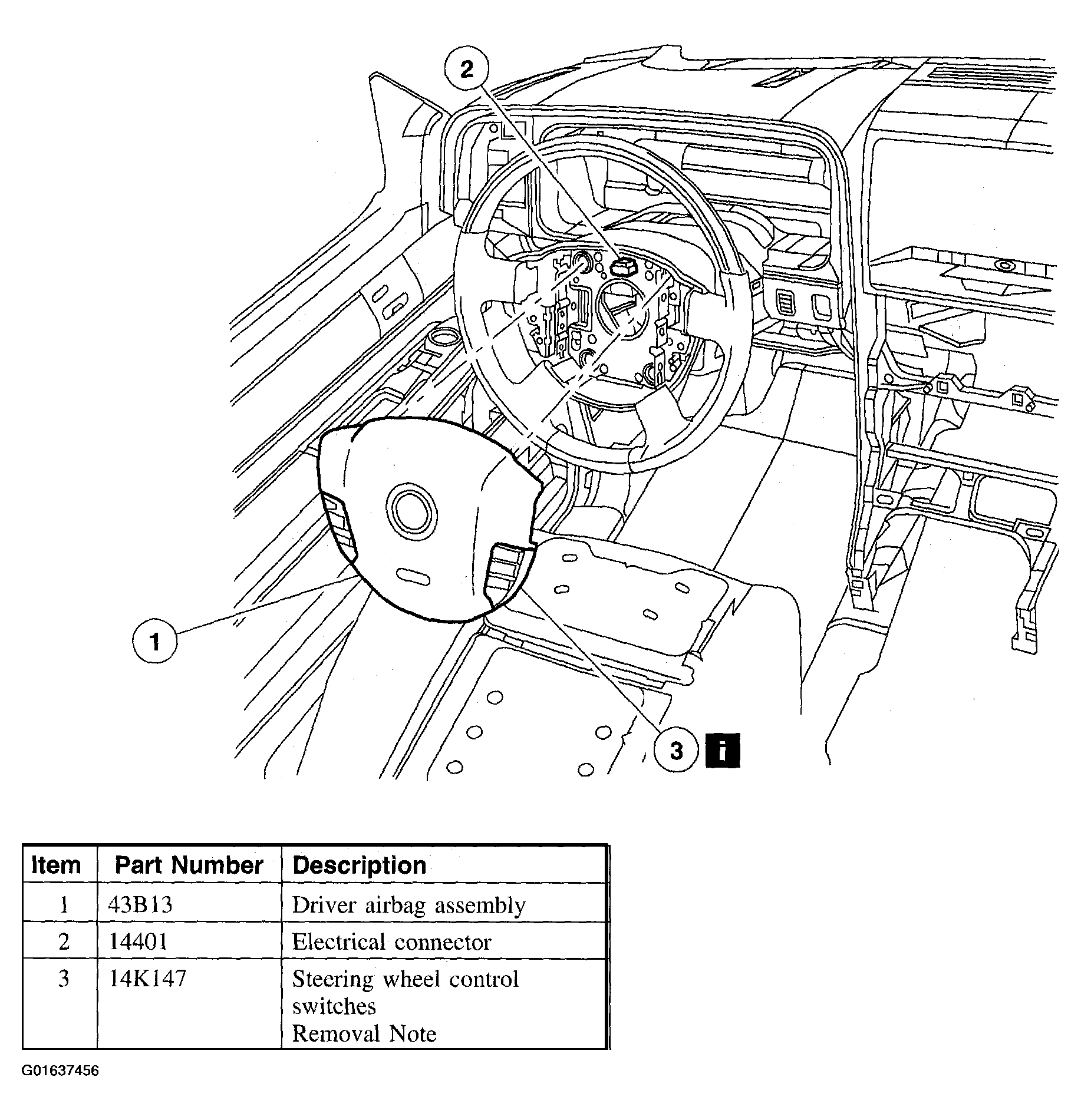

Fig 1: Steering Wheel Audio Control Removal Procedure
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 3: Steering Wheel Control Switches Removal Note

Remove the components in the order indicated in the following illustration.

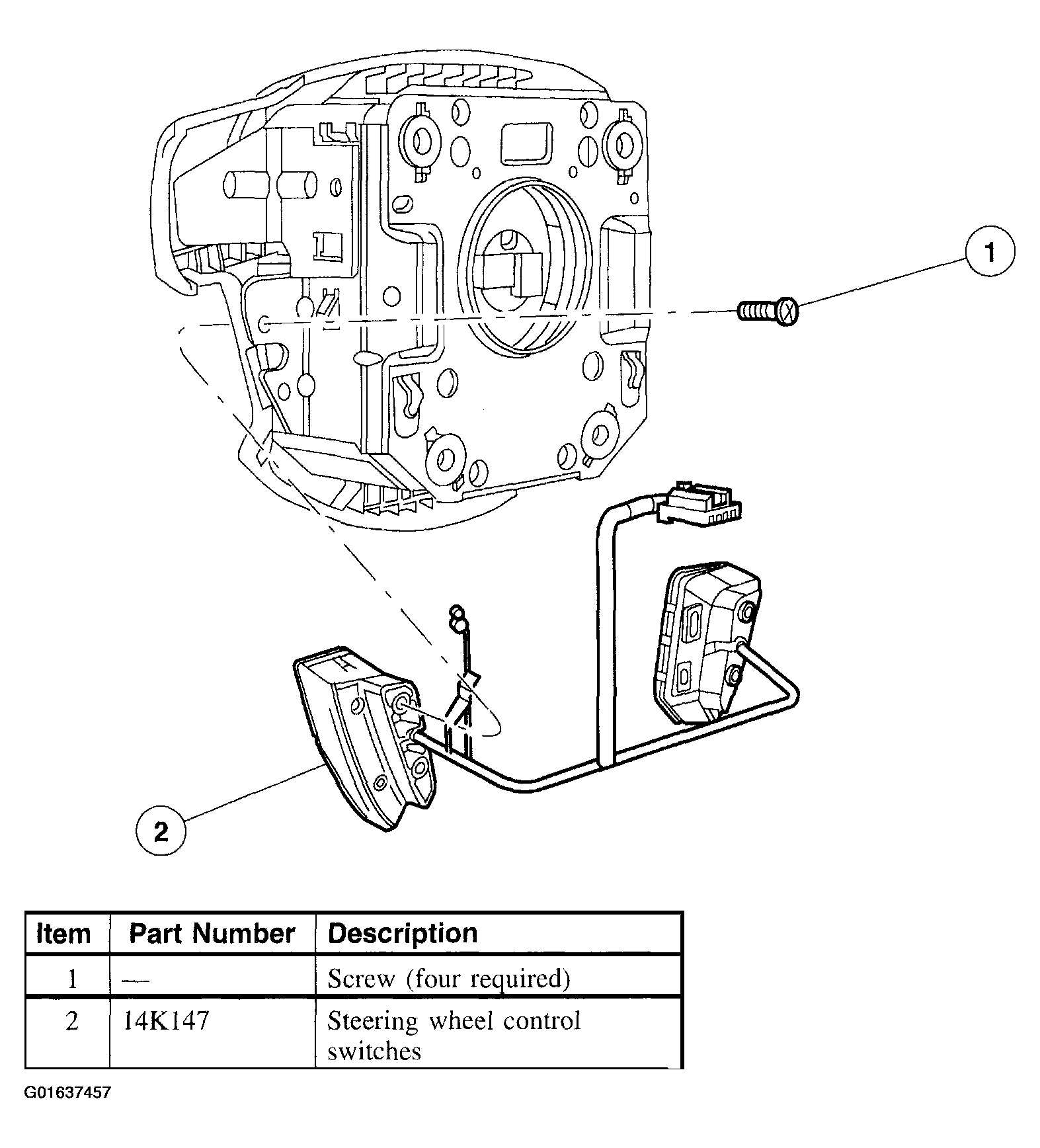

Fig 2: Steering Wheel Audio Control Switches Removal Procedure
Courtesy of FORD MOTOR CO.
