Transfer Case: Notes

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

Remove the rear driveshaft. For additional information, refer to DRIVELINE SYSTEM .
Remove the front driveshaft. For additional information, refer to DRIVELINE SYSTEM .
Remove the four bolts and the skid plate, if equipped.

Fig 2: Removing Four Bolts And Skid Plate
Courtesy of FORD MOTOR CO.
Drain the fluid if the transfer case is to be disassembled. For additional information, refer to TRANSFER CASE DRAINING AND FILLING .

Fig 3: Identifying Filler Plug
Courtesy of FORD MOTOR CO.
Remove the RH and LH heat shield-to-crossmember bolts.

Fig 4: Removing RH And LH Heat Shield-To-Crossmember Bolts
Courtesy of FORD MOTOR CO.
Remove the plastic shield on the right side of the crossmember.

Fig 5: Removing Plastic Shield On Right Side Of Crossmember
Courtesy of FORD MOTOR CO.

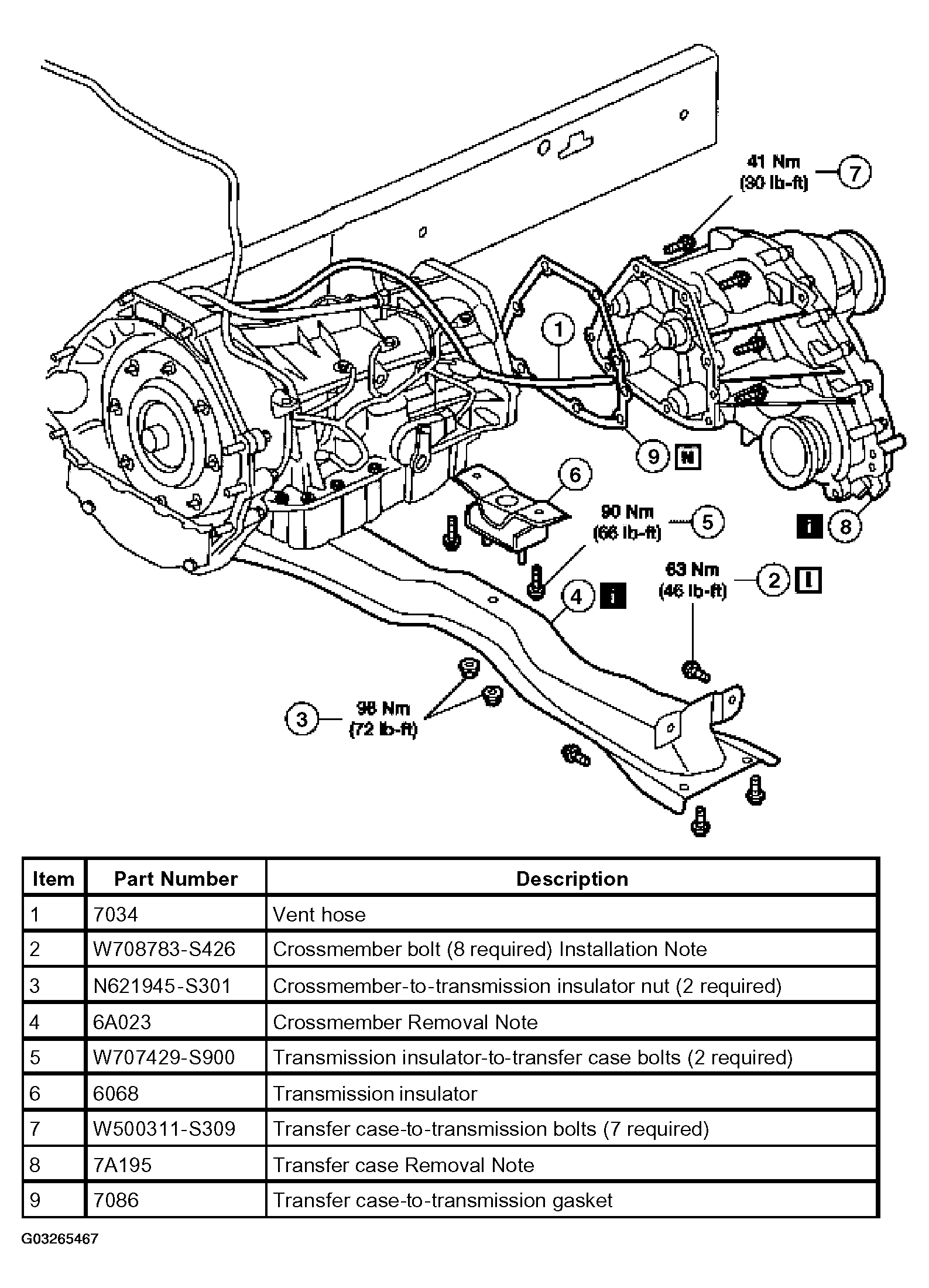

Remove the parts in the order indicated in the following illustration and table.

Fig 6: Removing Transfer Case
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
