Ambient Air Temperature Sensor C132
Ambient Air Temperature Sensor C132

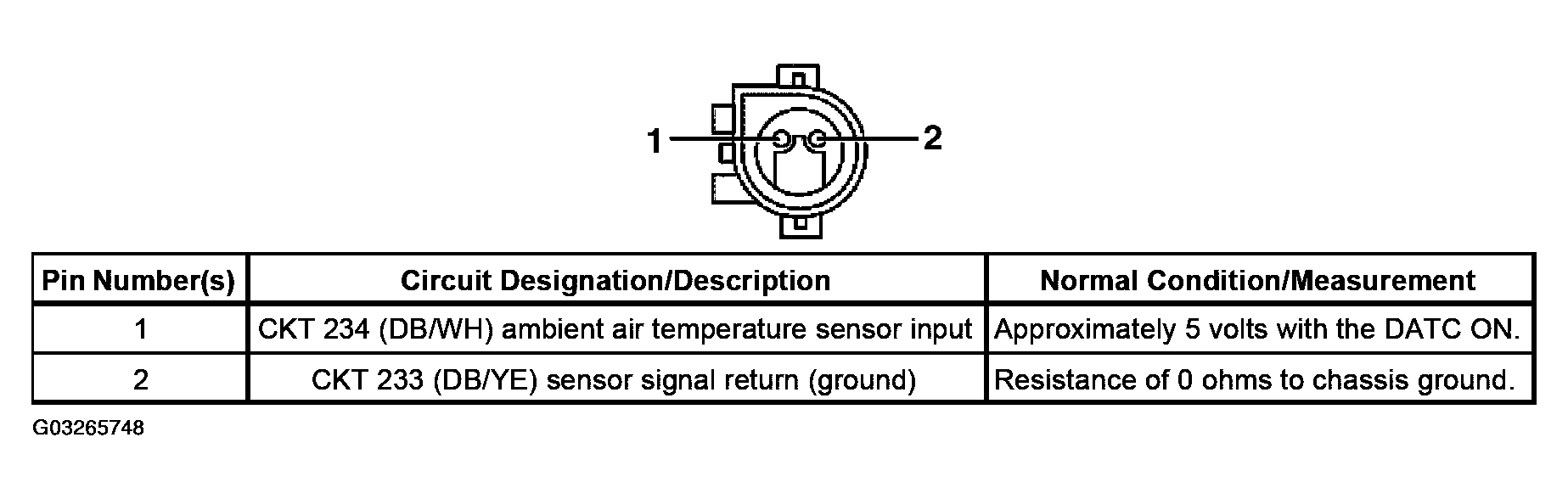

Fig 1: Identifying Ambient Air Temperature Sensor C132 Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
