Blower Motor Speed Control

  1. Remove the variable assist power steering module screw and position the module aside.
  2. Remove the parts in the order indicated in the following illustration and table.

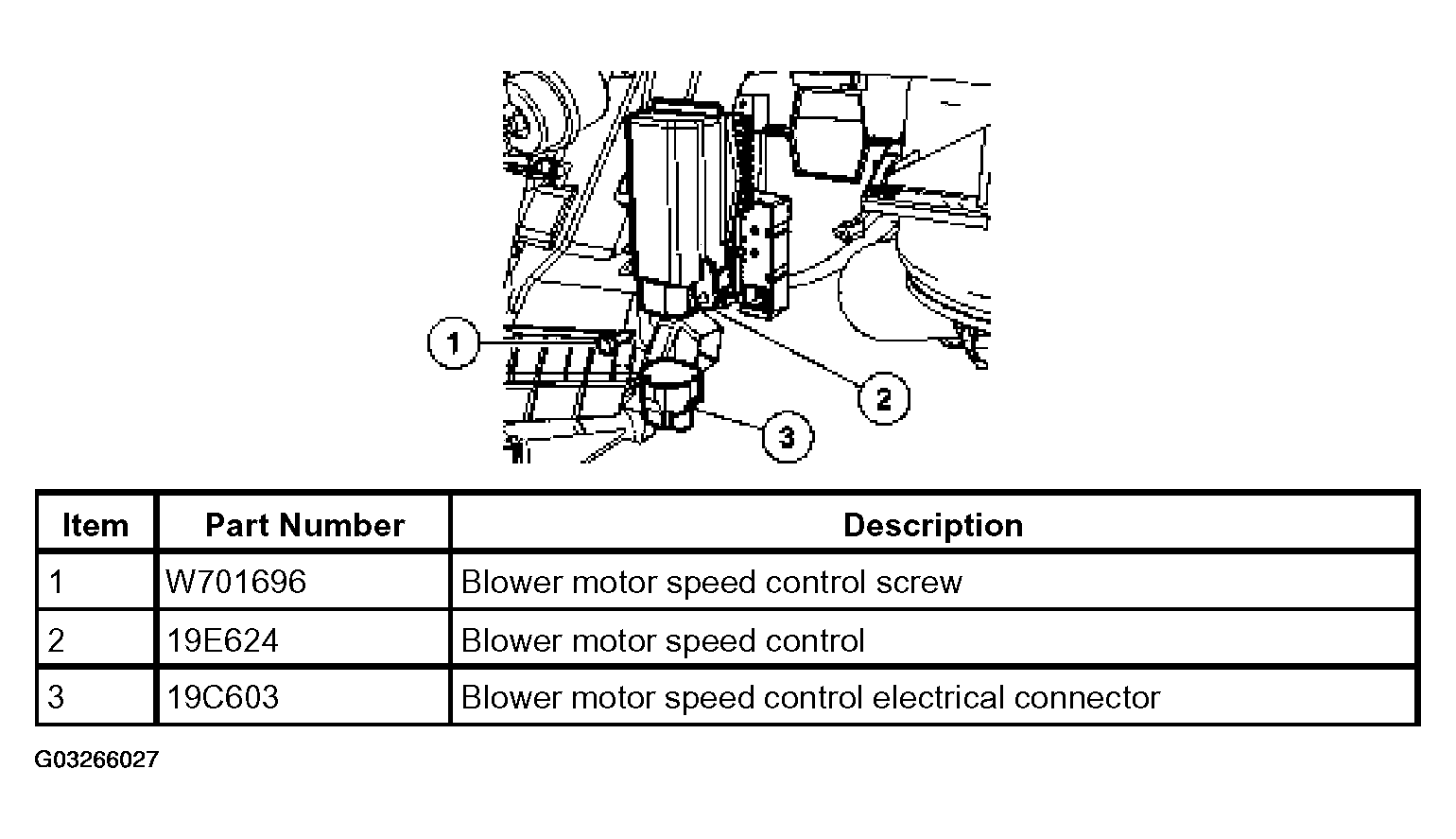

    Fig 1: Identifying Removal Sequence Of Blower Motor Speed Control
    G03266027Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
