Identifying Connector C201e

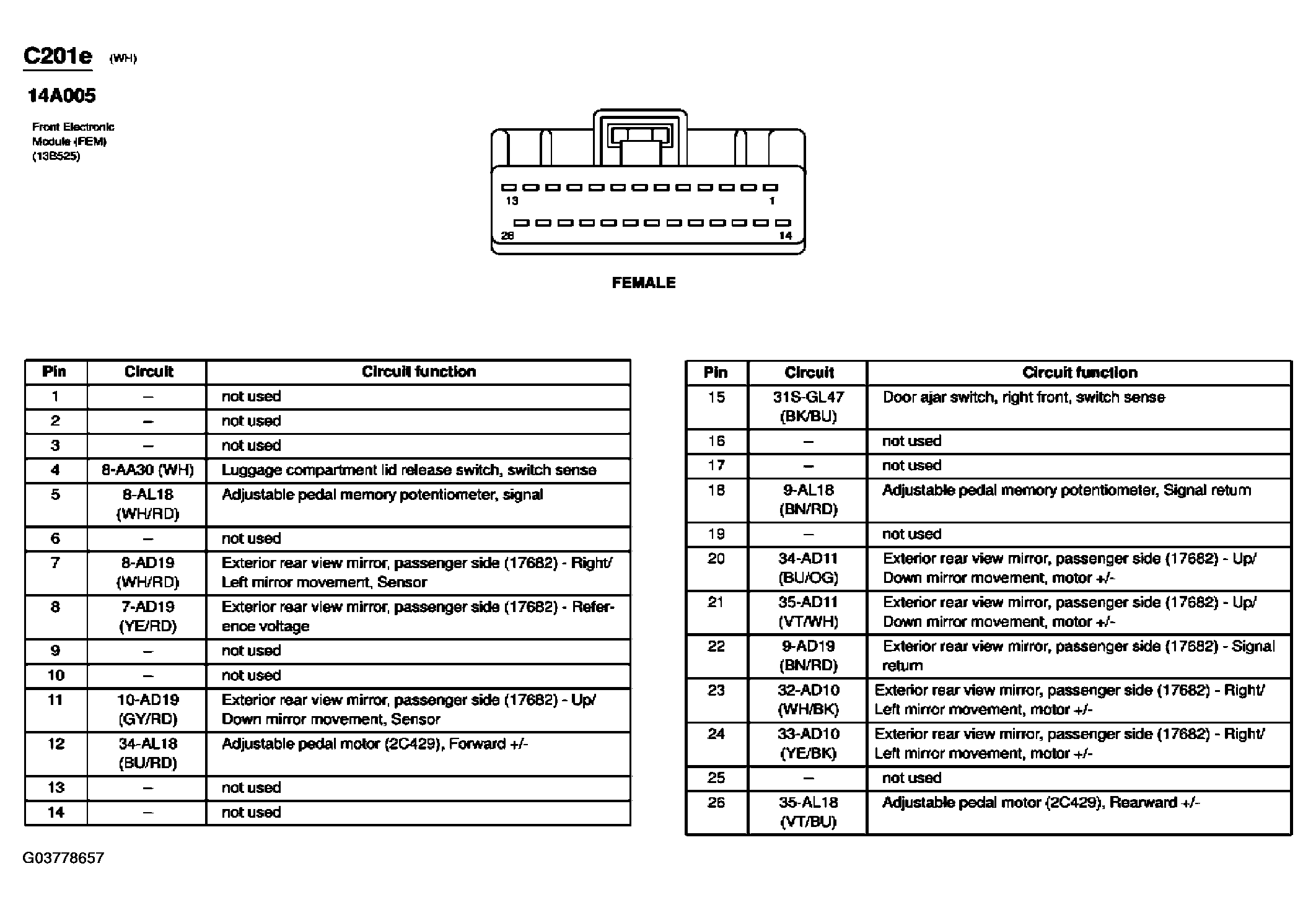

Fig 1: Front Electronic Module (FEM) Connector End View (C201e)
G03778657Courtesy of FORD MOTOR CO.
