Home › Lincoln › 2004 › LS 3.0 S › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Identifying Connector C220c

Identifying Connector C220c

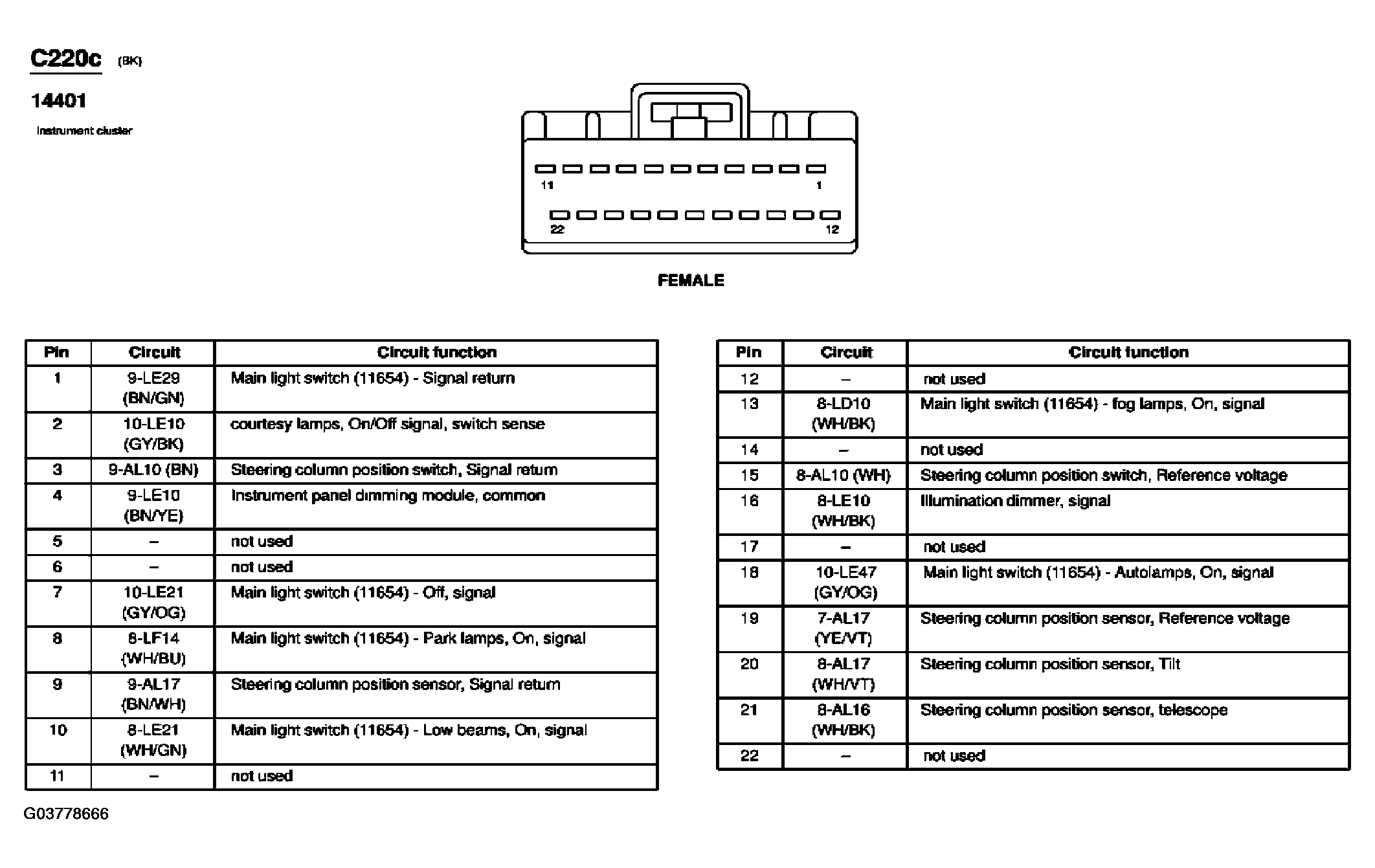

Fig 1: Instrument Cluster Connector End View (C220c)
G03778666Courtesy of FORD MOTOR CO.
