Identifying Connector C420b

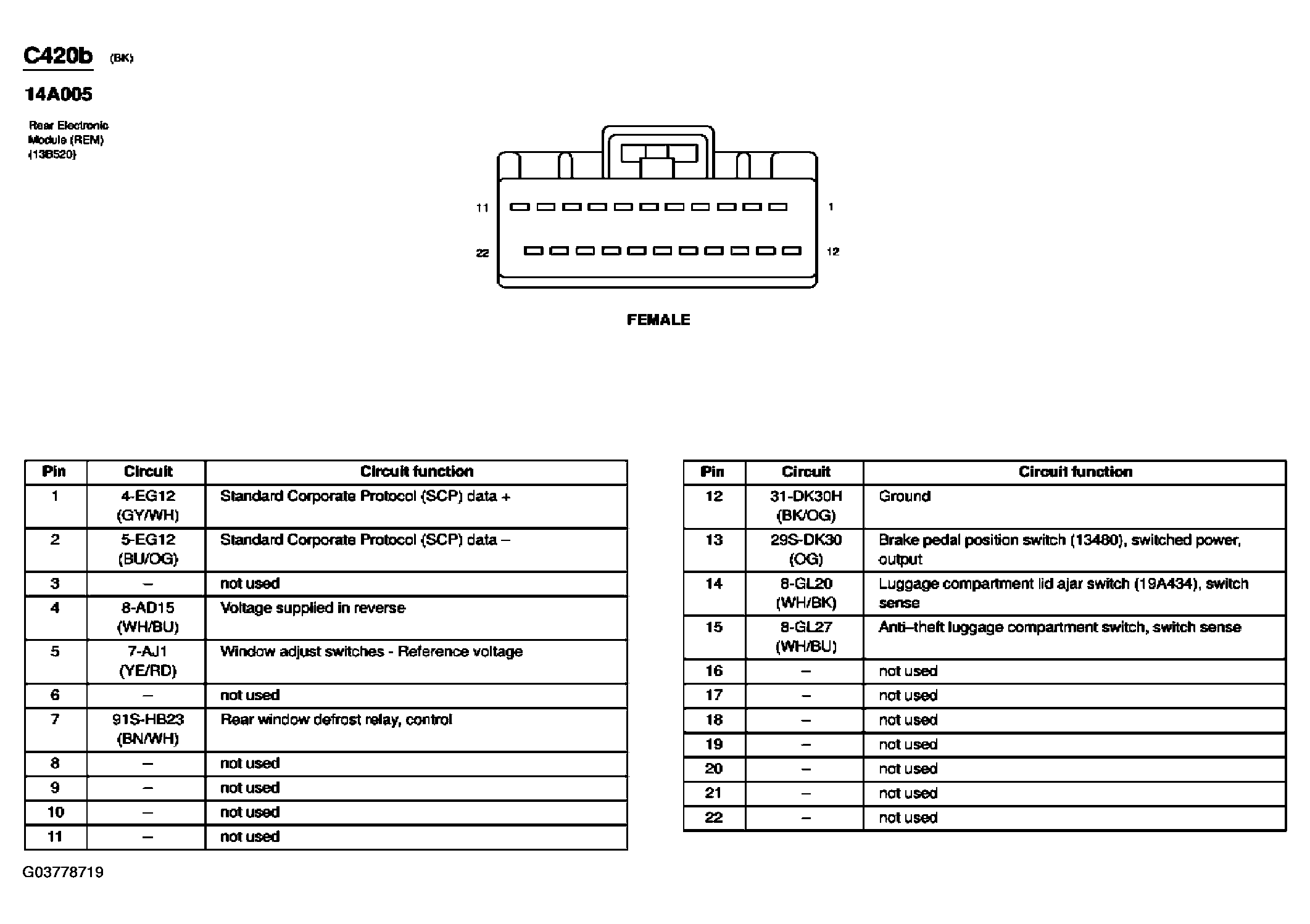

Fig 1: Rear Electronic Module (REM) Connector End View (C420b)
G03778719Courtesy of FORD MOTOR CO.
