Identifying Connector C420d

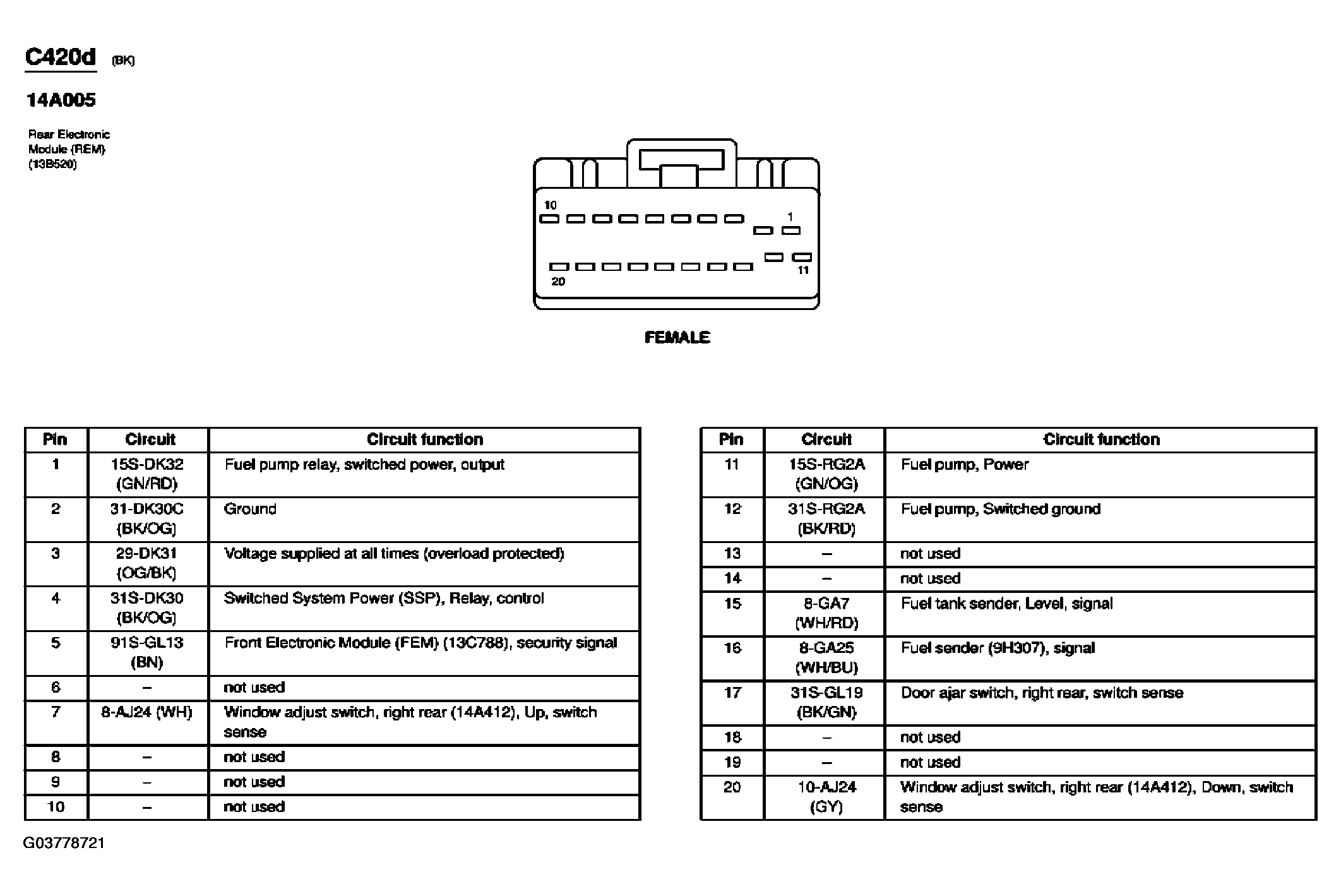

Fig 1: Rear Electronic Module (REM) Connector End View (C420d)
G03778721Courtesy of FORD MOTOR CO.
