Identifying Connector C270a

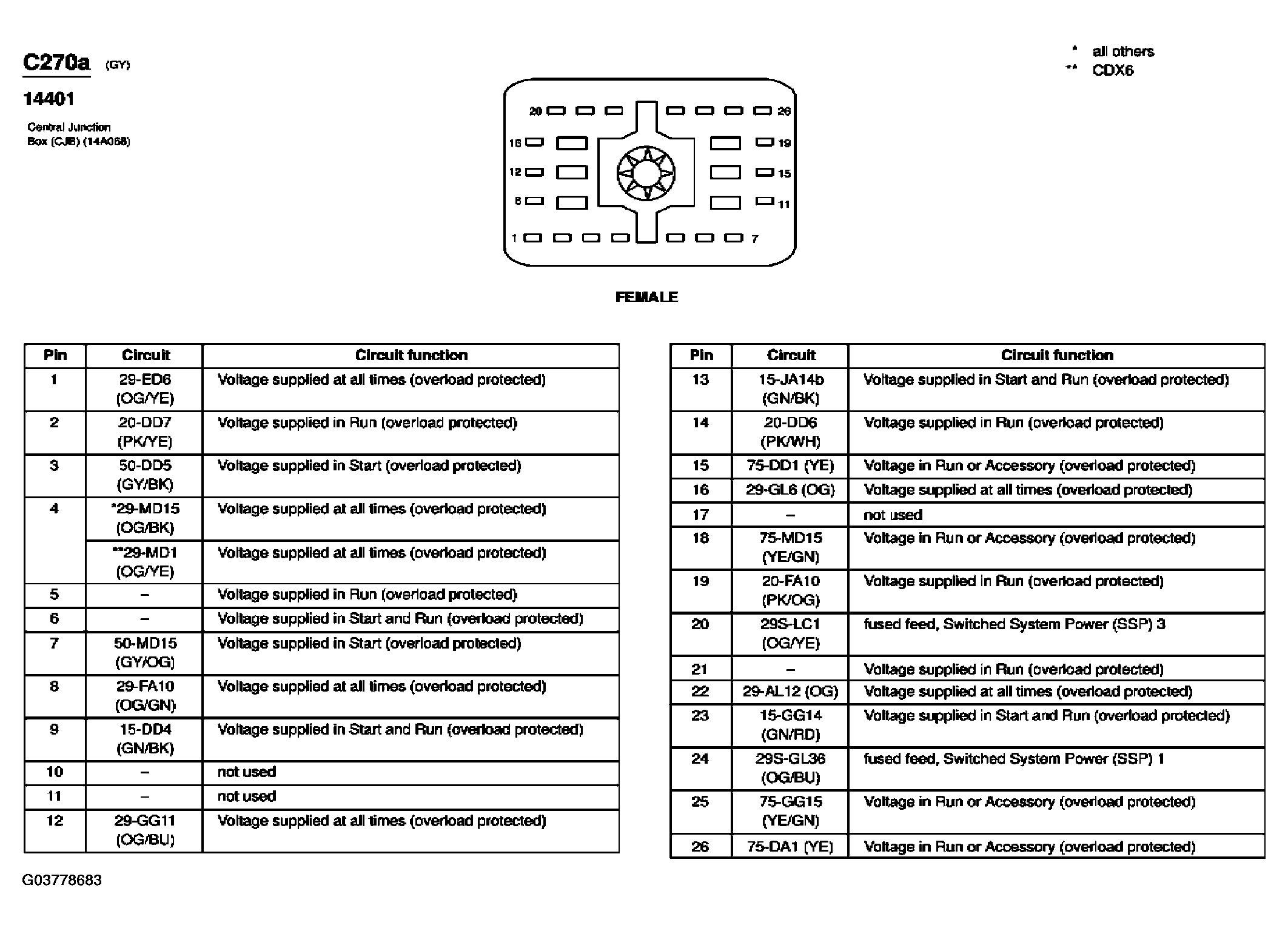

Fig 1: Central Junction Box (CJB) Connector End View (C270a)
G03778683Courtesy of FORD MOTOR CO.
