Identifying Connector C175e

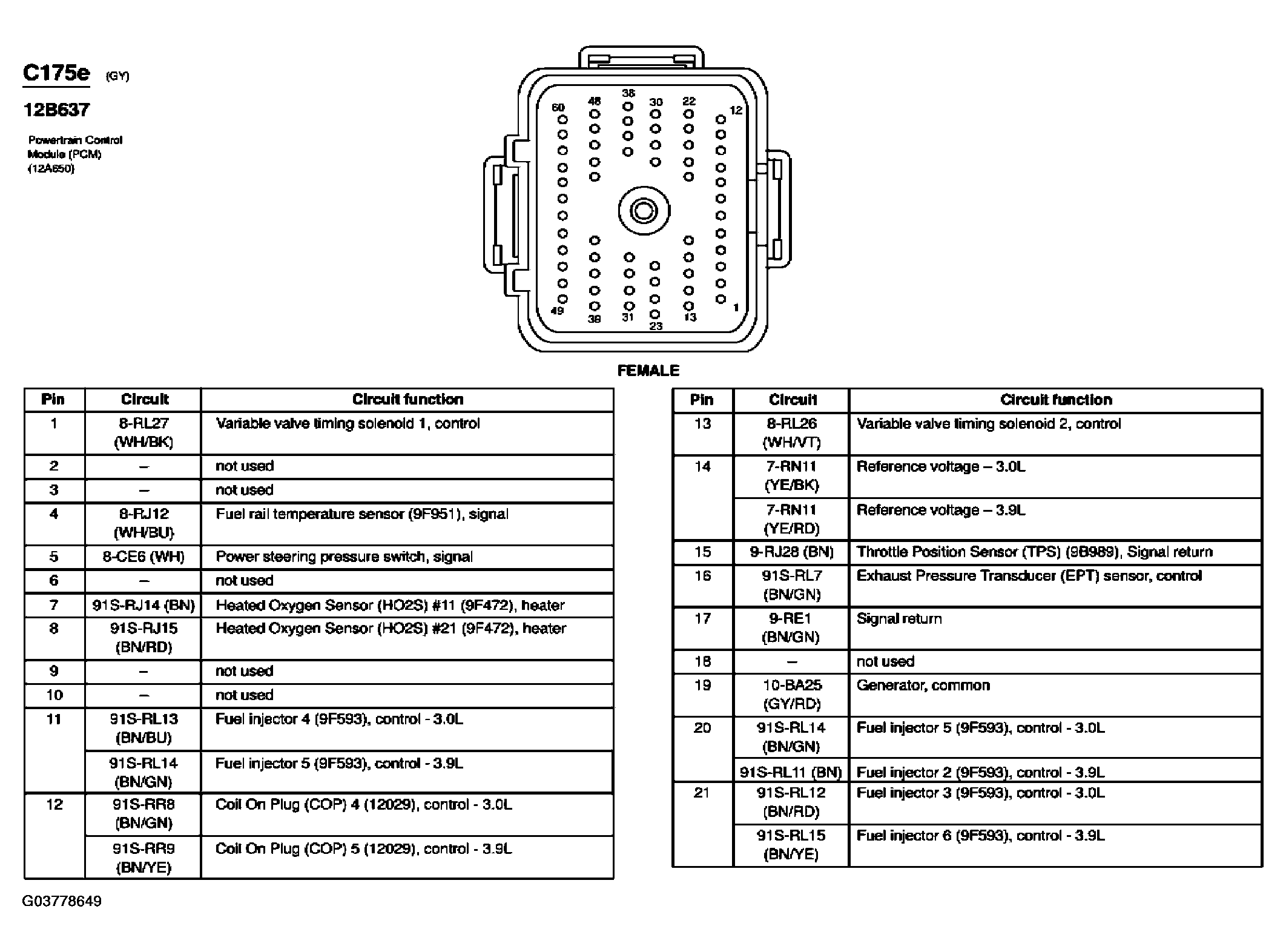

Fig 1: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
G03778649Courtesy of FORD MOTOR CO.

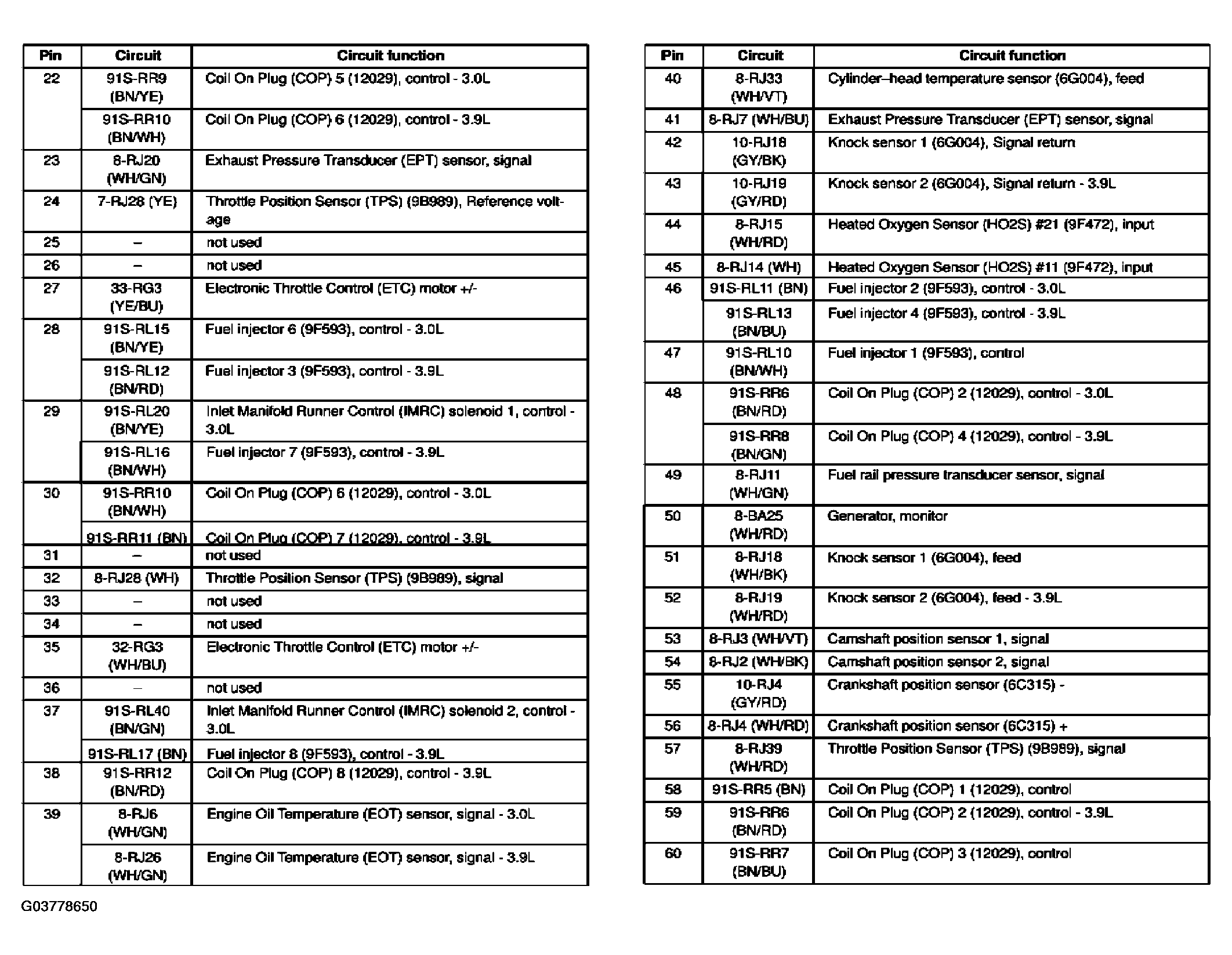

Fig 2: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
G03778650Courtesy of FORD MOTOR CO.
