Identifying Connector C601

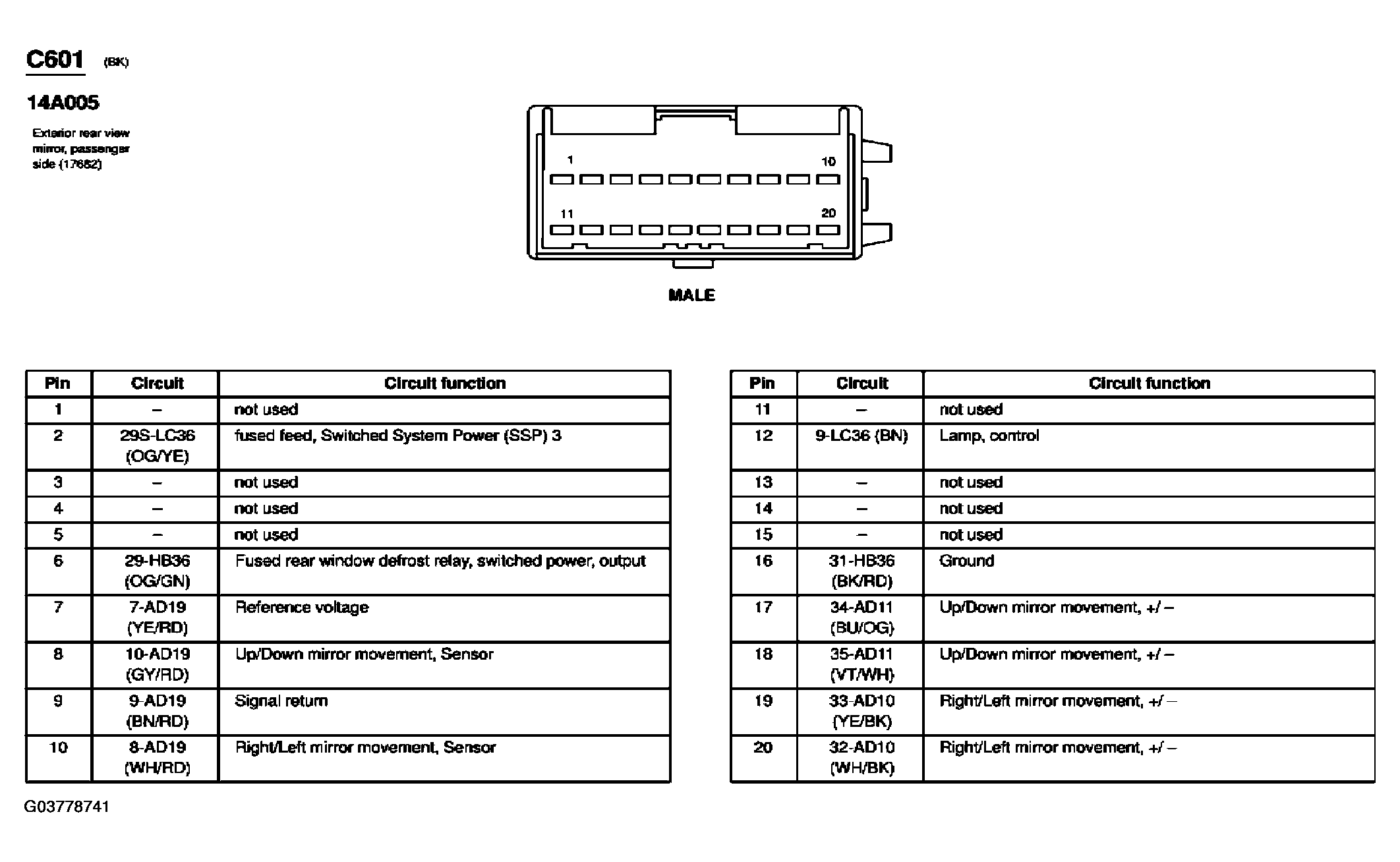

Fig 1: Exterior Rear View Mirror, Passenger Side Connector End View (C601)
G03778741Courtesy of FORD MOTOR CO.
