Identifying Connector C261

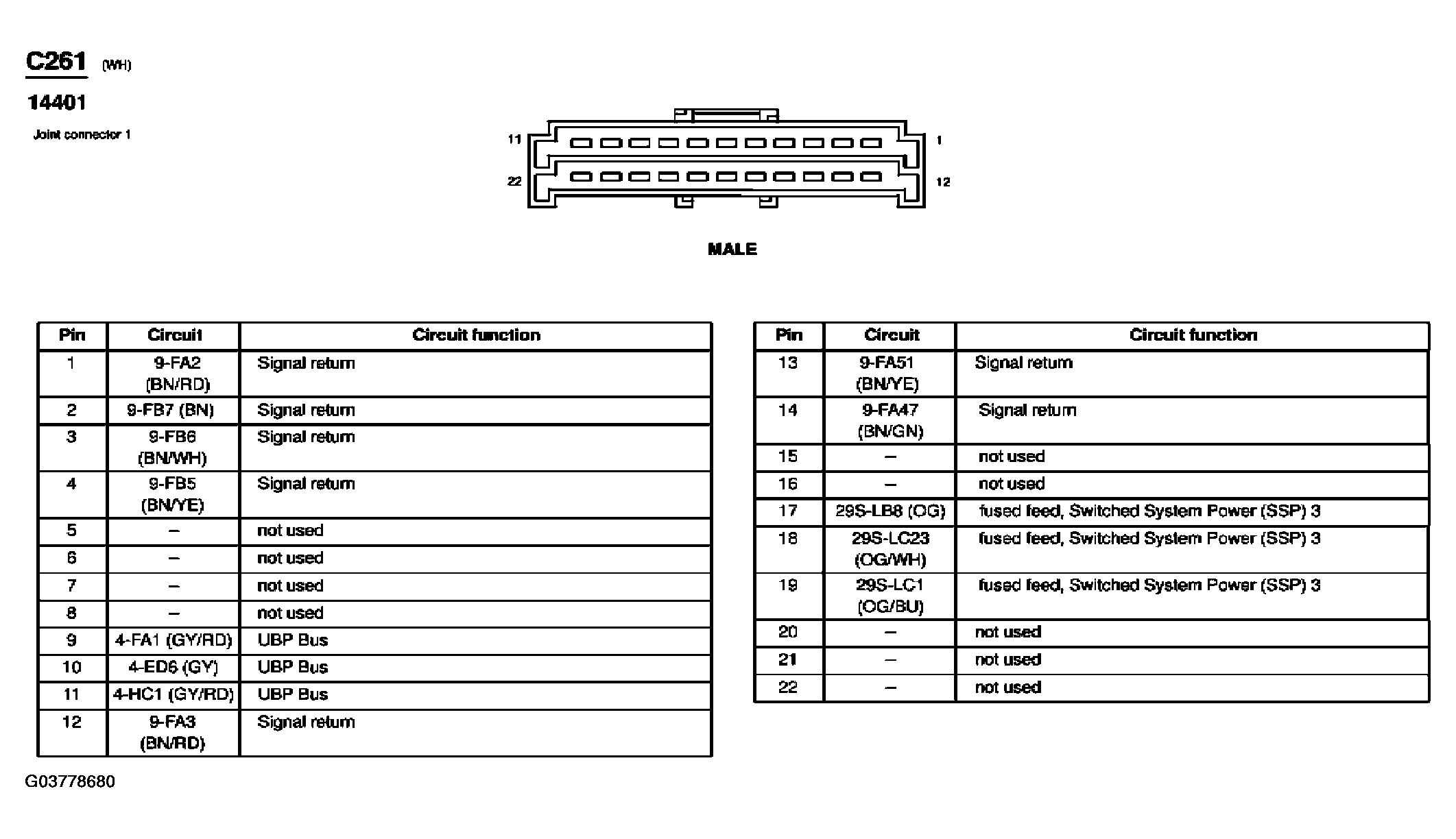

Fig 1: Joint Connector 1 Connector End View (C261)
G03778680Courtesy of FORD MOTOR CO.
