Identifying Connector C283b

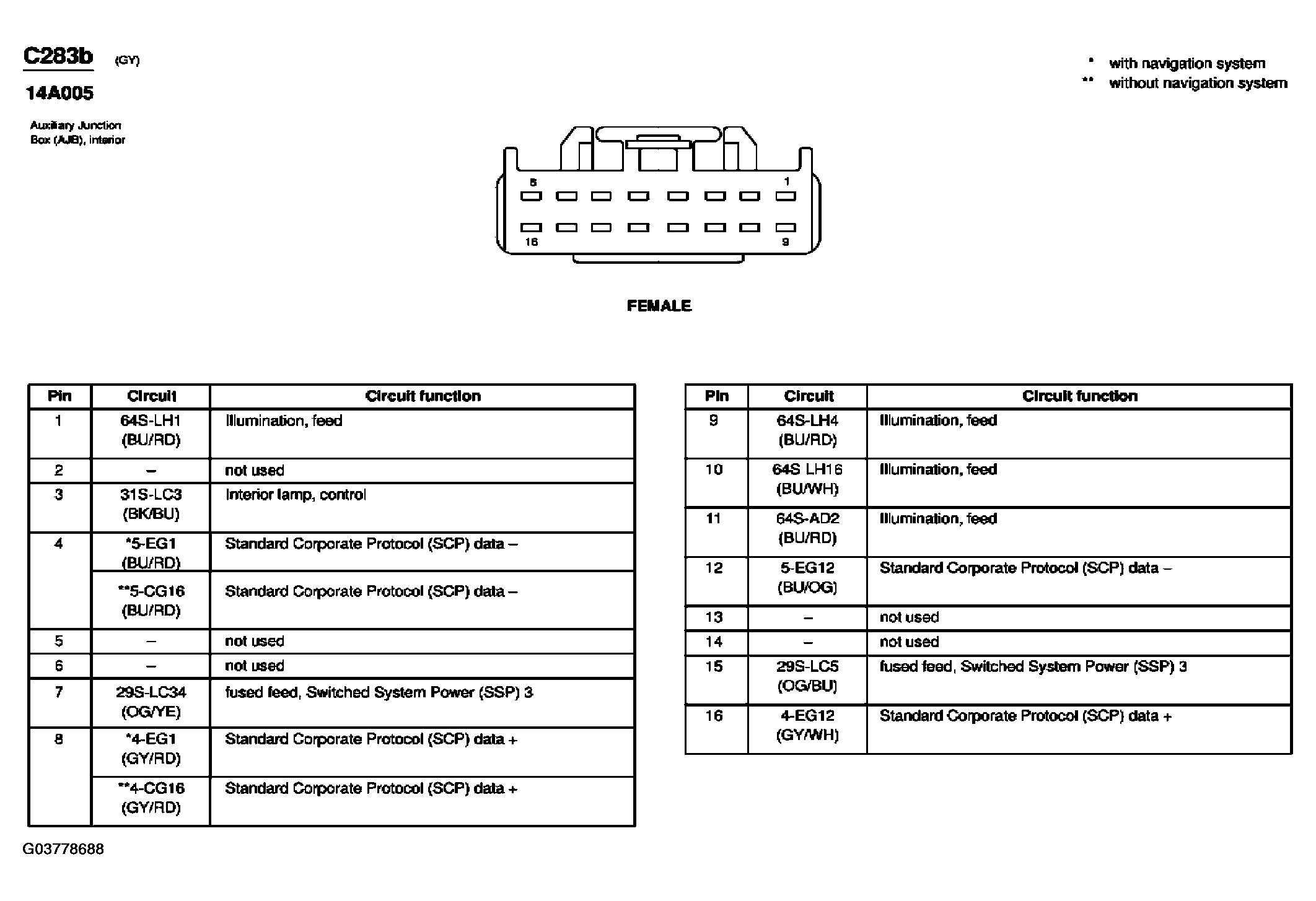

Fig 1: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)
G03778688Courtesy of FORD MOTOR CO.
