Identifying Connector C501d

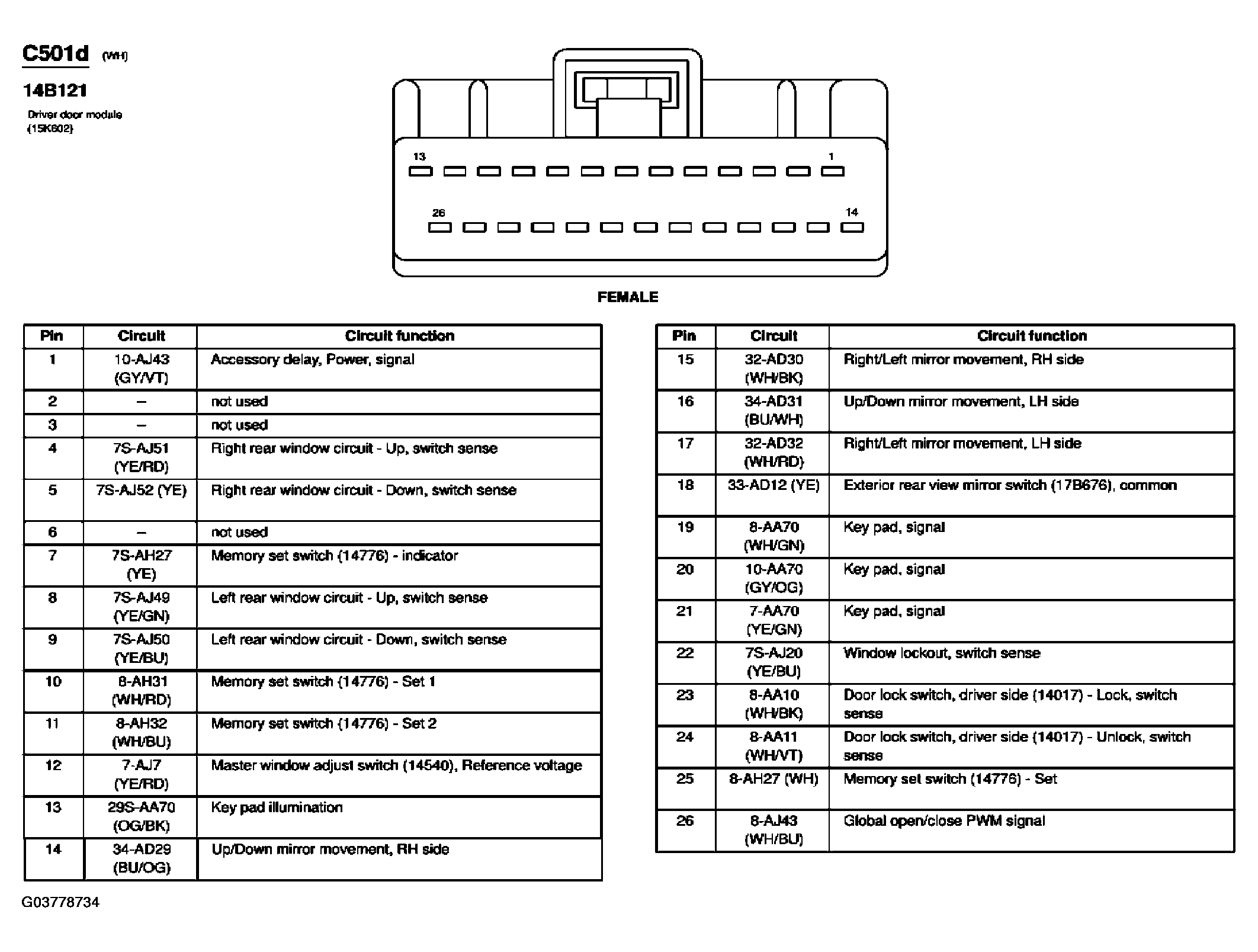

Fig 1: Driver Door Module Connector End View (C501d)
G03778734Courtesy of FORD MOTOR CO.
