Seat Control Switch - 6-Way: Installation

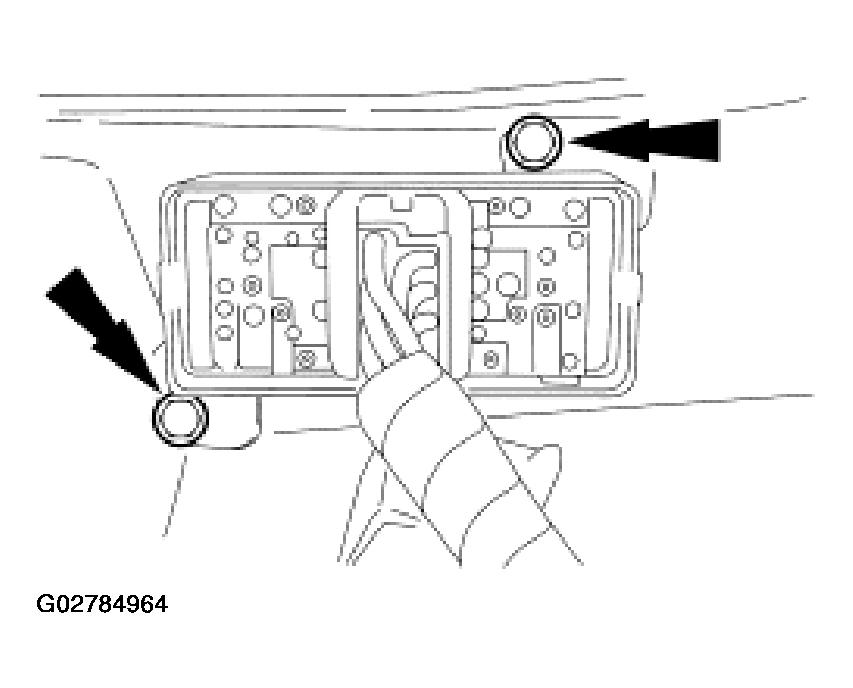

Install the 6-way power seat switch on the side shield and install the two screws.

Fig 1: Installing 6-Way Power Seat Switch On Side Shield
Courtesy of FORD MOTOR CO.

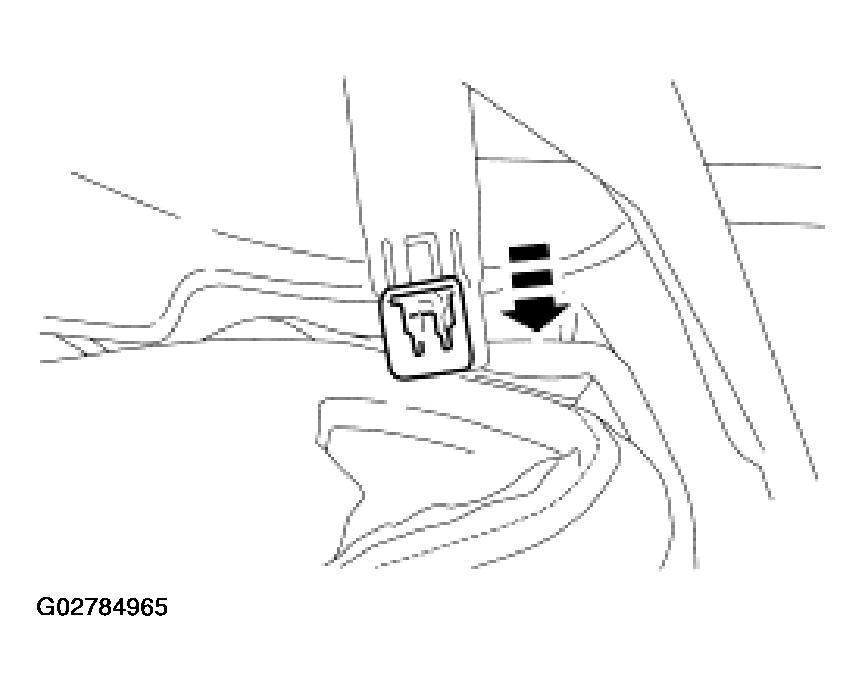

Push to install the rear side shield retainer on seat frame.

Fig 2: Installing Rear Side Shield Retainer On Seat Frame
Courtesy of FORD MOTOR CO.

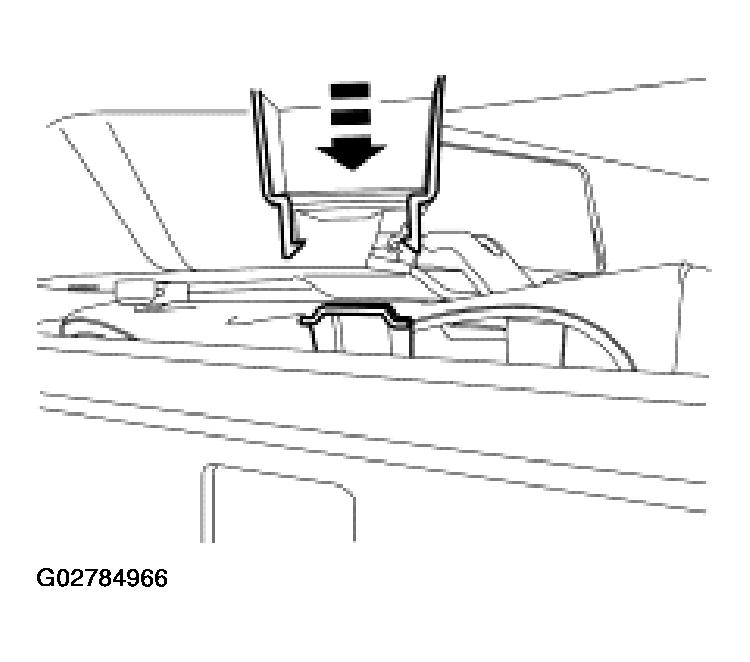

Push to install the middle side shield retainer on the seat.

Fig 3: Installing Middle Side Shield Retainer On Seat
Courtesy of FORD MOTOR CO.

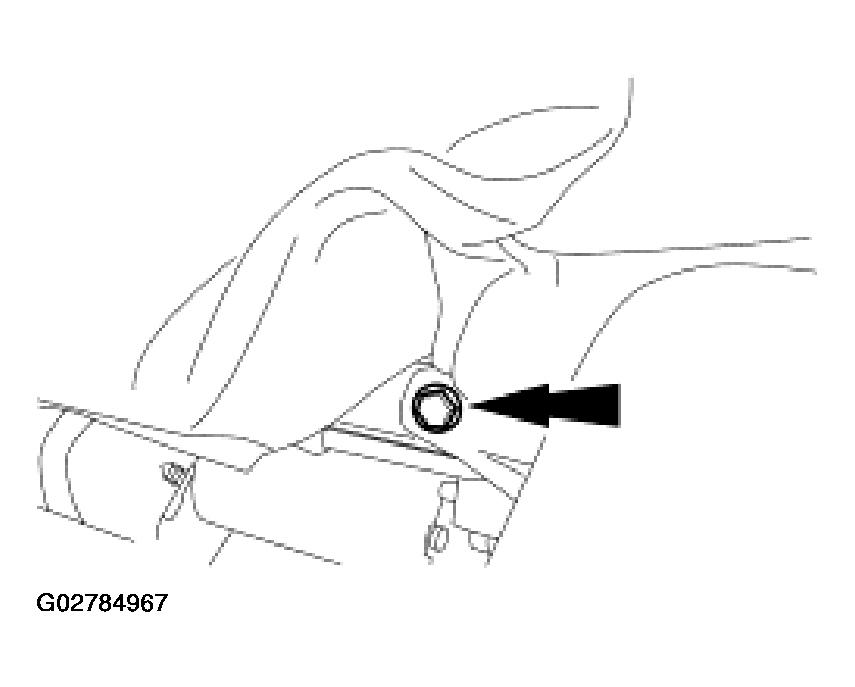

Access and install the front side shield screw.

Fig 4: Installing Front Side Shield Screw
Courtesy of FORD MOTOR CO.

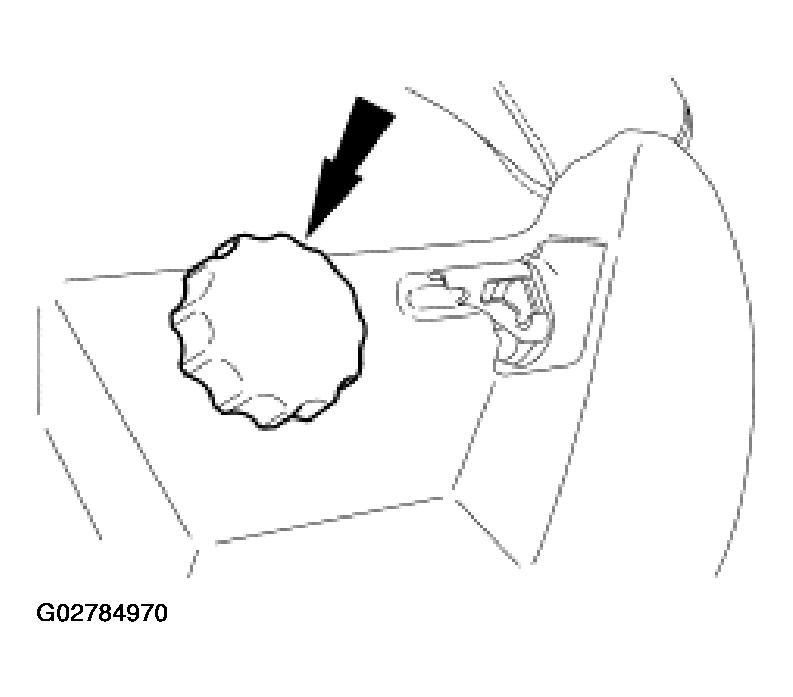

Install the 6-way power seat knob.

Fig 5: Installing 6-Way Power Seat Knob
Courtesy of FORD MOTOR CO.

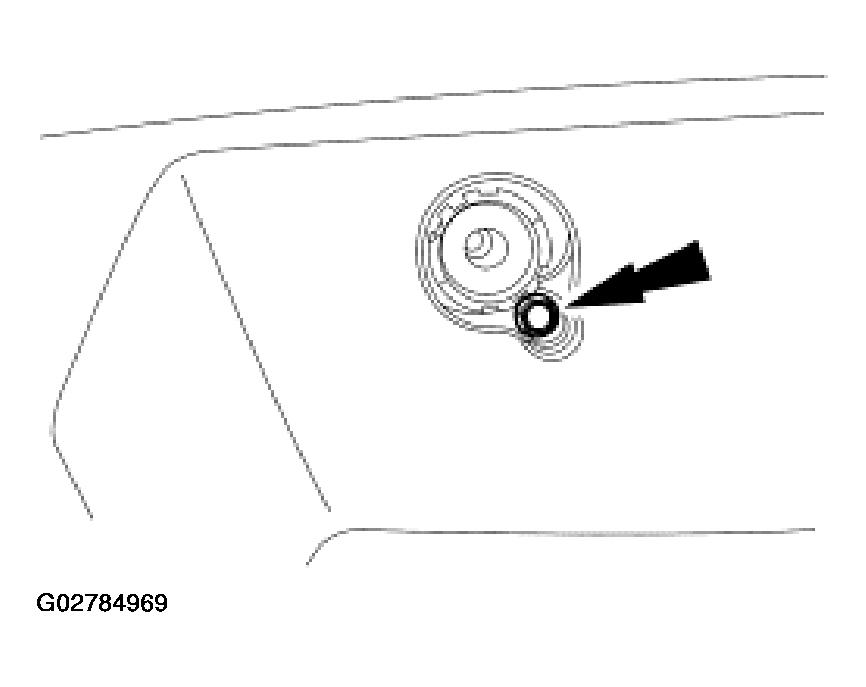

Install the screw on the side shield under the lumbar knob.

Fig 6: Installing Screw On Side Shield Under Lumbar Knob
Courtesy of FORD MOTOR CO.
Align and install the lumbar knob.

Fig 7: Aligning And Installing Lumbar Knob
Courtesy of FORD MOTOR CO.

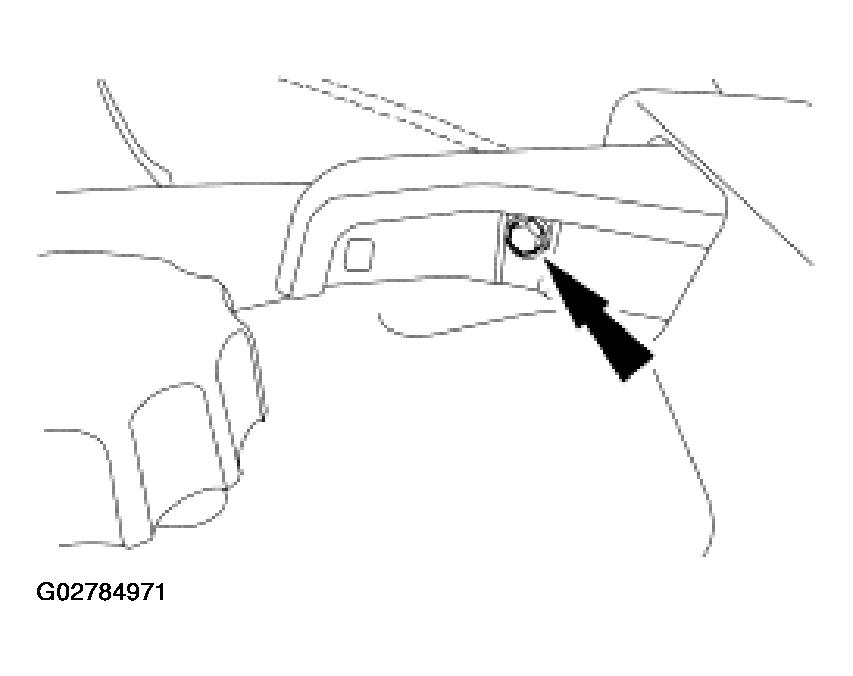

Install the recliner handle and install the screw.

Fig 8: Installing Recliner Handle
Courtesy of FORD MOTOR CO.

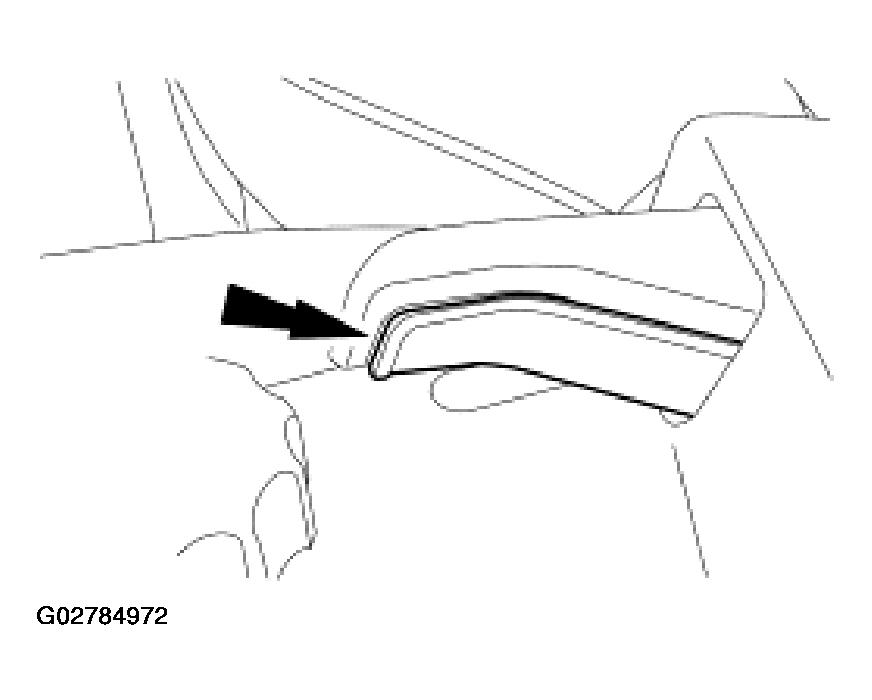

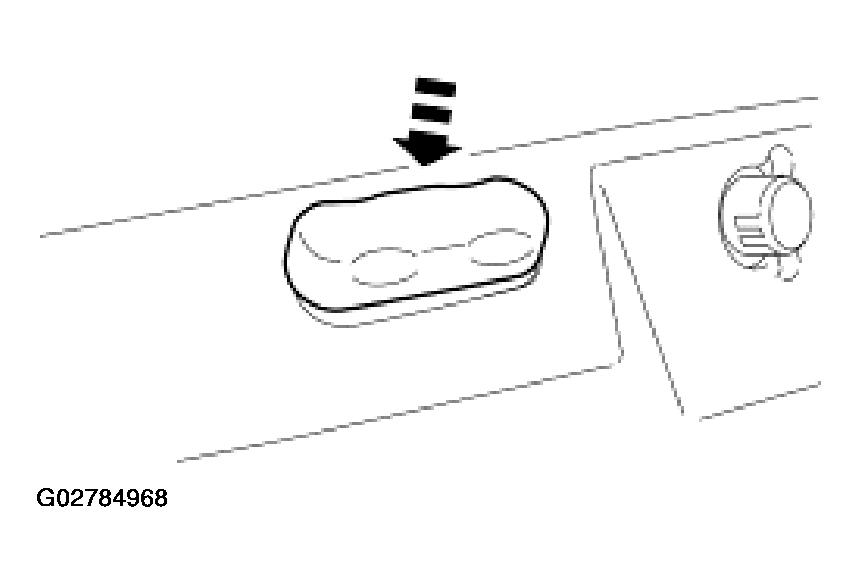

Install the recliner handle cover.

Fig 9: Installing Recliner Handle Cover
Courtesy of FORD MOTOR CO.

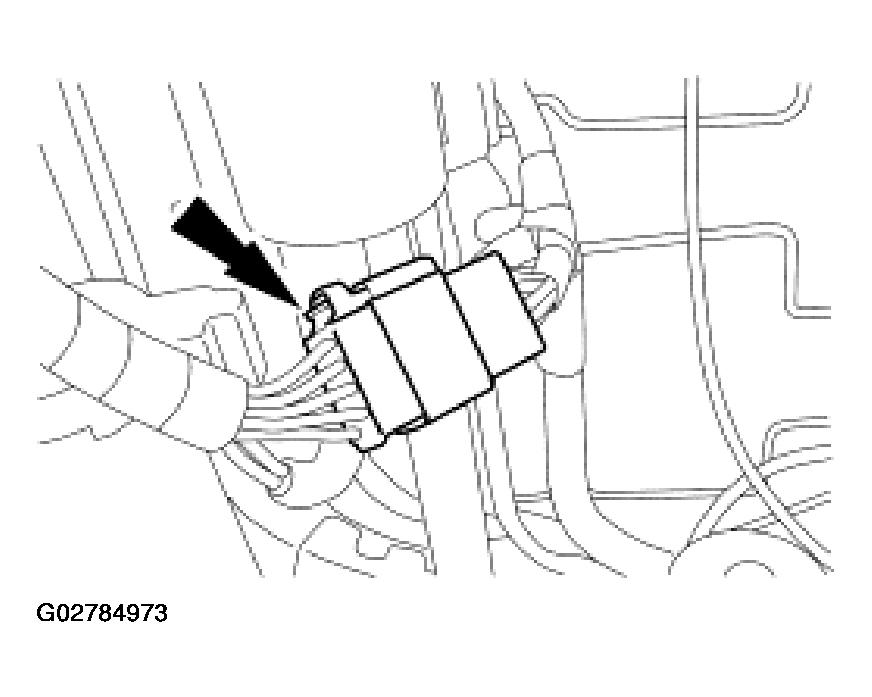

Connect the 6-way power seat switch electrical connector.

Fig 10: Connecting 6-Way Power Seat Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Install the affected seat and repower the SRS. For additional information, refer to FRONT SEAT - 40 PERCENT .
