Seat Control Switch - 8-Way: Installation

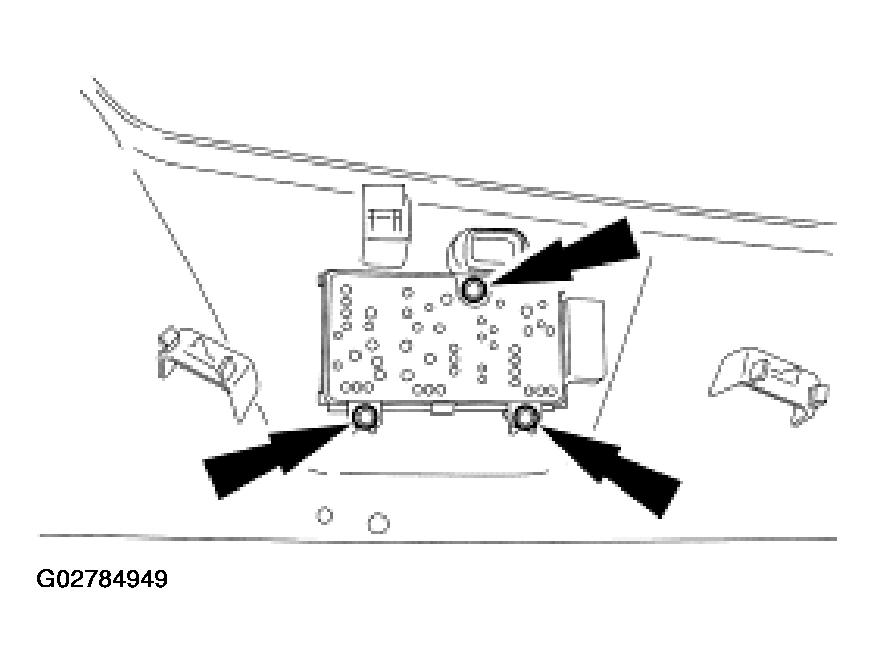

  1. Install the power seat switch and install the three screws.
    Fig 1: Installing Power Seat Switch
    G02784949Courtesy of FORD MOTOR CO.

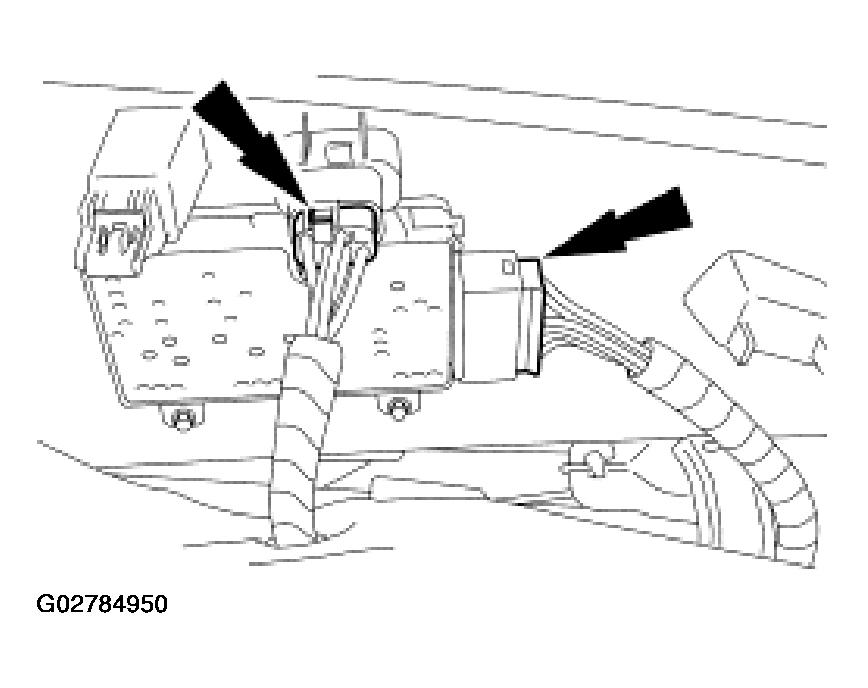

  2. Connect the 8-way power seat and power lumbar switch electrical connectors.
    Fig 2: Connecting 8-Way Power Seat And Power Lumbar Switch Electrical Connectors
    G02784950Courtesy of FORD MOTOR CO.

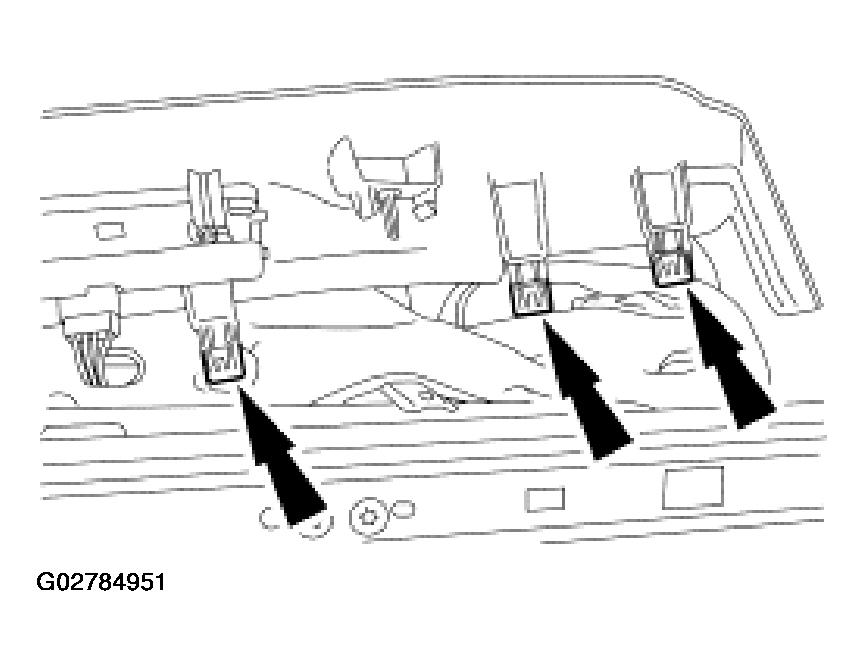

  3. Push to install the three side shield retainers onto the seat frame.
    Fig 3: Installing Side Shield Retainers Onto Seat Frame
    G02784951Courtesy of FORD MOTOR CO.

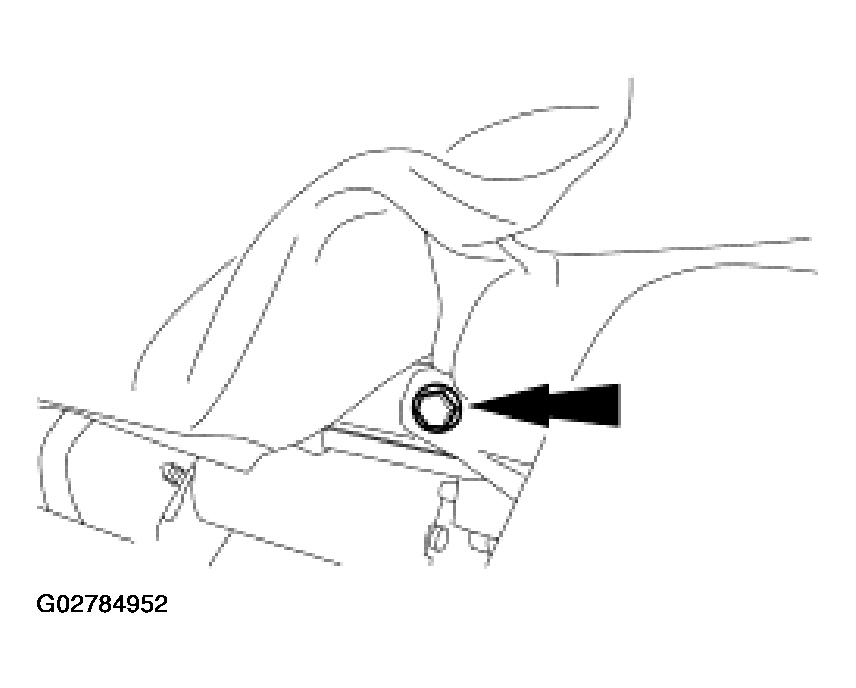

  4. Access and install the front side shield screw.
    Fig 4: Installing Front Side Shield Screw
    G02784952Courtesy of FORD MOTOR CO.

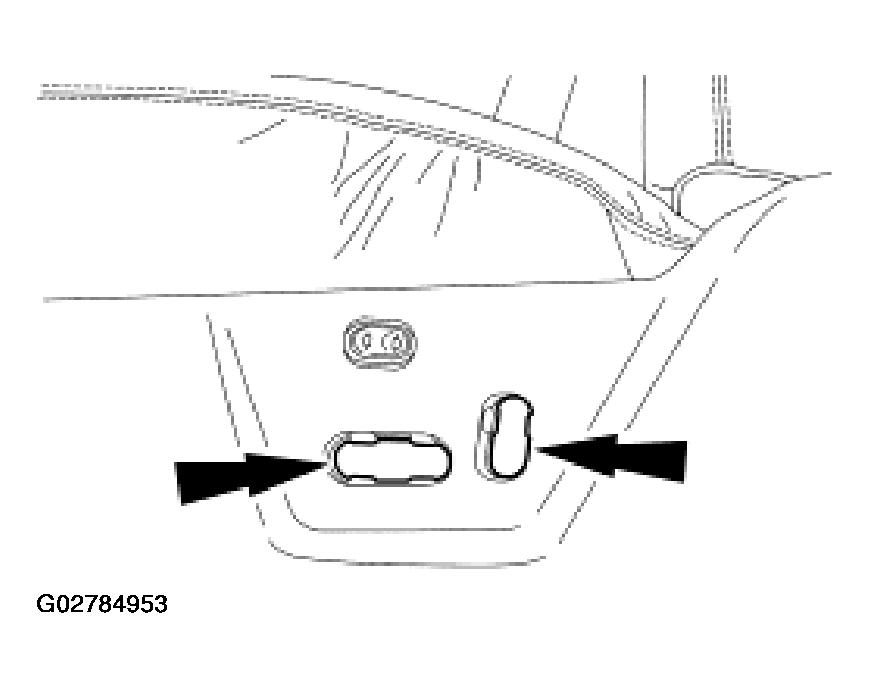

  5. Install the two power seat knobs.
    Fig 5: Installing Power Seat Knobs
    G02784953Courtesy of FORD MOTOR CO.
  6. Install the affected seat and repower the SRS. For additional information, refer to FRONT SEAT - 40 PERCENT .
