Lamp Assembly-Map: Removal

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the map lamp assembly.
    1. Carefully release the lamp lens.
      2. NOTE: Identify the location of each screw to aid in the installation of the map lamp assembly.
    2. Remove interior lamp screws.
    3. Remove the map lamp assembly.

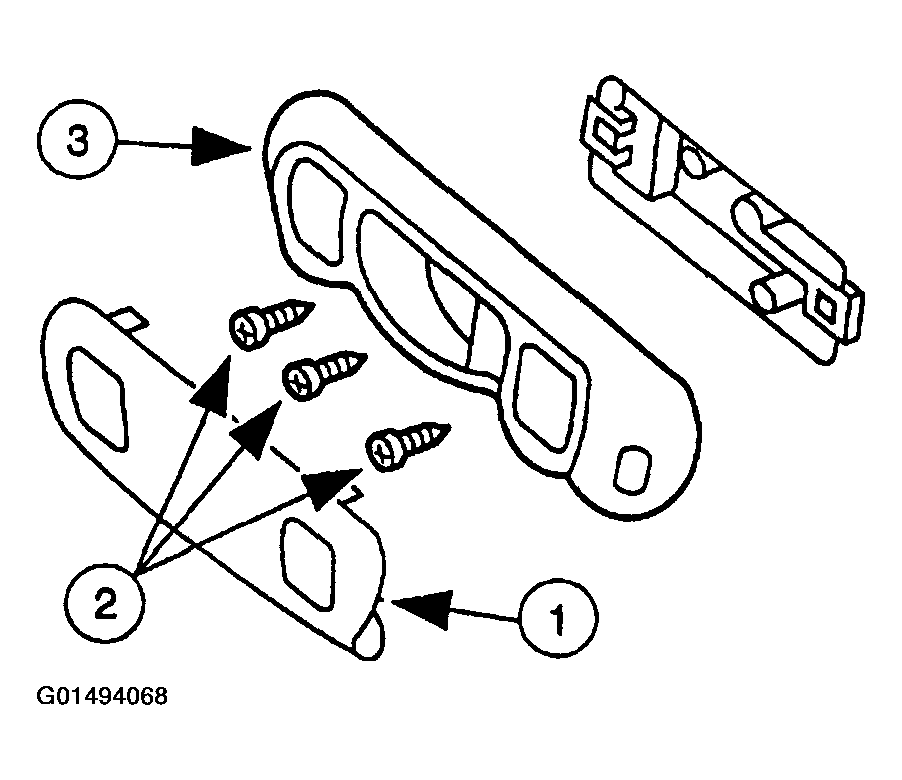

      Fig 1: Removing Interior Lamp Screws
      G01494068Courtesy of FORD MOTOR CO.
