Emissions Recall 04E08 - Powertrain Control Module Replacement (04E08)

SUBJECT

STOP SALE/DELIVERY HOLD:  Emissions Recall 04E08:

Certain In-Stock 2004 Model Year Expedition and Navigator Vehicles Equipped with 4.6L or 5.4L Engines and Non-California Emissions, Delivered to Dealers in New York and Vermont

Powertrain Control Module Replacement

REF

• Advance Notification Bulletin - Emission Recall 04E08 dated February 13, 2004
• Emission Certification - Related Sales Restrictions - 2004 Passenger Car and Truck Letter Dated April 10, 2003

AFFECTED VEHICLES

Certain in-stock 2004 model year Expedition and Navigator vehicles equipped with 4.6L or 5.4L engines, built at the Michigan Truck Assembly Plant from Job # 1 through January 22, 2004. The affected vehicles were produced with non-California emissions certification and delivered to dealers in New York and Vermont. Affected vehicles are identified in OASIS.

In addition, visit https://web.fsavinlists.dealerconnection.com  for a list of vehicles assigned to your dealership.

REASON FOR THIS STOP SALE/DELIVERY HOLD/EMISSIONS RECALL

Vehicles intended for sale and registration in the states of New York, Vermont, California, Maine, or Massachusetts require California emissions. Some dealers in New York and Vermont incorrectly ordered the affected vehicles (approximately 237 in dealer stock) without making an entry in column 42 of the Vehicle Order. If column 42 on the Vehicle Order was left blank, the affected vehicles were calibrated with non-California emissions.

SERVICE ACTION

Dealers are required to clarify their original ordering intention for all of their affected in-stock vehicles by utilizing the appropriate repair information contained in Attachment II. Vehicles intended for sale and registration in New York, Vermont, California, Maine, or Massachusetts require the replacement of the Powertrain Control Module (PCM), the VECI Label, Monroney Window Label, and Vehicle Content Label.

PLEASE NOTE:  Sale of uncorrected vehicles for registration in New York, Vermont, California, Maine, or Massachusetts could result in the imposition of civil penalties. Please reference the Emissions Certification Related Sales Restrictions for 2004 Passenger Car and Truck for further information, which is posted with this bulletin.

ATTACHMENTS

1. Attachment I: Administrative Information
2. Attachment II: Labor Allowances and Parts Ordering Information
3. Attachment III: Technical Information

QUESTIONS?

1. Claims Information: ............................................................ 1-800-423-8851
2. Special Service Support Center (Dealer Only) Questions: .......... 1-800-325-5621

OASIS ACTIVATED?

Yes

FSA VIN LIST ACTIVATED?

Yes

Available through FMCDealer.com or at https://web.fsavinlists.dealerconnection.com  .

IN-STOCK VEHICLES

Correct all affected in-stock vehicles before delivery, if the vehicle will be registered in New York, Vermont, California, Maine, or Massachusetts.

RELATED DAMAGE

Related damage claims are not approved for this program.

ADDITIONAL LABOR TIME

This repair will require no additional labor time to complete. Claims submitted with "MT" labor will not be accepted for reimbursement.

OWNER REFUNDS

Refunds are not authorized for this program.

RENTAL VEHICLES

The use of rental vehicles is not authorized for this program.

CLAIMS PREPARATION AND SUBMISSION

• Enter claims using Direct Warranty Entry (DWE).
• Refer to ACESII manual for claims preparation and submission information.

LABOR ALLOWANCES

* Dealers must determine and designate their sales intentions for each of their affected in-stock vehicles by selecting one of the labor operations above.

PARTS REQUIREMENTS / ORDERING INFORMATION

Dealers must determine the ordering intentions for all of their affected in-stock vehicles. For those vehicles that are intended for sale and registration in New York, Vermont, California, Maine, or Massachusetts, contact the Special Service Support Center at 1-800-325-5621 to order parts, labels, and documents. When calling this number, identify Emissions Recall 04E08, have the VIN of the dealer in-stock vehicle to be serviced, the VECI label 3-character suffix, PCM catchword and PCM part number (refer to Attachment III, steps 1 thru 4). The Special Service Support Center will place an order for your PCM requirements and ship a package containing the necessary labels and documents to your dealership.

For vehicles intended to be sold and registered outside of New York, Vermont, California, Maine, or Massachusetts, no service action is required.

POWERTRAIN CONTROL MODULES

OVERVIEW

The affected vehicles were built with non-California emissions certification. This service must be performed if the vehicle will be sold and registered in New York, Vermont, California, Maine or Massachusetts. This program involves replacing the PCM, the VECI label, vehicle description (Monroney) label and the content label. After the PCM is replaced, the PCM must be programmed with certain vehicle information.

SERVICE PROCEDURE

1. Open the hood.
2. NOTE: The tear tag is located on the dash panel near the PCM and is approximately 1 inch wide and 1/2 inch high.

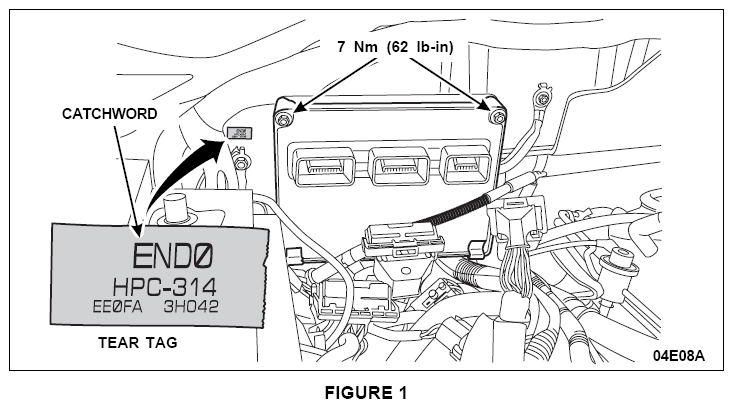

   Locate tear tag and record the 4-character catchword. See Figure 1.

3. NOTE: The VECI label is located on the radiator sight shield.

   Record the VECI label 3-character suffix.

4. Refer to the following chart. Locate the recorded catchword and VECI label suffix in the "ORIGINAL EQUIPMENT" rows. The "REPLACEMENT" rows provide the new  part information. To order replacement parts and documents, call the Special Service Support Center at 1-800-325-5621.
   NOTE: Along with the replacement PCM, a new  VECI label, Vehicle Description (Monroney) label, Content Label and invoice will be supplied. BE SURE TO PROVIDE THE INVOICE TO THE NEW CAR SALES MANAGER  .
   EQUIPMENT INFORMATION



   EXPEDITION	PCM	CATCHWORD	VECI LABEL
   Original Equipment	-	JFP0	4W7E-9C485-LUX
   Replacement	4L1Z-12A650-KA	KAM0	4W7E-9C485-LDP
   Original Equipment	-	NBS0	4W7E-9C485-LUX
   Replacement	4L1Z-12A650-MA	MPX0	4W7E-9C485-LDP
   Original Equipment	-	SEV0	4W7E-9C485-LUX
   Replacement	4L1Z-12A650-TA	TDK0	4W7E-9C485-LDP
   Original Equipment	-	RPM1	4W7E-9C485-LTP
   Replacement	4L1Z-12A650-PB	PGT1	4W7E-9C485-LKF

   EQUIPMENT INFORMATION



   NAVIGATOR	PCM	CATCHWORD	VECI LABEL
   Original Equipment	-	END0	4W7E-9C485-LTP
   Replacement	4L7Z-12A650-DA	DJN0	4W7E-9C485-LKF

5. Remove the original tear tag and replace it with the one supplied with the PCM.
6. Record the radio stations and disconnect the battery ground cable.
7. Disconnect the PCM connectors.
8. Remove the PCM retaining bolts and remove the PCM from the vehicle.
9. Install the new  PCM and tighten the retaining bolts to 7 Nm (62 lb-in).
10. Connect the PCM connectors.
11. Connect the battery ground cable.
12. Remove the original VECI label from the radiator sight shield. Clean the surface, then install the new  VECI label in its place.
13. Using WDS and the proper PCM part number and/or catchword information provided in the previous chart, program the PCM to the new  California emissions standards.
14. Reset the recorded radio stations.

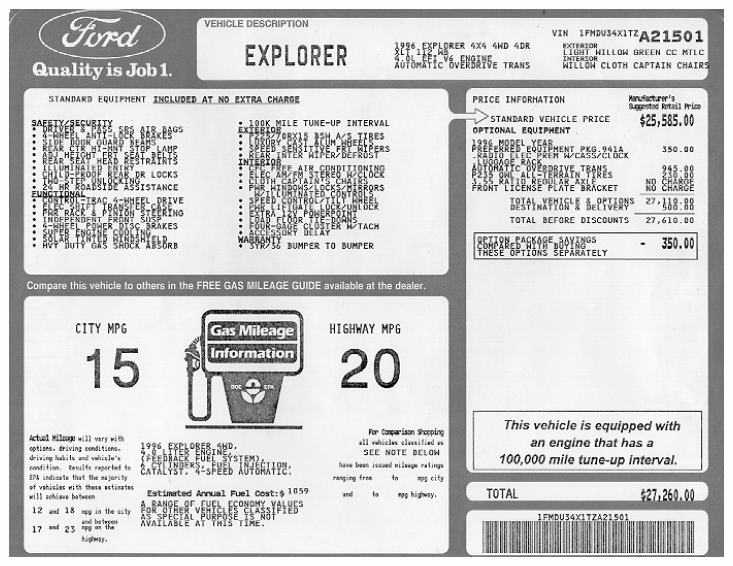

15. Replace the vehicle description (Monroney) label and the content label (located on the door window glass) with the labels supplied. The Authorized Modifications label is not required.
