Band/Clutch Application Chart A

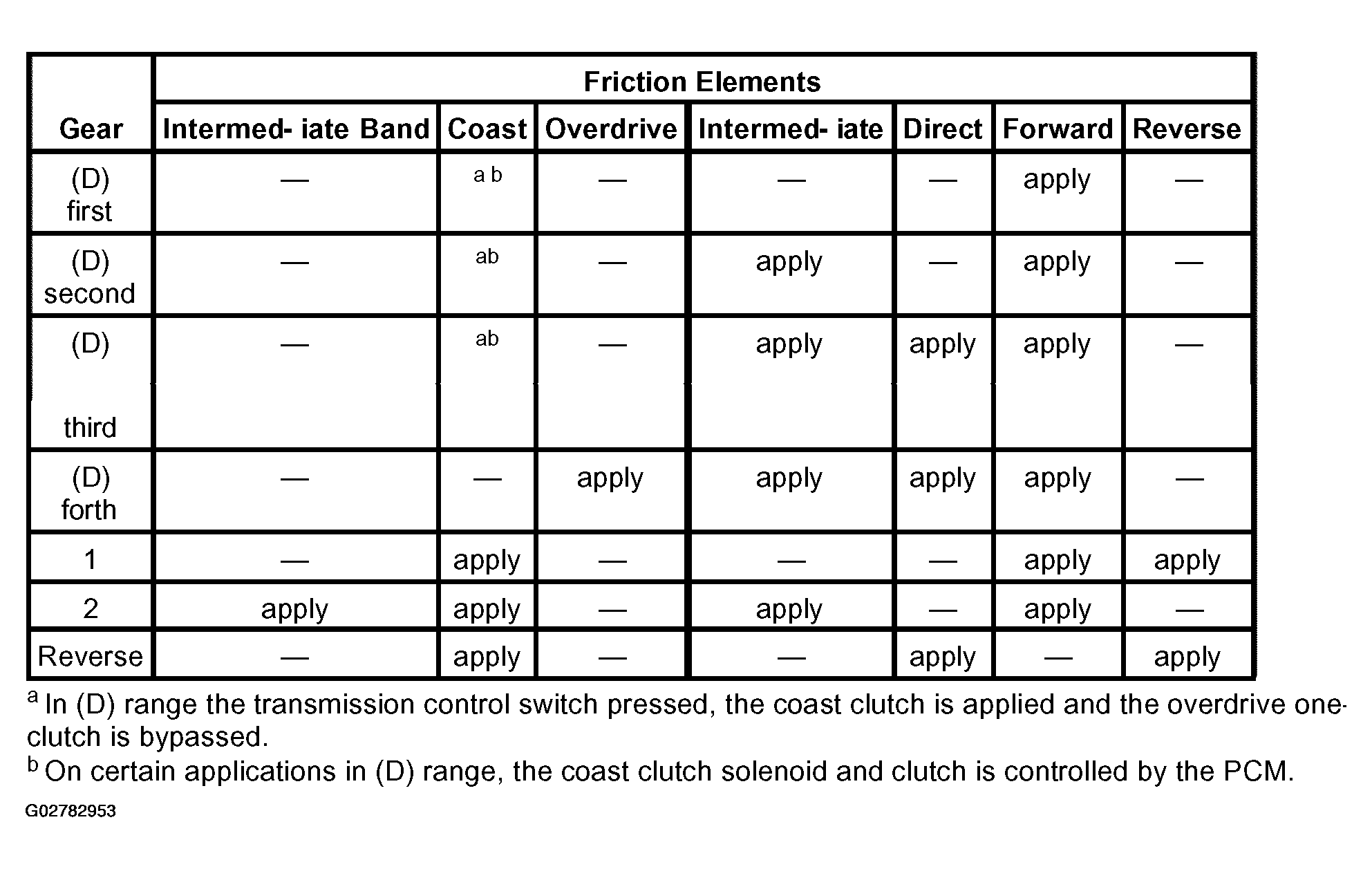

Fig 1: Band/Clutch Application Chart A
G02782953Courtesy of FORD MOTOR CO.
