Pinpoint Test A: No Communication With The Abs Module

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

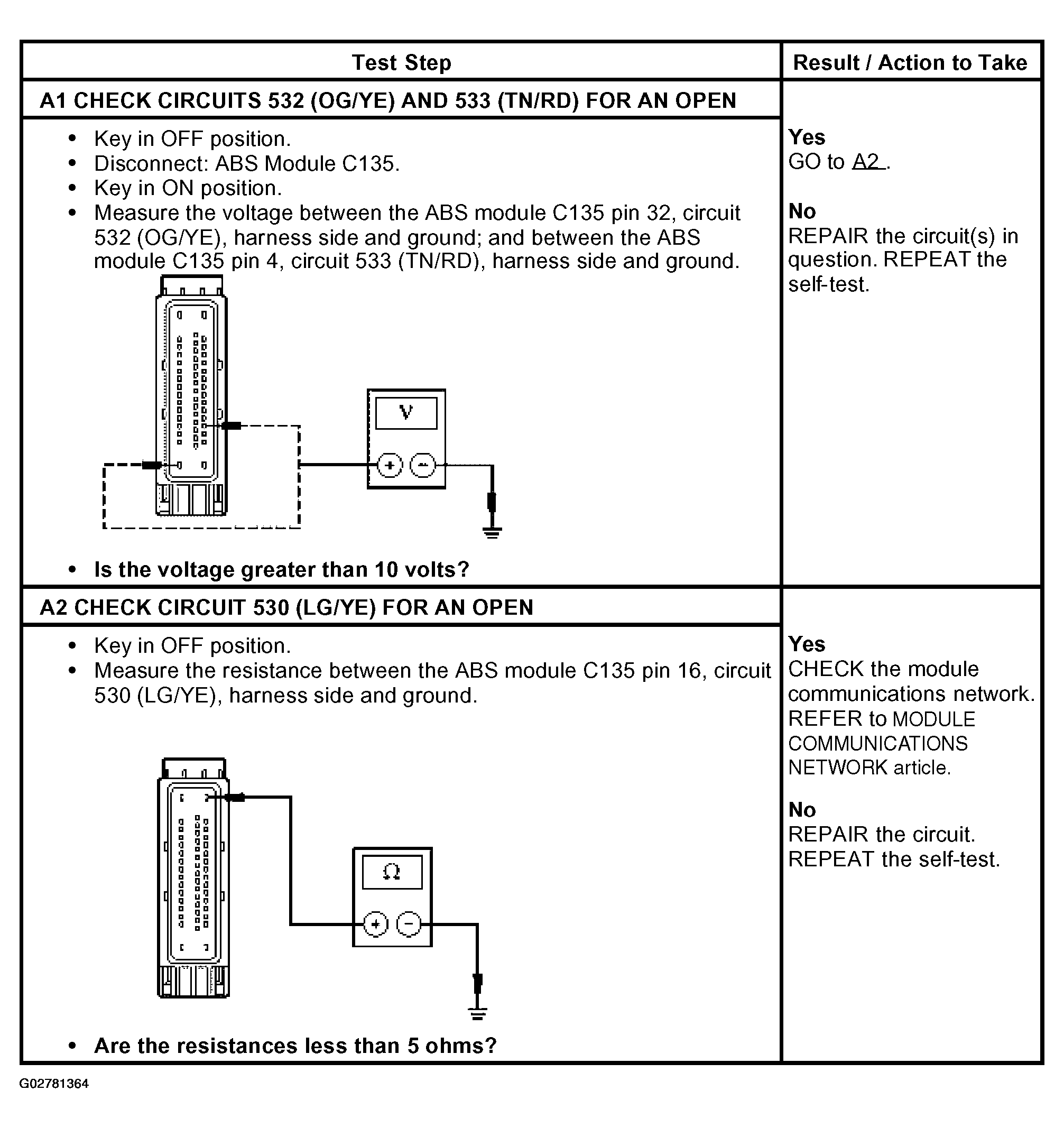

Fig 1: Pinpoint Test A: No Communication With ABS Module (A1 - A2)

Courtesy of FORD MOTOR CO.
