Component Identification

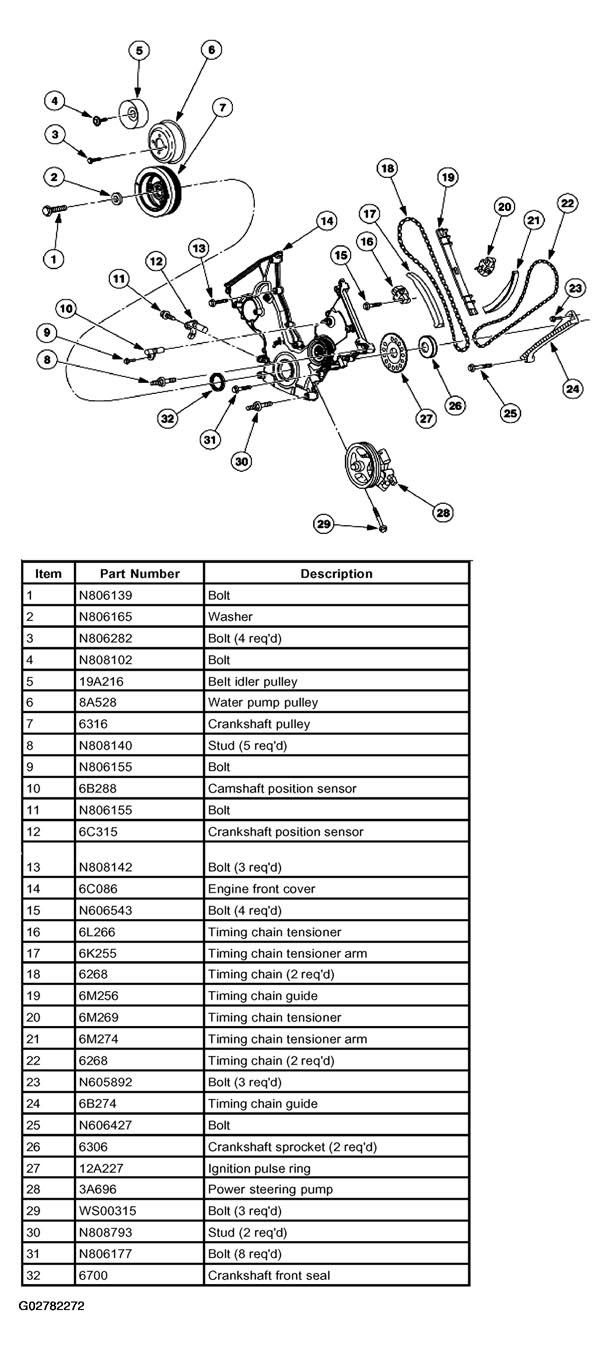

Fig 1: Identifying Components On Front Of Motor

Courtesy of FORD MOTOR CO.

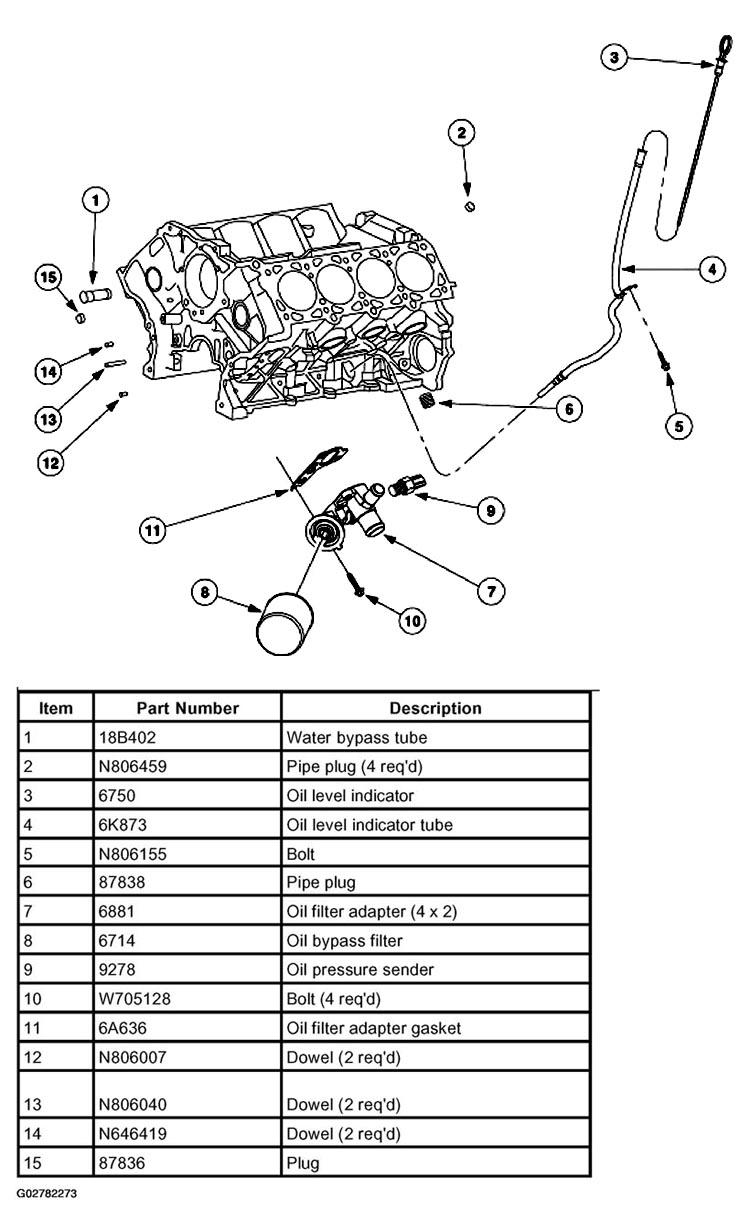

Fig 2: Identifying Exterior Block Components

Courtesy of FORD MOTOR CO.

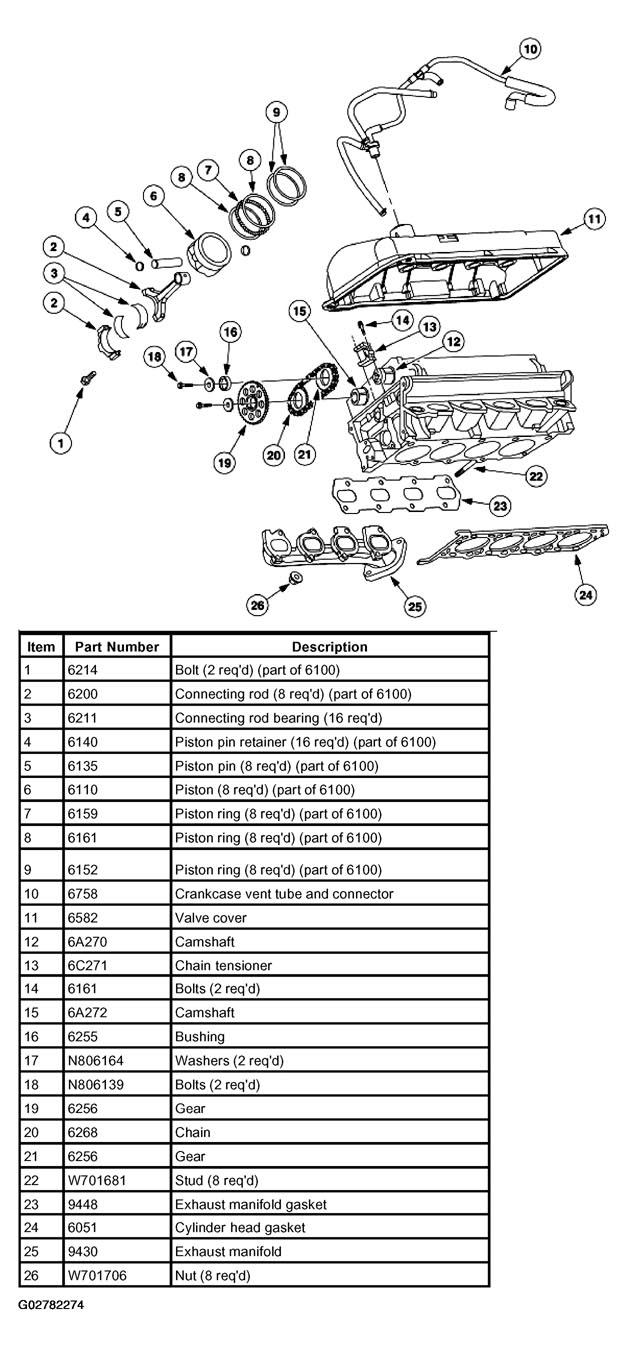

Fig 3: Identifying Piston & Cylinder Head Components

Courtesy of FORD MOTOR CO.

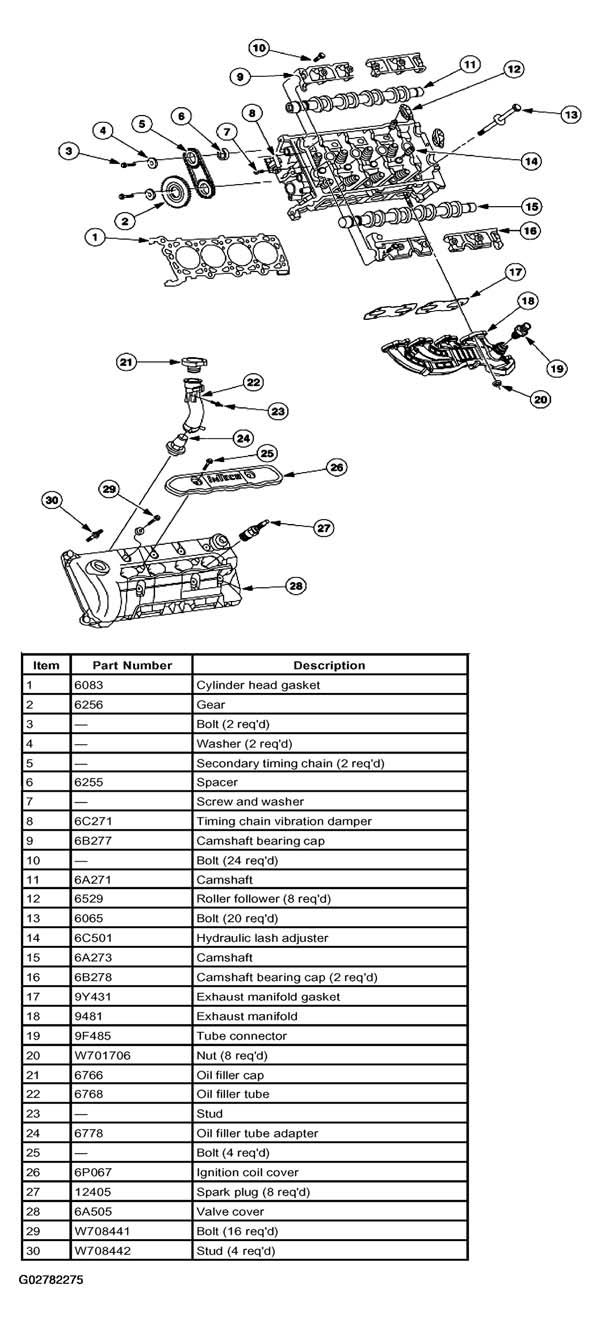

Fig 4: Identifying Cylinder Head Components

Courtesy of FORD MOTOR CO.

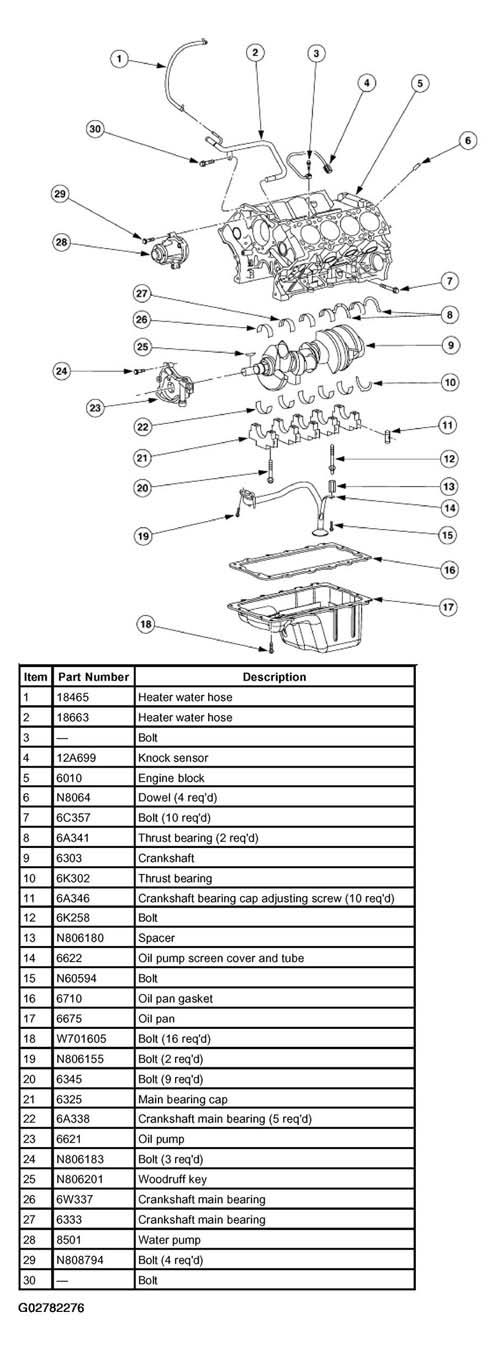

Fig 5: Identifying Engine Block Components

Courtesy of FORD MOTOR CO.

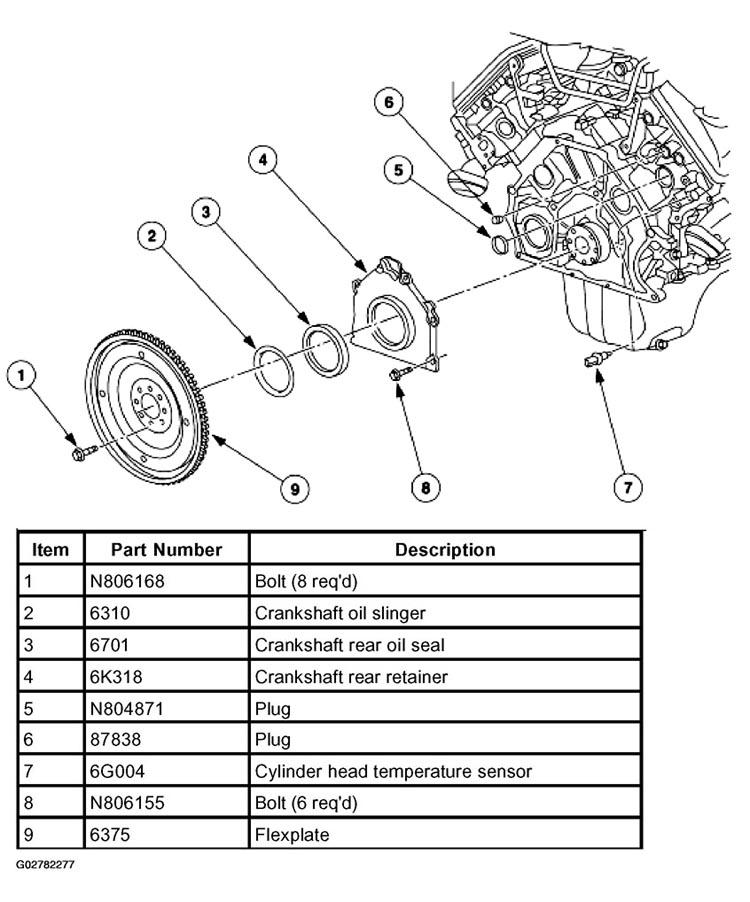

Fig 6: Identifying Flex Plate Components

Courtesy of FORD MOTOR CO.

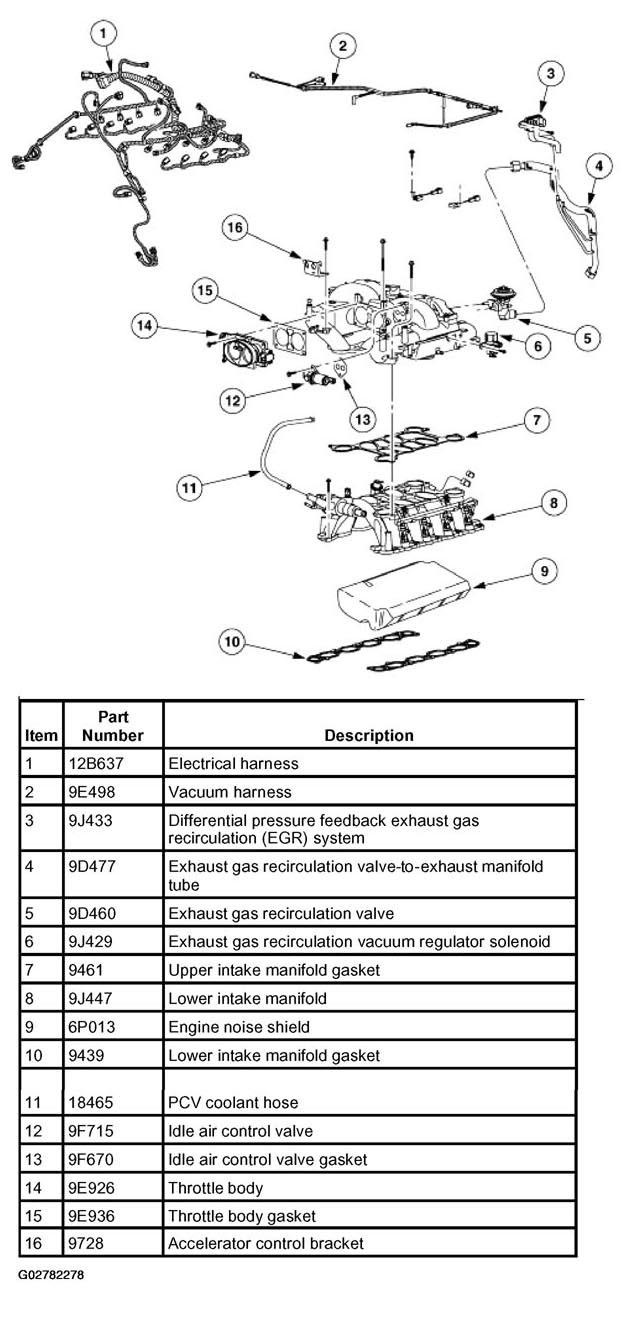

Fig 7: Identifying Intake Manifold Components

Courtesy of FORD MOTOR CO.
