Engine Mount: Installation

    RH engine mount

  1. Position the engine mount and bracket into the vehicle, and install the bolts.

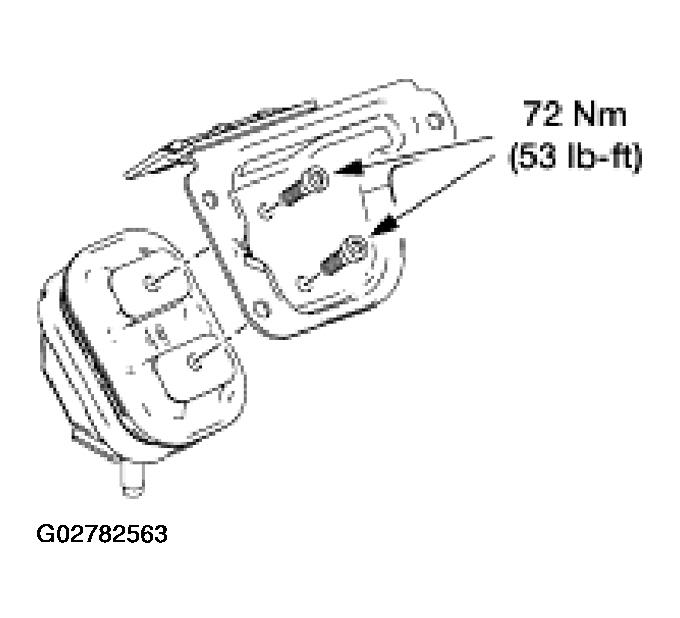

    Fig 1: Installing Bolts
    G02782563Courtesy of FORD MOTOR CO.
    2. CAUTION: Clean the engine mount-to-cylinder block and engine mount-to-chassis mating surfaces of any dirt or foreign material prior to installation.

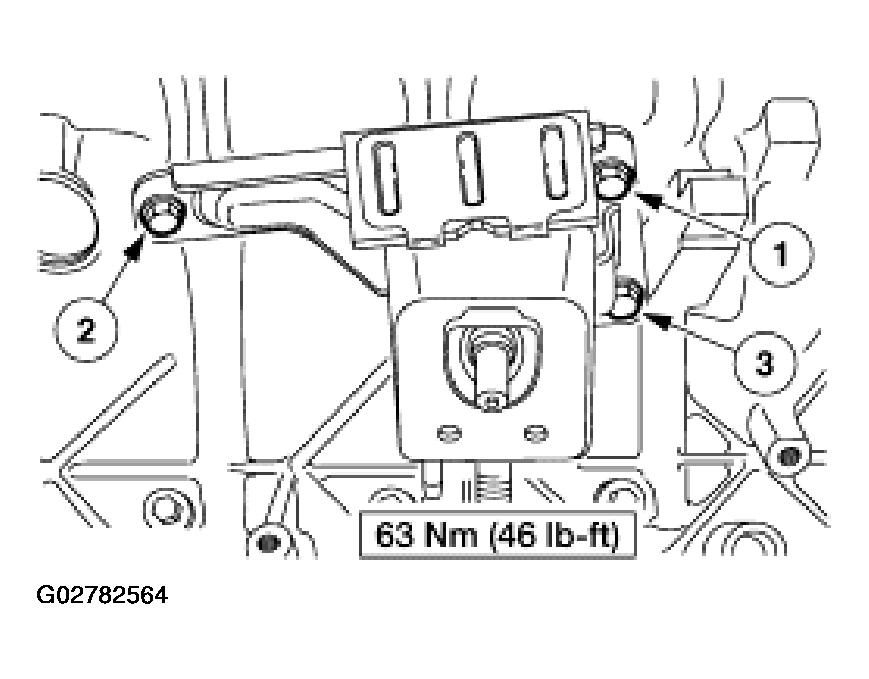

    Fig 2: Installing RH Engine Mount Bolts In Sequence
    G02782564Courtesy of FORD MOTOR CO.
  2. Install the RH engine mount bolts in the sequence shown.
  3. Lower the engine into position.
  4. Install the starter motor. For additional information, refer to STARTERS .

    5. LH engine mount

  5. Position the engine mount and bracket into the vehicle, and install the bolts.

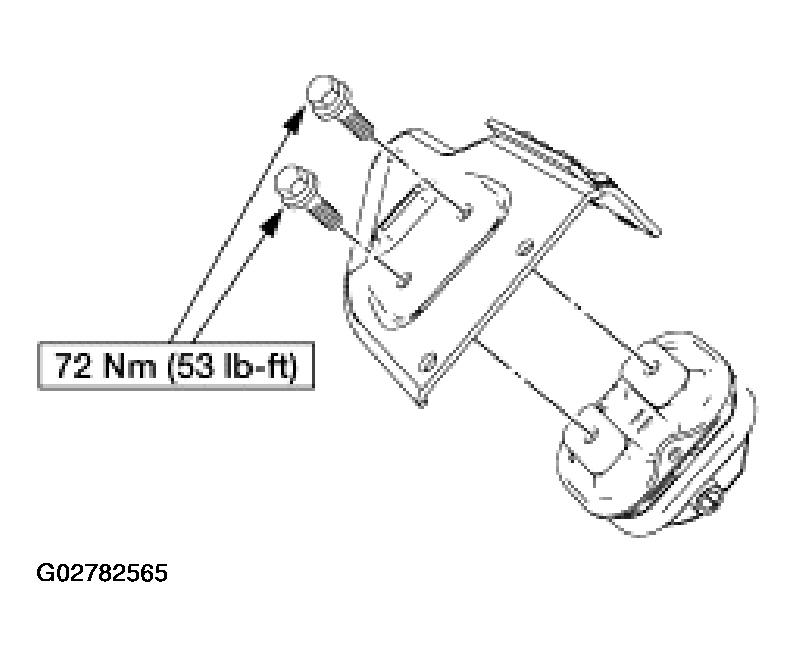

    Fig 3: Installing Bolts
    G02782565Courtesy of FORD MOTOR CO.
    6. CAUTION: Clean the engine mount-to-cylinder block and engine mount-to-chassis mating surfaces of any dirt or foreign material prior to installation.

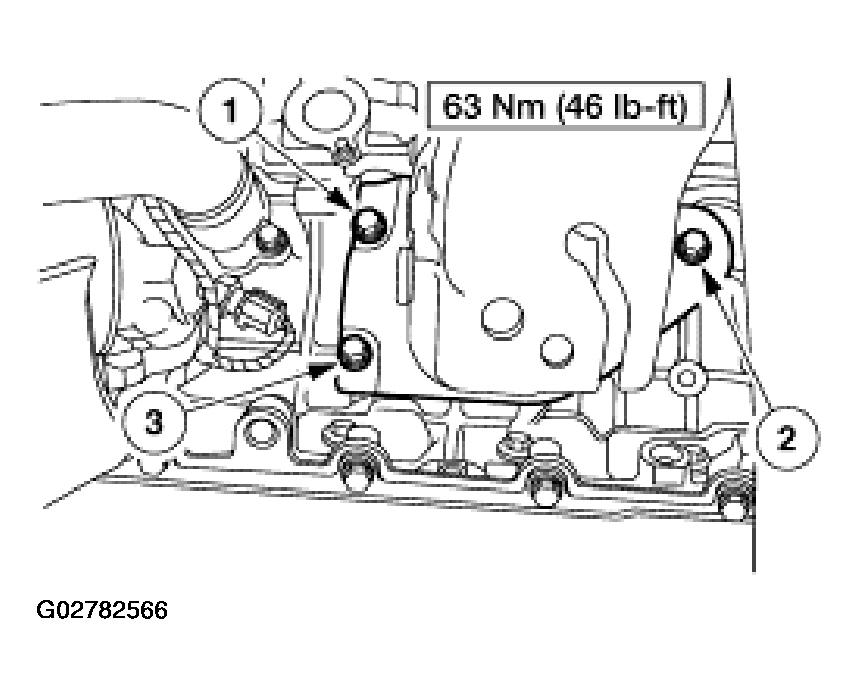

    Fig 4: Installing LH Engine Mount Bolts In Sequence
    G02782566Courtesy of FORD MOTOR CO.
  6. Install the LH engine mount bolts in the sequence shown.
  7. Lower the engine into position.
    8. NOTE: Exhaust manifold removed for clarity.
    NOTE: Lubricate the new O-ring seal with clean engine oil.

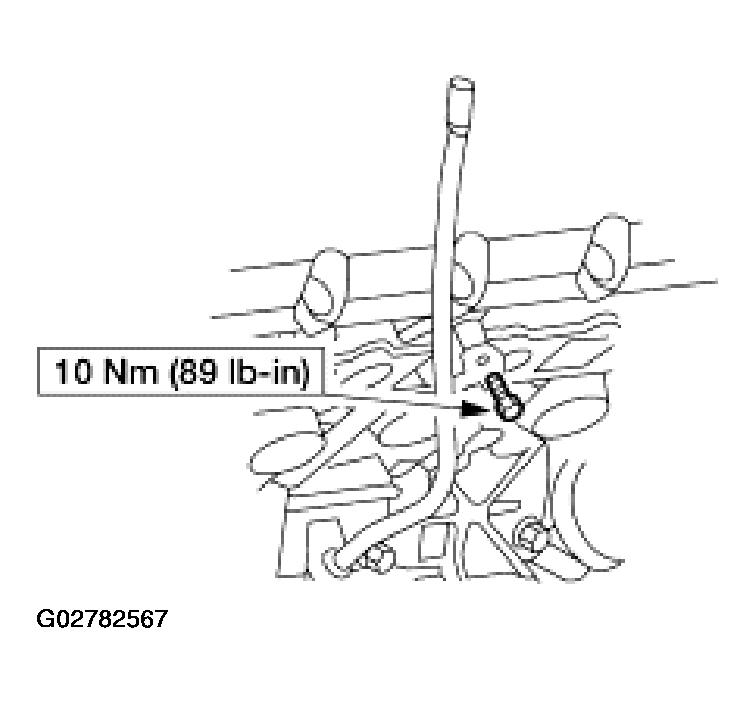

    Fig 5: Installing Bolt
    G02782567Courtesy of FORD MOTOR CO.
  8. Position the oil level indicator and install the bolt.

    9. All engine mounts

    CAUTION: Only use hand tools when installing the LH engine mount through bolt or damage to the cage nut can occur.
    NOTE: If the LH engine mount through bolt nut is missing or damaged install a new nut using service part number W709375. If the LH engine mount through bolt nut cage is damaged or missing, remove the cage and install a new nut using service part number W520516-S301.

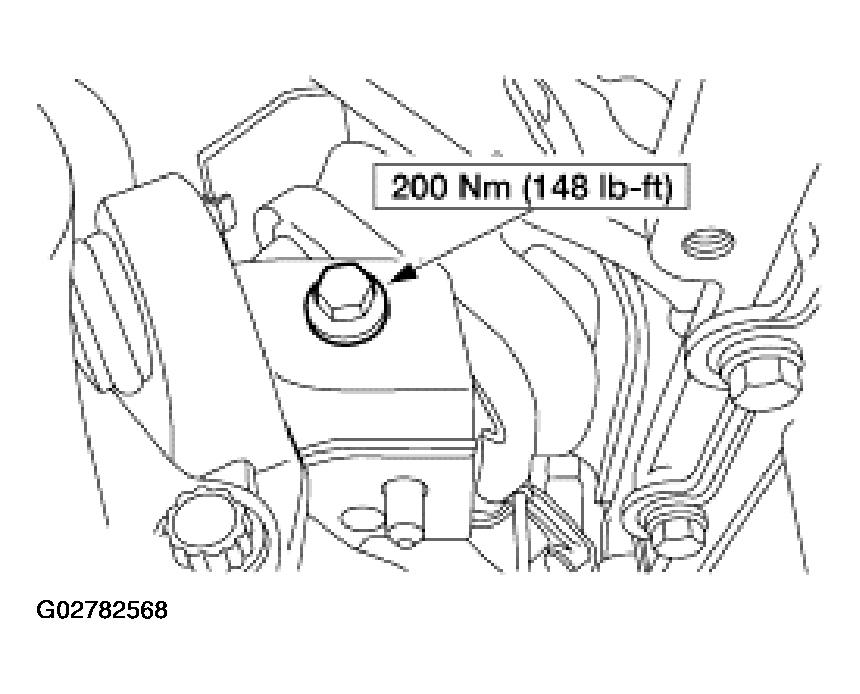

    Fig 6: Installing LH Engine Mount Through Bolt
    G02782568Courtesy of FORD MOTOR CO.
  9. Install the LH engine mount through bolt.
    10. CAUTION: Only use hand tools when installing the LH engine mount nut or damage to the engine mount can occur.

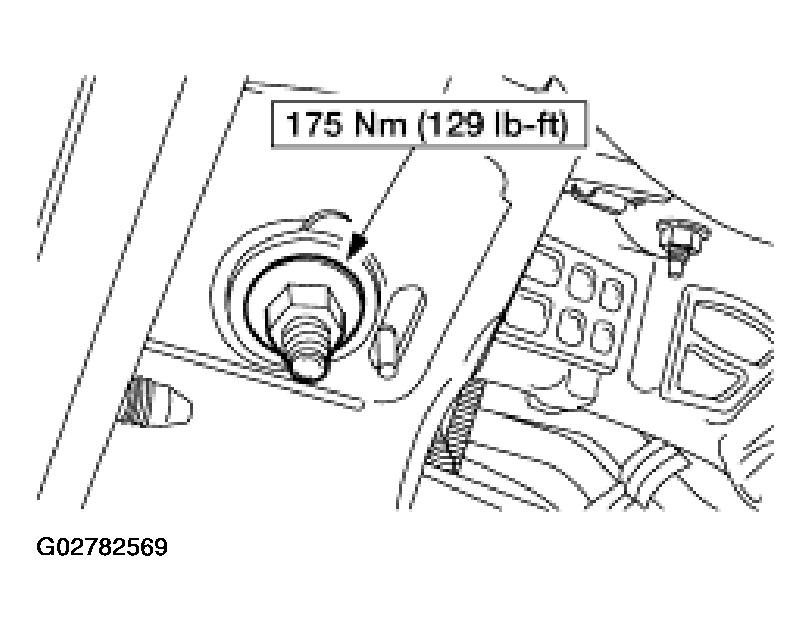

    Fig 7: Installing RH Engine Mount Nut
    G02782569Courtesy of FORD MOTOR CO.
  10. Install the RH engine mount nut.
    11. CAUTION: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

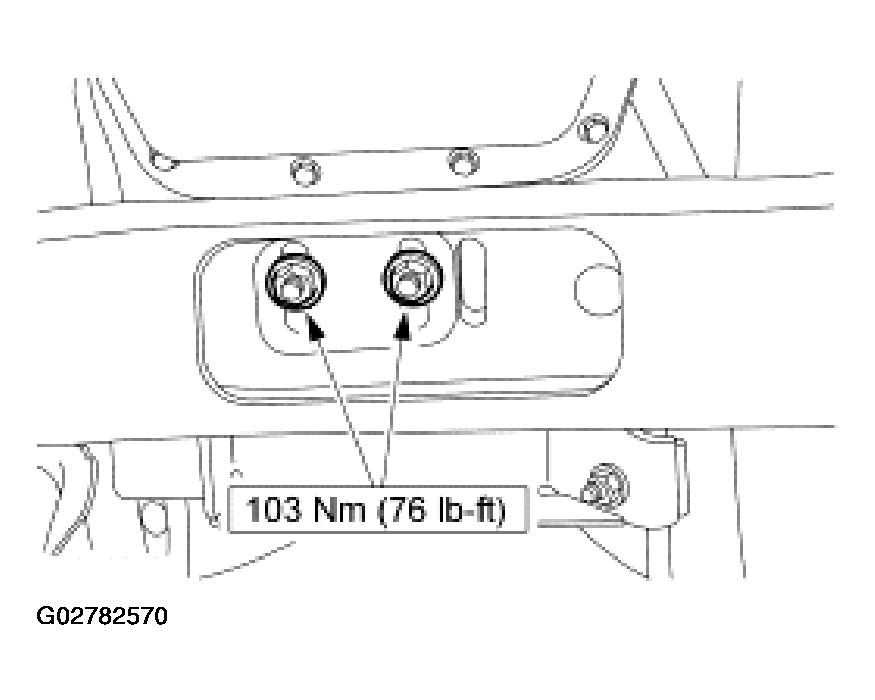

    Fig 8: Installing Transmission Mount-To-Crossmember Nuts
    G02782570Courtesy of FORD MOTOR CO.
  11. Install the transmission mount-to-crossmember nuts.
  12. If equipped, install the vibration damper and the bolts.

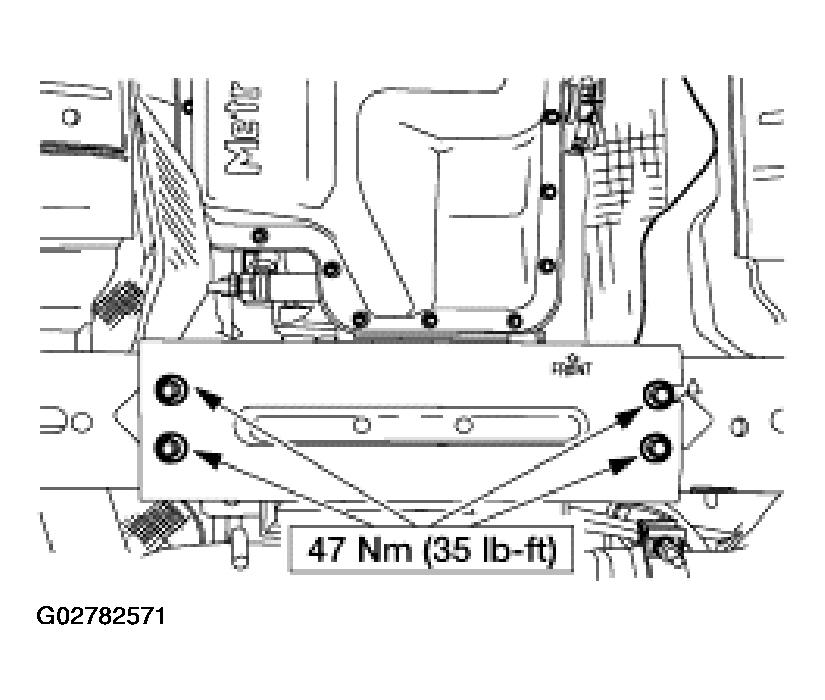

    Fig 9: Installing Vibration Damper And Bolts
    G02782571Courtesy of FORD MOTOR CO.
  13. Position the Y-pipe and install the four nuts.

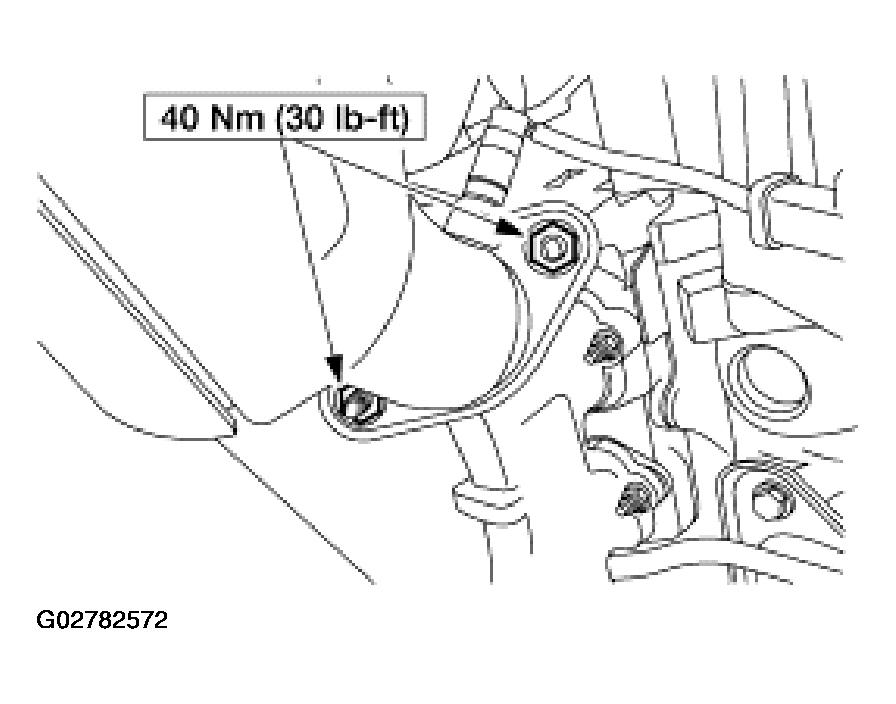

    Fig 10: Installing Nuts
    G02782572Courtesy of FORD MOTOR CO.
  14. If equipped, install the skidplate.

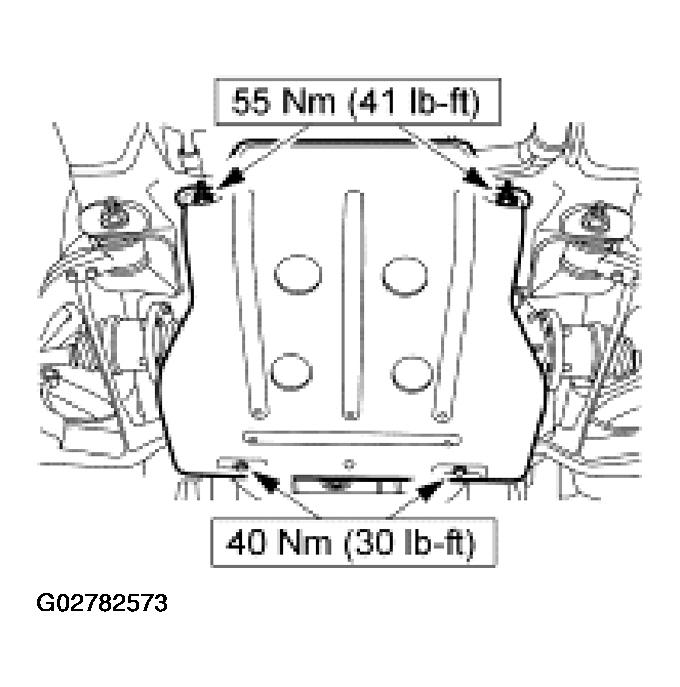

    Fig 11: Installing Skidplate
    G02782573Courtesy of FORD MOTOR CO.
  15. Position the fan shroud and install the bolts.

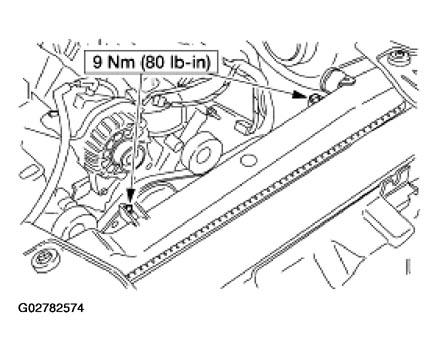

    Fig 12: Installing Bolts
    G02782574Courtesy of FORD MOTOR CO.
  16. Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
  17. Install the generator. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  18. Install the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  19. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
