In-Vehicle Repair: Flexplate: Installation

Position the flexplate and install the bolts in the sequence shown.

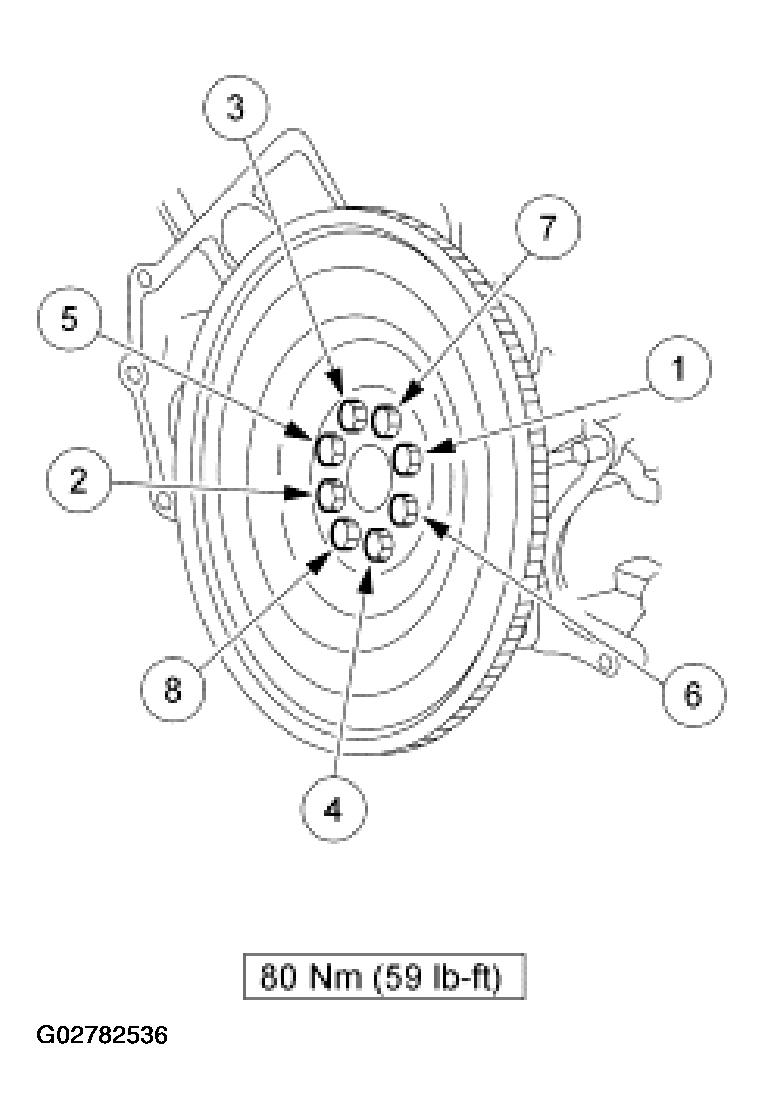

Fig 1: Installing Bolts In Sequence
Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 4R100 .
