Camshaft Runout

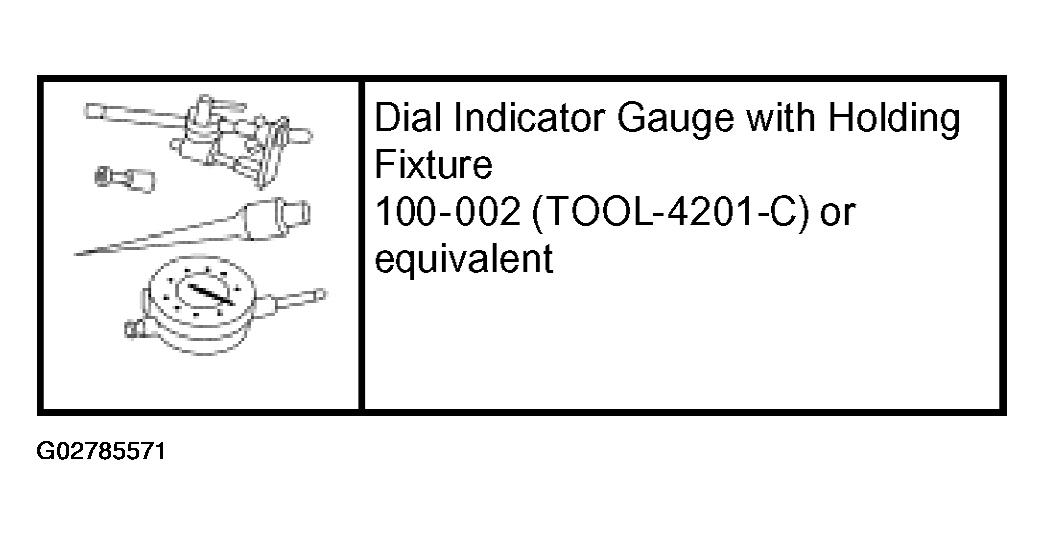

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

NOTE: Camshaft journals must be within specifications before checking runout.

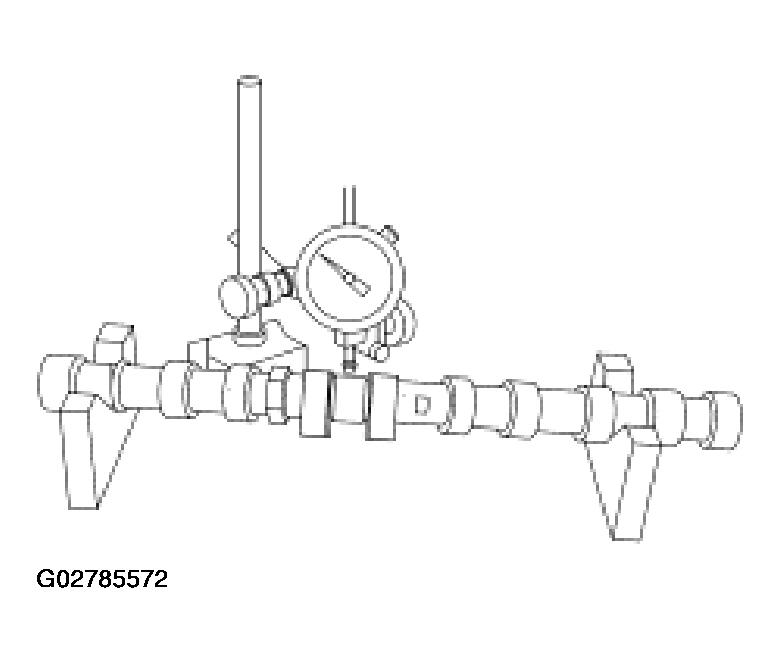

Fig 2: Measuring Camshaft Runout

Courtesy of FORD MOTOR CO.

Use a Dial Indicator Gauge with Holding Fixture to measure the camshaft runout.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.
- For additional information, refer to the specification chart in the appropriate engine section.
- If out of specification, install new components as necessary. Refer to the appropriate article in ENGINES for the procedure.
