Spring Lock Couplings: Connect

  1. To connect the fittings, reverse the disconnect procedure.
    • Inspect and clean both the coupling ends.
    • Lubricate the O-rings with clean engine oil.

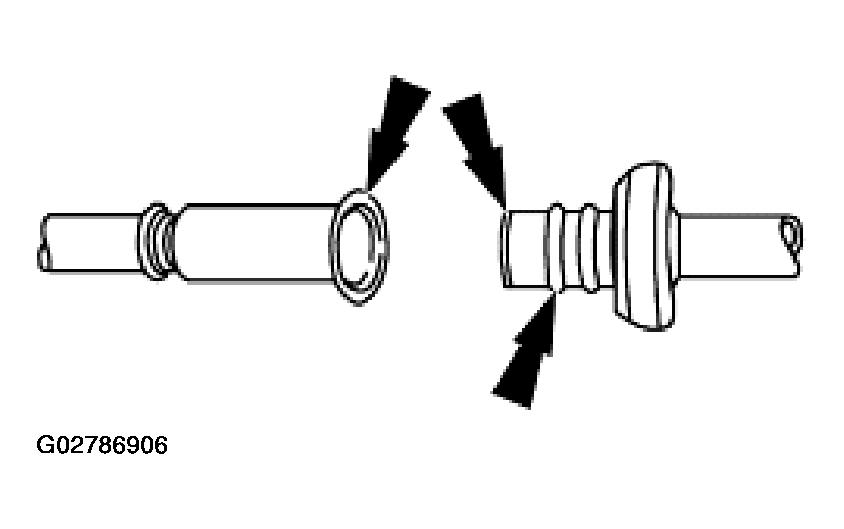

    Fig 1: Inspecting And Cleaning Both Coupling Ends
    G02786906Courtesy of FORD MOTOR CO.
