Removal and Installation

  1. Disconnect the battery ground cable.
  2. Disconnect the powertrain control module (PCM) electrical connectors.

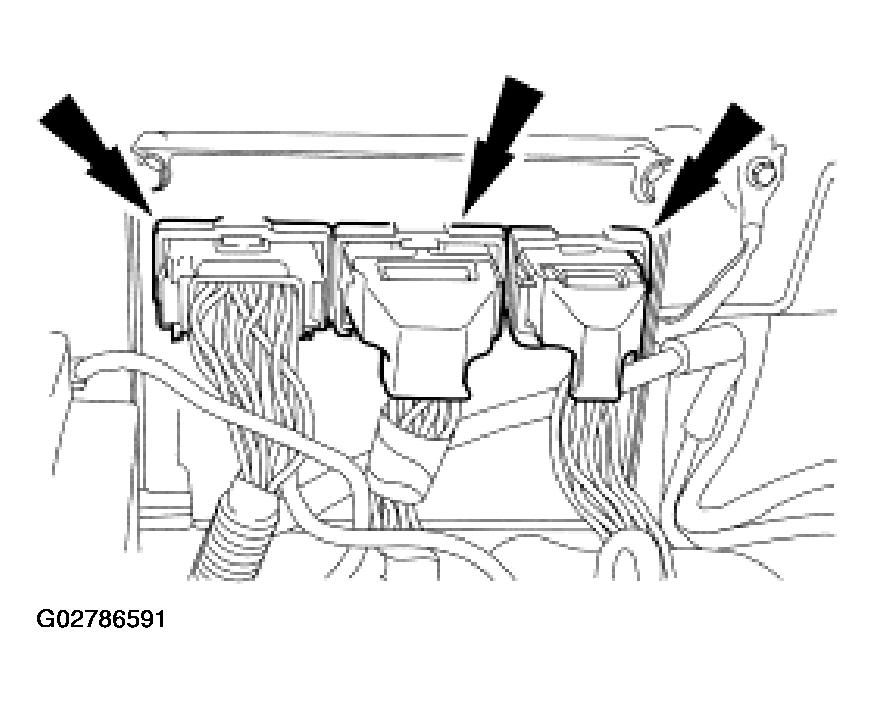

    Fig 1: Disconnecting Powertrain Control Module (PCM) Electrical Connectors
    G02786591Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the PCM.

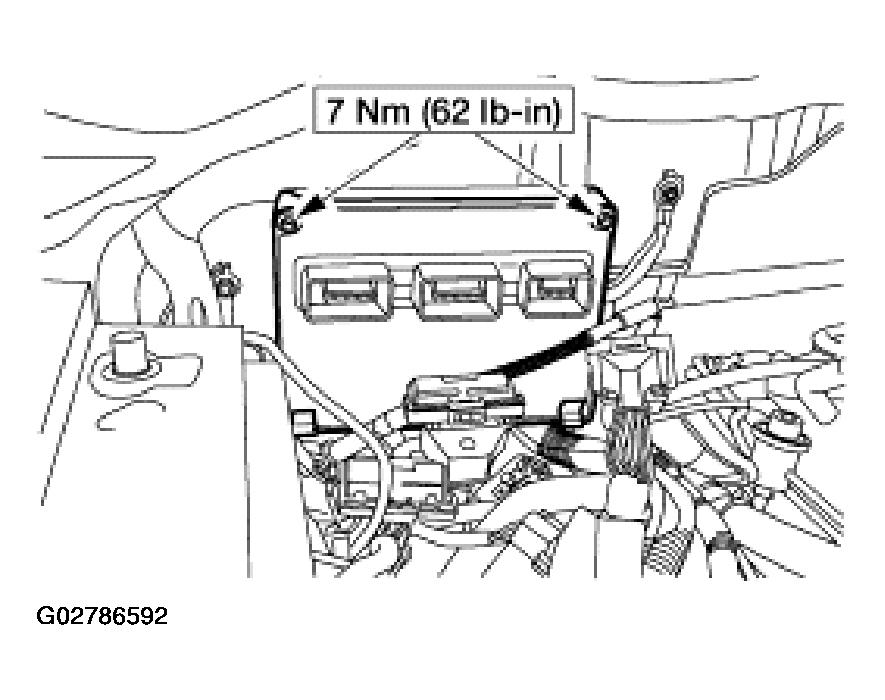

    Fig 2: Removing Bolts And PCM
    G02786592Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
