Control Components
›
Control System Outputs - Manual Climate Control
›
Plenum Chamber Control Components - DATC
Plenum Chamber Control Components - DATC

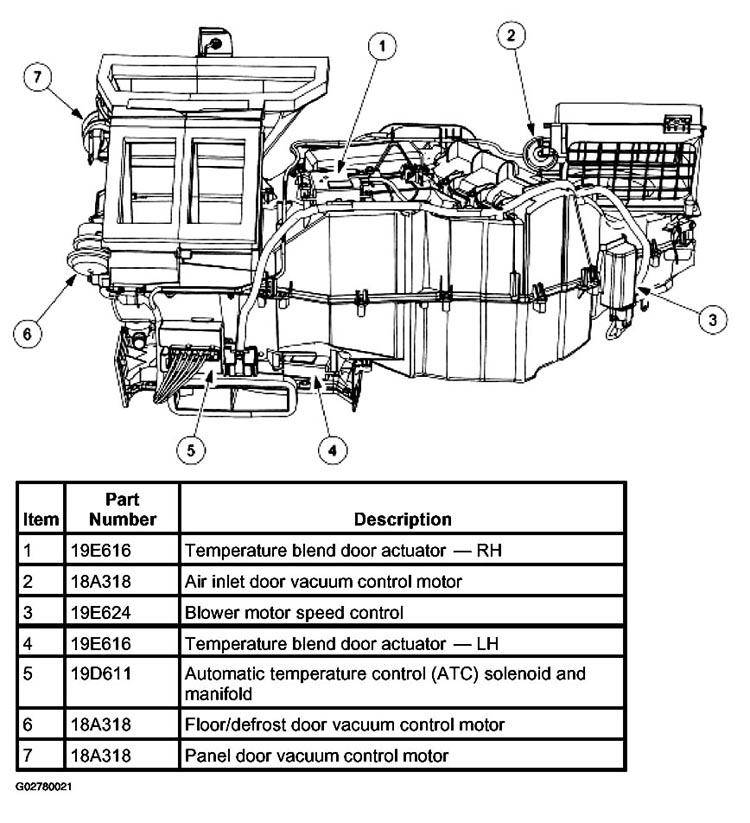

Fig 1: Identifying Plenum Chamber Control Components And Description Chart (DATC)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
