Cable and Bracket Adjustment - Floor Shift

Place the gearshift lever in the (D) position.
With the vehicle in NEUTRAL, position the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the transmission shift cable from the manual control lever.

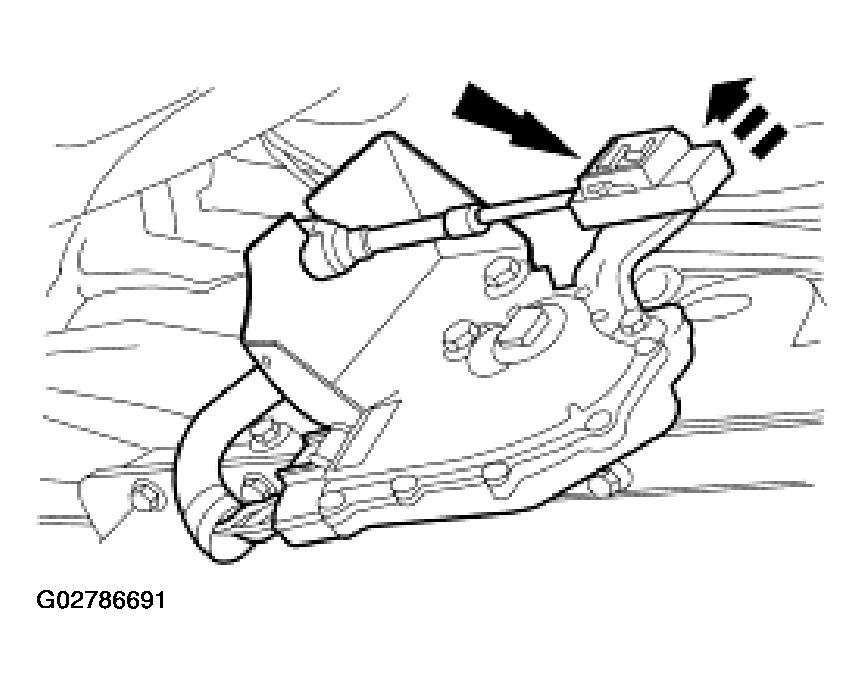

Fig 1: Disconnecting Transmission Shift Cable From Manual Control Lever
Courtesy of FORD MOTOR CO.
Unlock the lock tab on the transmission shift cable.

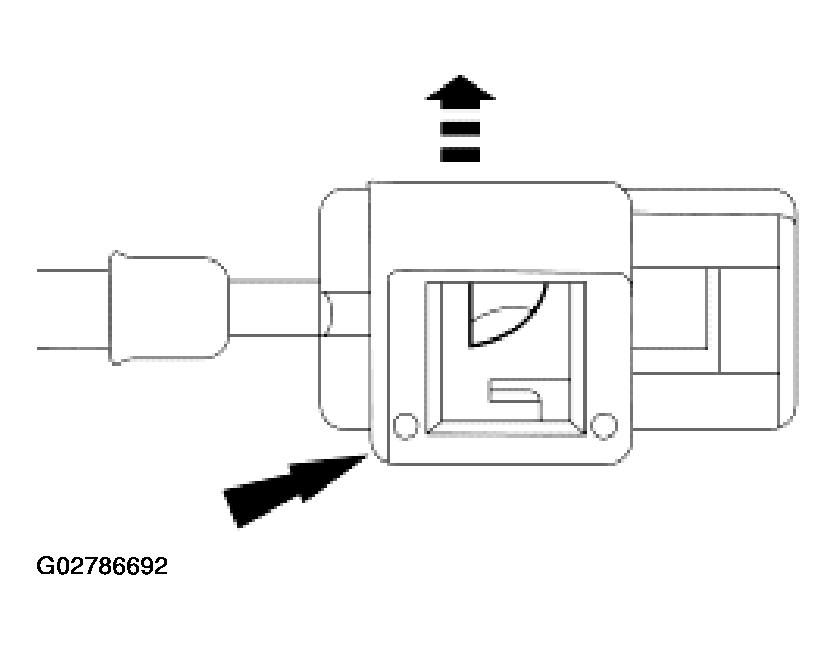

Fig 2: Unlocking Lock Tab On Transmission Shift Cable
Courtesy of FORD MOTOR CO.
Place the manual control lever in the (D) position.
1. Place the manual control lever in the first gear position.
2. Move the manual control lever two detents to the (D) position.

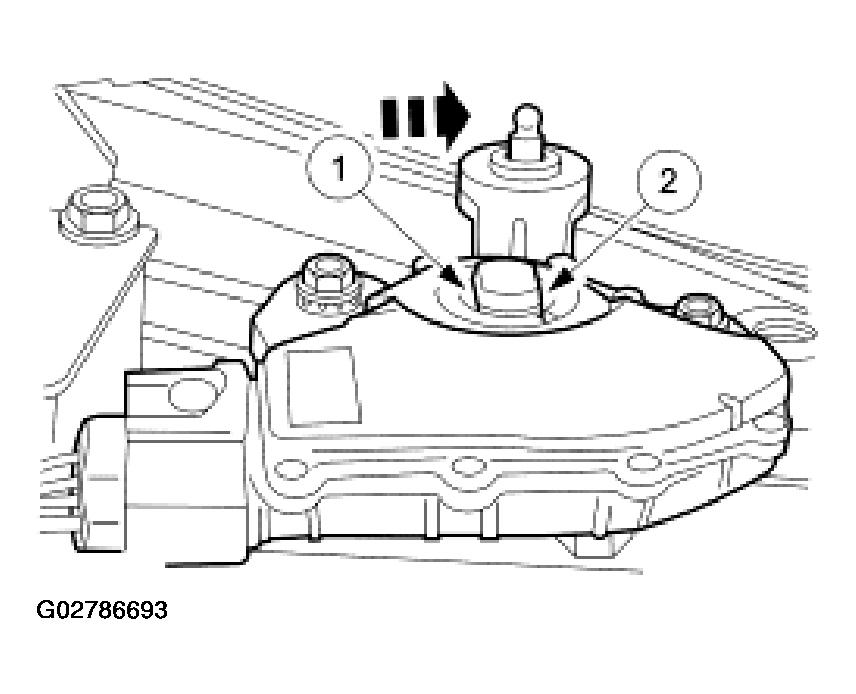

Fig 3: Placing Manual Control Lever In (D) Position
Courtesy of FORD MOTOR CO.
Connect the transmission shift cable to the manual control lever.

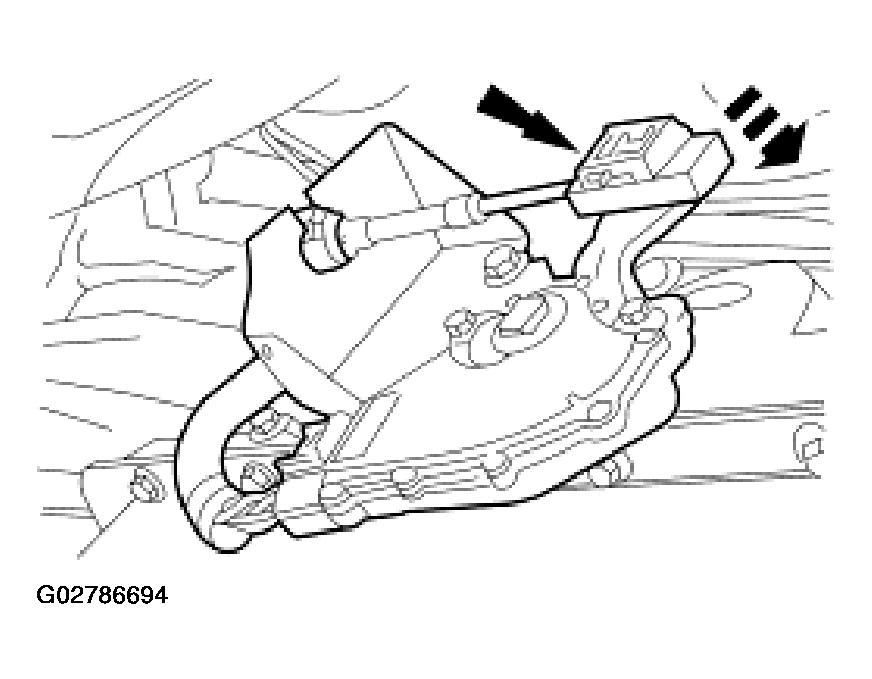

Fig 4: Connecting Transmission Shift Cable To Manual Control Lever
Courtesy of FORD MOTOR CO.
Lock the transmission shift cable lock tab.

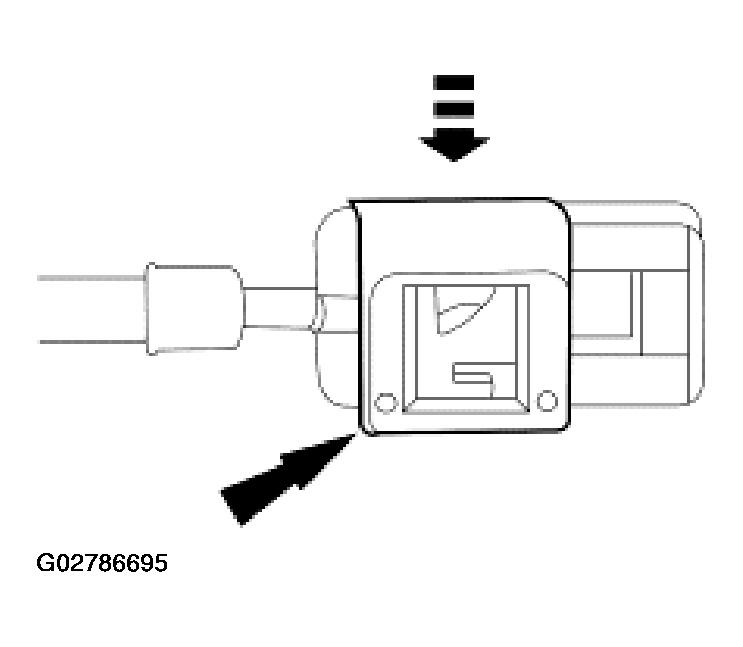

Fig 5: Locking Transmission Shift Cable Lock Tab
Courtesy of FORD MOTOR CO.
Carefully move the manual control lever from detent to detent and compare with transmission settings. Verify that the vehicle will start in PARK or NEUTRAL and backup lamps illuminate in REVERSE. If not, Steps 1-5 must be repeated. Carry out the digital transmission range (TR) sensor adjustment. For additional information, refer to AUTOMATIC TRANSMISSION - 4R70W .
- Readjust if necessary.
