Forward Drive System Components

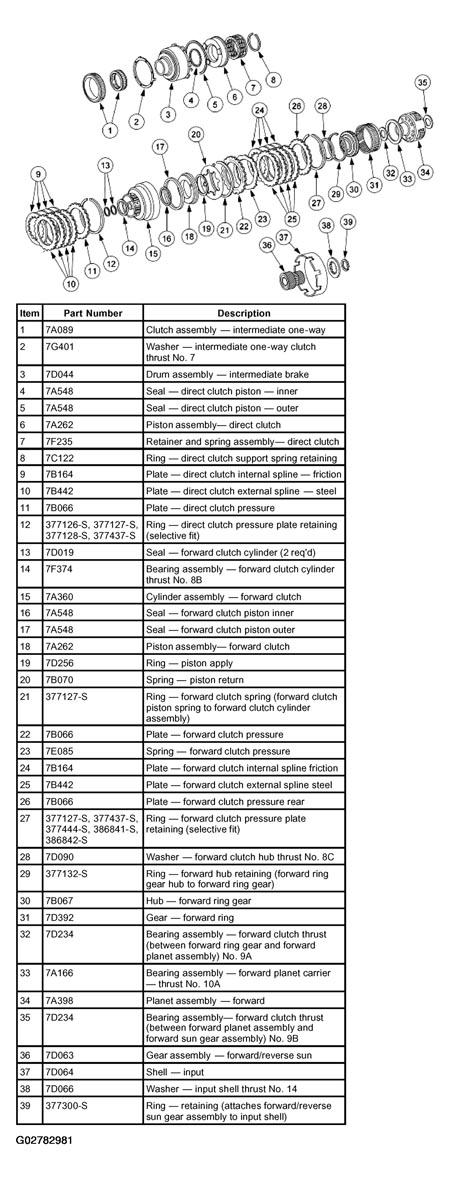

Fig 1: Identifying Forward Drive System Components
G02782981Courtesy of FORD MOTOR CO.
