Intermediate/Overdrive Cylinder Assembly, Disassembled View

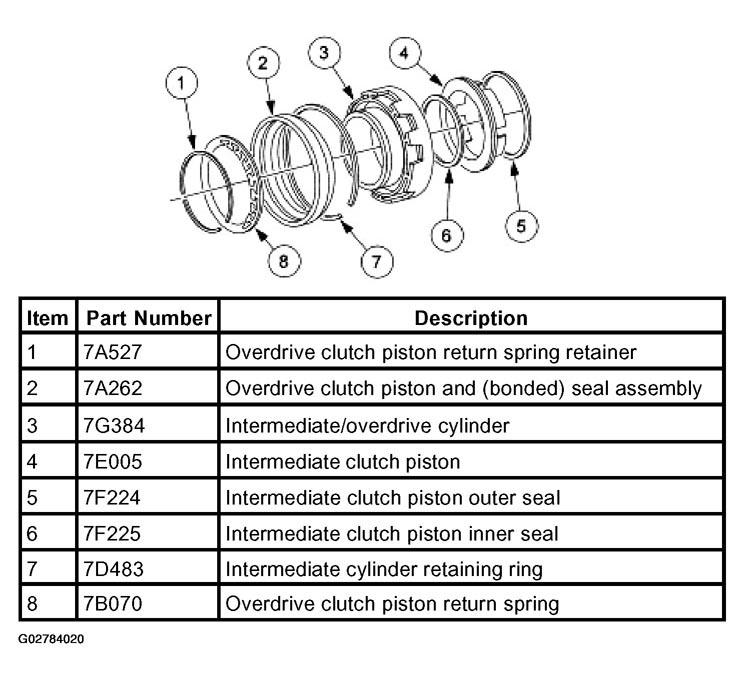

Fig 1: Exploded View Of Intermediate/Overdrive Cylinder Assembly
G02784020Courtesy of FORD MOTOR CO.
